The VA-AS200C can payload 200kg，has completed various actual hoisting operations at different altitudes, in different seasons, and under different mission scenarios, accumulating thousands of takeoffs and landings. It basically meets the construction and maintenance needs of 110kV and below transmission and transformation lines and is widely used in mountainous engineering construction, material transportation, power emergency repair, and tower construction. It is a typical intelligent and mechanized new type of equipment in the power construction scenario.
Key Features of VA-AC200D Drone

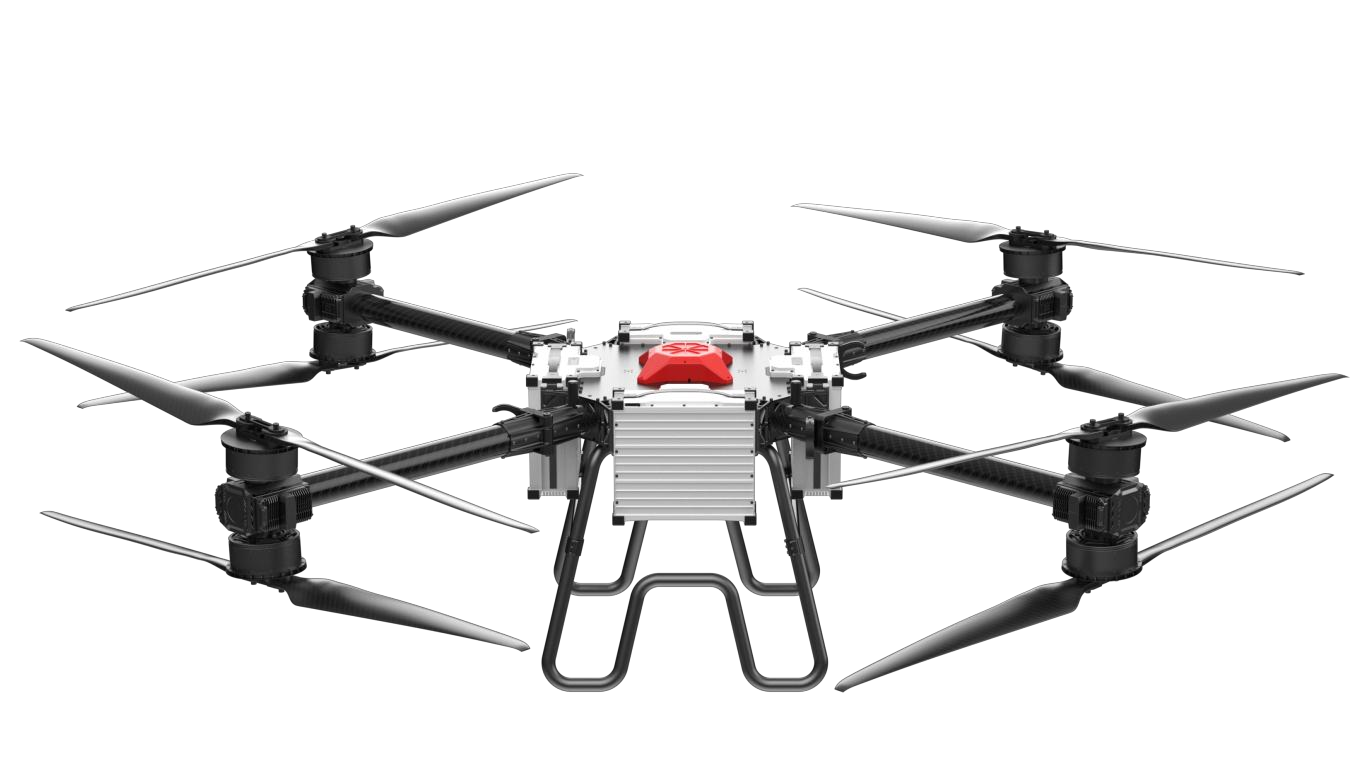

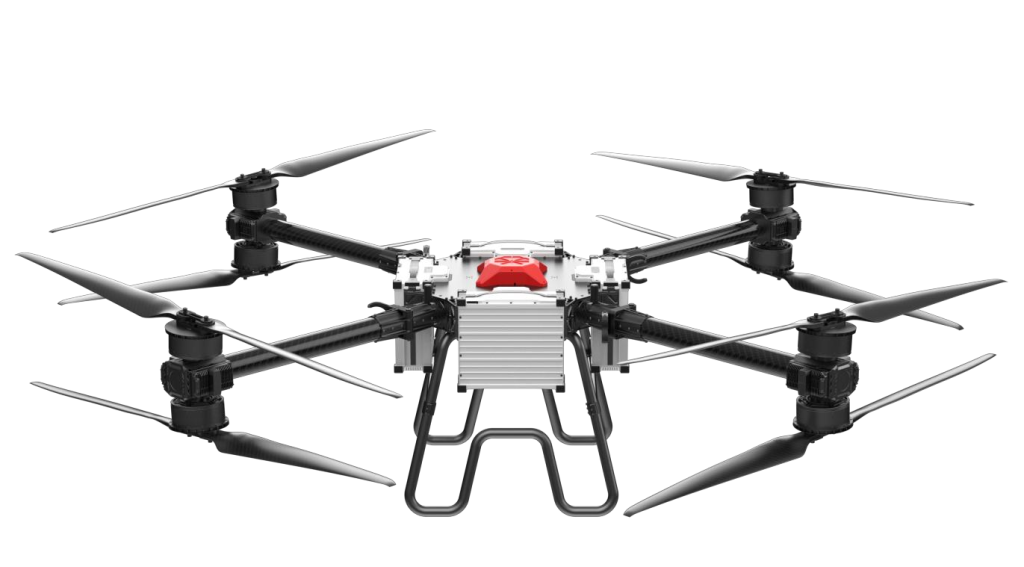

Eight-Axis Sixteen-Wing Design
core power redundancy exceeding 35%
Smart Fast-Charging Battery
Carbon Fiber Fuselage & Propellers
Details
Why Choose VA-AC200D
High Return on Investment（ROI）
With thousands of lifts and landings completed, and over 100 tons of power tower materials, fittings, and base materials transported, the system saves on crane handling costs and saved construction time, enabling rapid cost recovery.

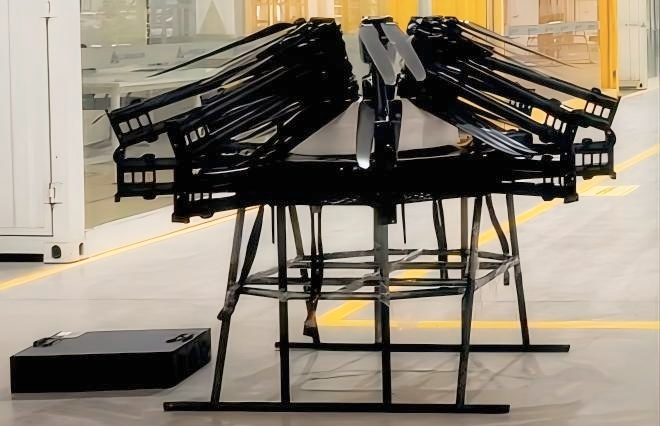

Easy Assembly & Transportation
Foldable storage saves space, reducing transportation costs, allowing for quick deployment, shortening debugging time, and improving work efficiency.

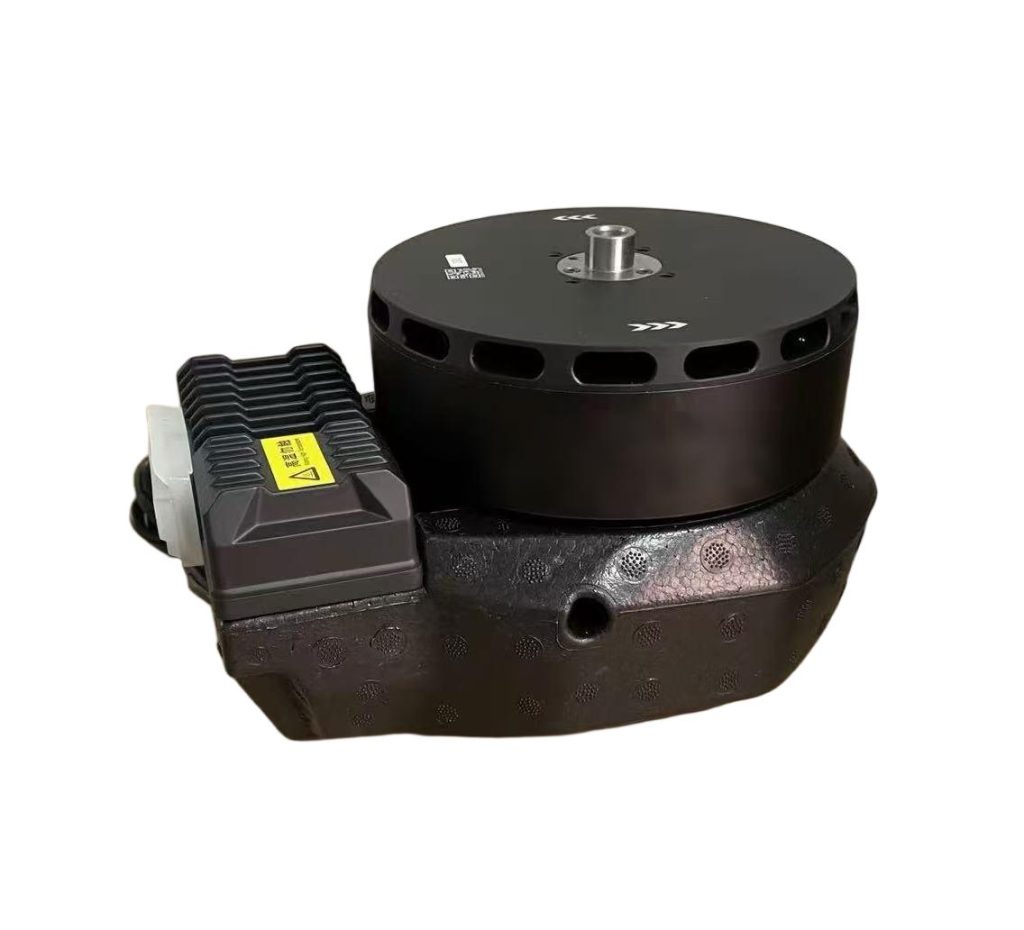

Core motor power redundancy exceeding 35%
The independently developed high-power motor boasts a power redundancy exceeding 35%, ensuring undiminished power even in mountainous areas with no signal.
Strong Environmental Adaptability
The aerial crane has successfully completed lifting operations at over ten different altitudes (from sea level to 5500 meters), in different seasons (spring, summer, and autumn), and in different mission scenarios (maximum height difference of 700 meters, maximum horizontal distance of 5km).
Important Parameters
| Unfolded Dimensions (Operating) | 2200*2200*860mm | Operating Ambient Temperature | -10~45℃ (Battery insulation) |
| Maximum wheelbase | 2800mm | Waterproof Rating | IPX3 |
| Folded Dimensions (Transportation) | 1100*1100*860mm | Maximum Operating Altitude | 2500 meters |
| Aircraft Structure | Quadcopter (Octoscopter) | Operating Voltage Range | 92.4V-117.6V |
| Maximum Takeoff Weight | ≯ 320kg | Effective Battery Capacity | 12 kWh/set (Quad-battery mode) |
| Rated Payload (Sea Level) | 200kg (Dual-battery mode) 150kg (Quad-battery mode) | Battery Cycle Life | ≥650 cycles (80%) |
| Empty Weight (Excluding Battery) | ≯ 90kg | Battery Weight | 20kg/piece |
| Maximum Hovering Time (Empty) | 25 minutes | Charging Operating Temperature | 5~68℃ |
| Regular Operating Time | 12 minutes | Discharging Operating Temperature | -20℃~90℃ |
| Maximum Single-Shaft Pull Force | 80kgf (Sea level) | Battery & Ground Station Protection Rating | IP54 |
| Navigation and Positioning System | GPS+BDS+GLONASS+GALILEO | Ground Station Remote Control Distance | 15KM (Line of sight) |
| Wind Resistance Rating | Level 5 (<10.8m/s) | Image Transmission | 4K High-definition digital image transmission |
| Maximum Climb/Climb Rate | ±8m/s | Ground Station Display Screen | 7-inch high-brightness screen |
| Maximum Horizontal Speed | 15m/s | Ground Station Range | 8 hours of operation |
Actual Case
In mountainous area renovation projects, VA-AC200D provides heavy-duty drone rental services to customers. VastArrive’s drones operate stably for 45 days (non-continuously), effectively assisting in project construction, improving construction efficiency, and reducing manpower input and safety risks associated with traditional construction methods.
UAV System Composition

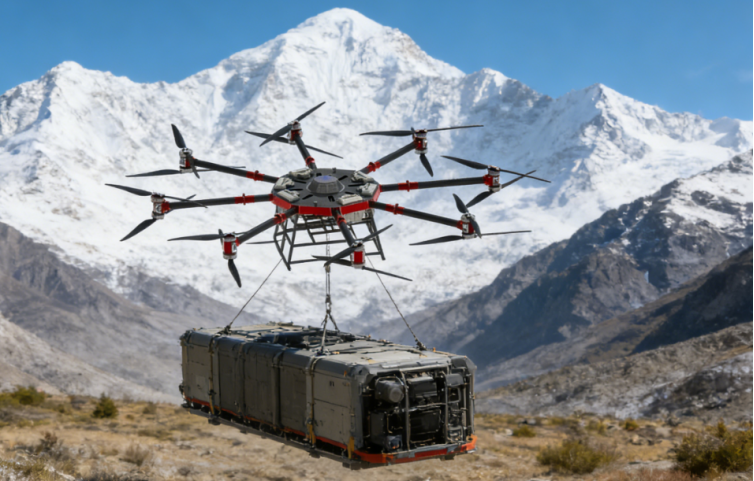

Transport Drones

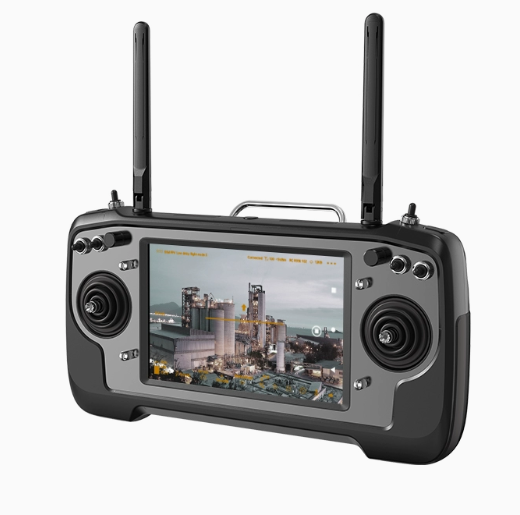

Remote Controller
Smart Battery

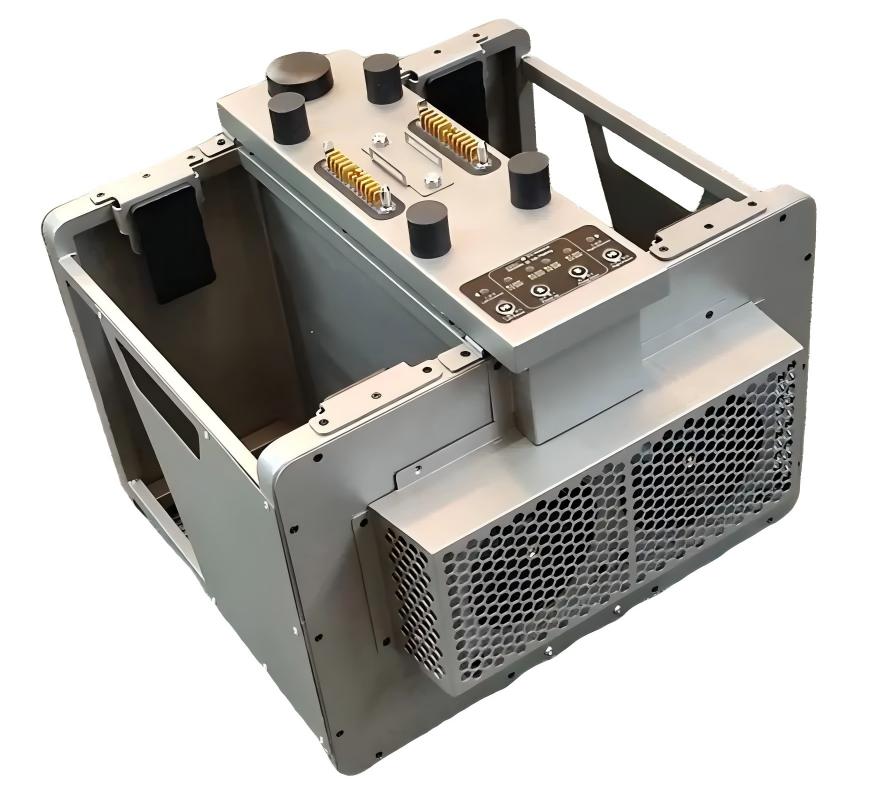

Smart Charger

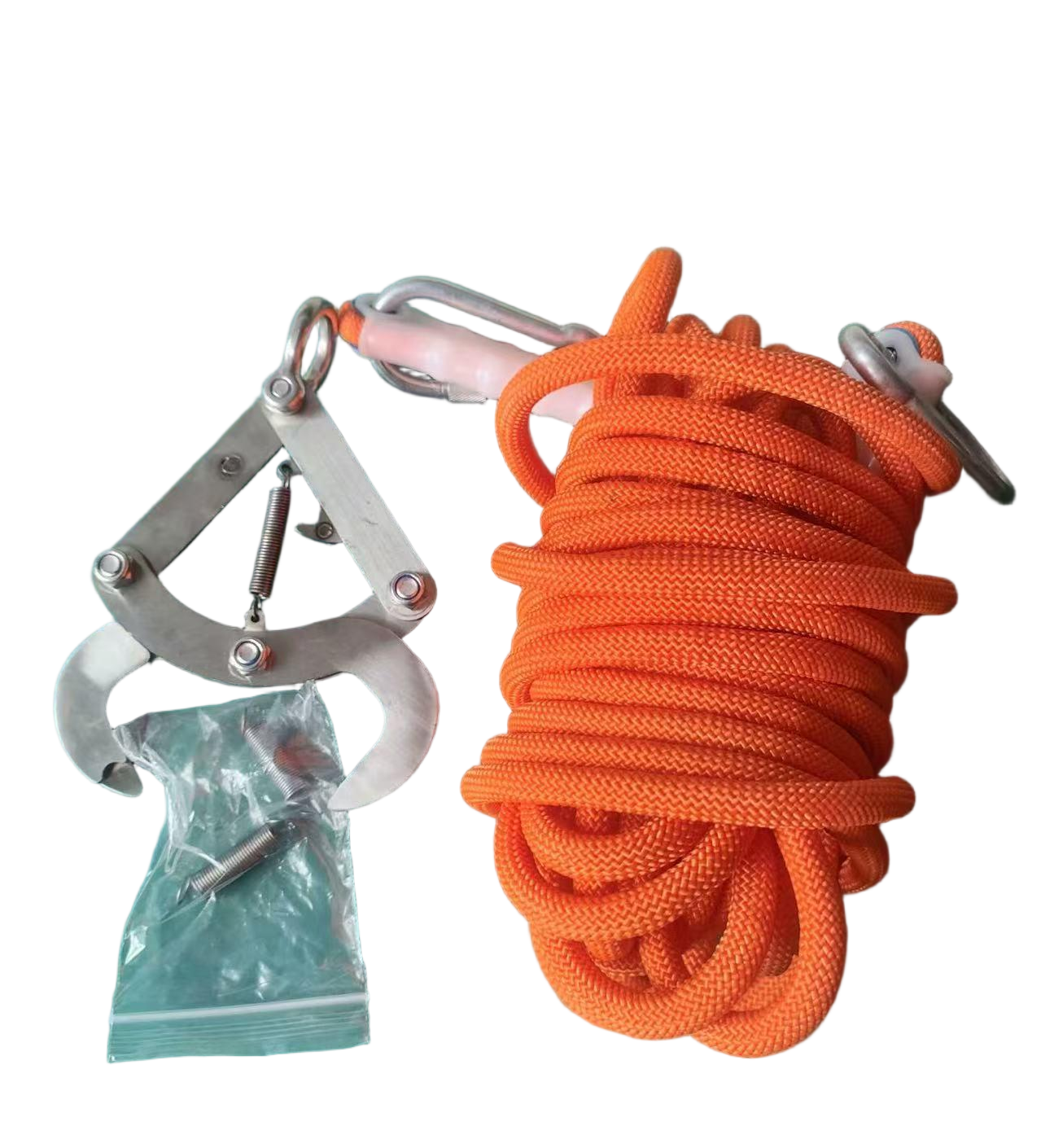

Unscrewer + Sling
Hear What Our Customer Says

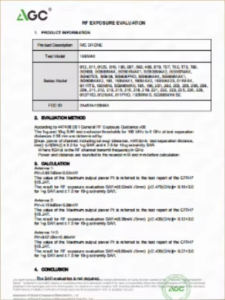

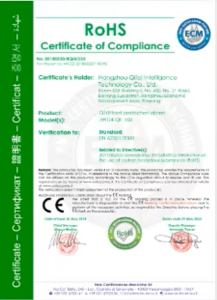

Certification
Professional Technical Support
We are committed to ensuring every customer receives timely and professional technical support. Our engineers can provide remote product installation guidance, software updates, and drone flight technical support. Customers can also arrange for in-person training at our factory.
Customizable for diverse application scenarios
Complete drone flight training
Online support from a team of professional after-sales engineers
Comprehensive IT documentation support
Regional distributor and partner support
