Cleaning Drones
The modular design of the cleaning drone allows it to be adapted to two different cleaning mounts. It features adjustable-angle and oscillating nozzles, with four different nozzle angle designs to meet diverse cleaning needs. It provides the industry with a convenient, efficient, and multi-scenario applicable aerial high-pressure cleaning solution, which can be widely used in high-altitude cleaning scenarios such as building exteriors, photovoltaic panels, and high towers.
Current Status & Pain Points of the Cleaning Industry
Currently, manual cleaning (using scaffolding and suspended platforms) remains the primary cleaning method. The industry is characterized by its small size, large number, and diverse operations, leading to a chaotic business model with varying quality. There is even sharing of “exterior wall cleaning qualifications” and “Spider-Man” techniques, presenting numerous challenges.
Operational Risks

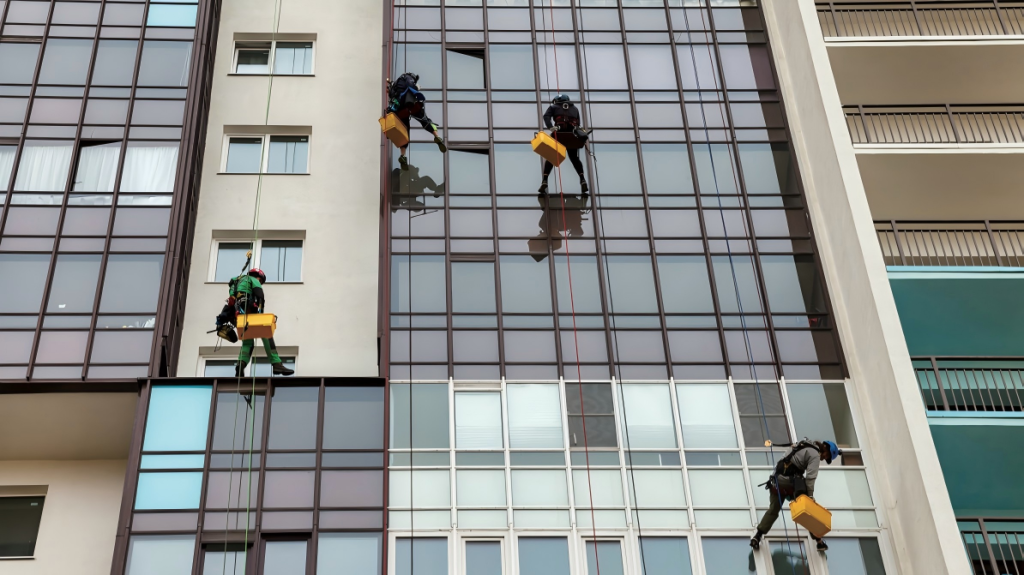

Traditional manual high-altitude cleaning requires workers to use scaffolding or suspended platforms, posing extremely high safety risks, especially in adverse weather conditions.
Poor Operational Flexibility
Fixed-track equipment and some automated equipment can only cover specific areas, making it difficult to adapt to various complex building exterior structures, resulting in poor flexibility.
Low Cleaning Efficiency
Manual cleaning is slow, making it difficult to complete large-area exterior wall cleaning tasks in a short time, impacting overall work efficiency. Manual cleaning also suffers from high-risk work conditions for cleaners and insufficient cleaning intensity in the past.
High Costs
High-altitude cleaning requires significant manpower and time, leading to high costs. Automated cleaning equipment has high purchase and maintenance costs, and its installation and operation are complex, resulting in high overall costs.
Key Features of VastArrive Drones in Cleaning
High efficiency – 1000m²/h High-Pressure Rapid Cleaning, Supports Uninterrupted Water Supply
The water tank is located on the ground and can supply water continuously. Water filling is convenient and quick. High-pressure cleaning significantly reduces the time required for cleaning large-area exterior walls and improves work efficiency.

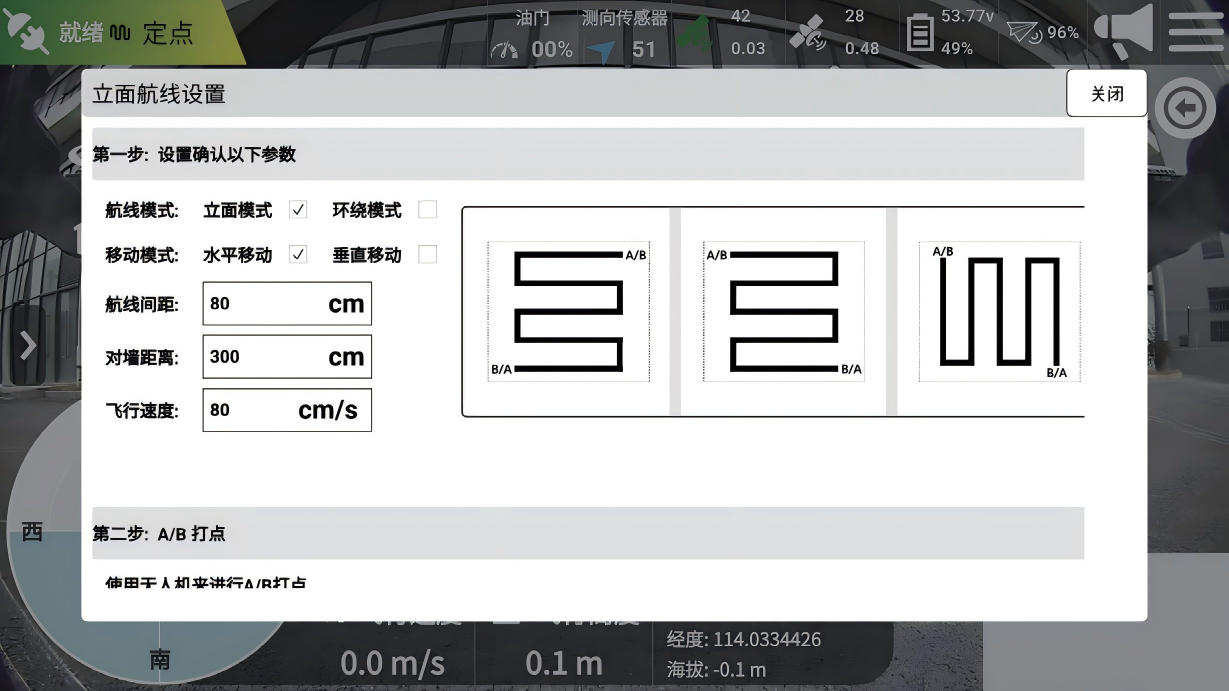

Intelligent – Intelligent Route Planning
Route planning is set for different cleaning scenarios to enable autonomous operation, improve the equipment’s applicability to multiple scenarios, and greatly enhance the working efficiency and flexibility of cleaning drones.

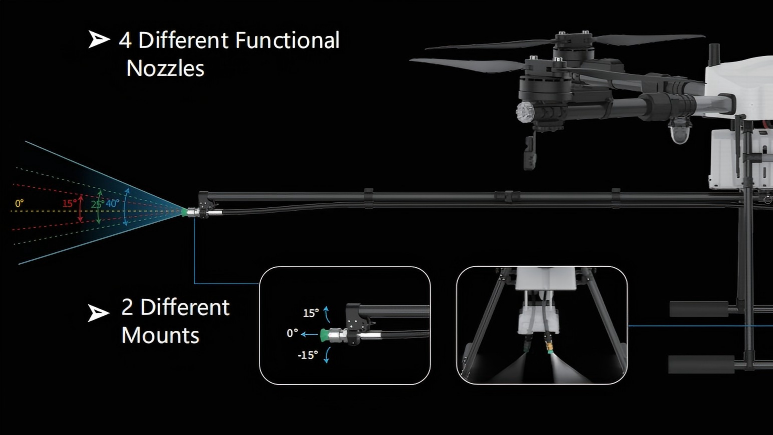

Modular Design – 2 Types of Nozzles, 4 Types of Spray Heads

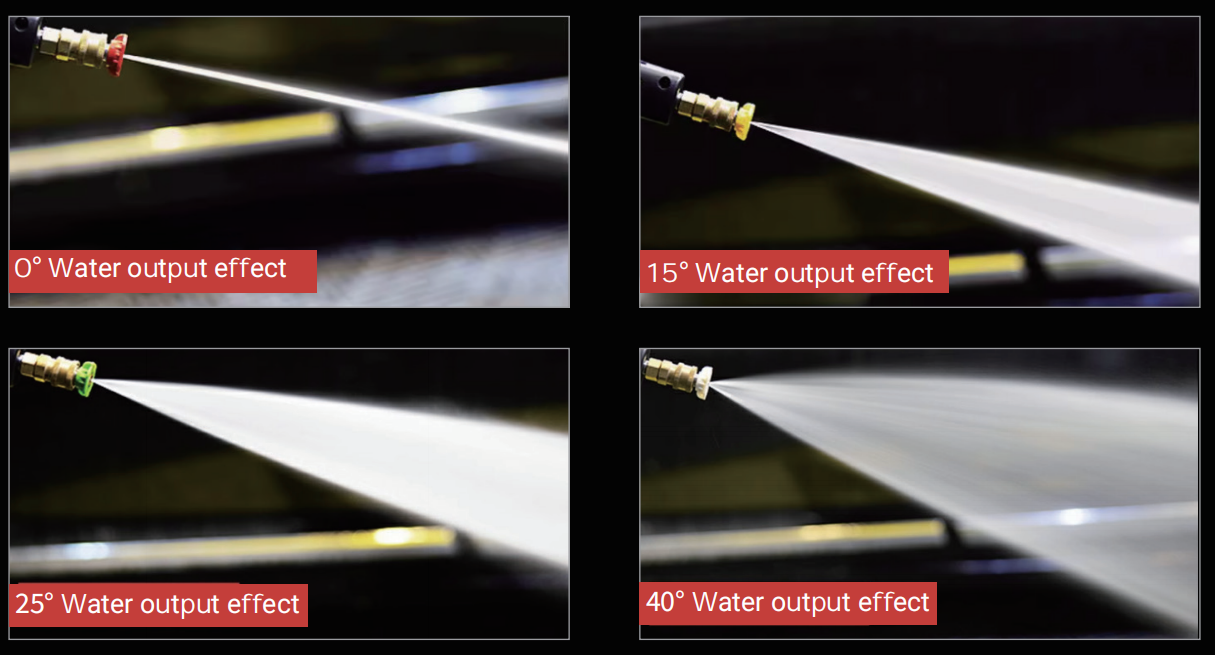

It can be adapted to two different cleaning mounts, with adjustable angle and swing nozzles, and comes with 4 tool-free quick-install nozzles. You can switch freely from 4 different angles to achieve the best cleaning effect for different stains.
Safe and stable – Dual RTK Centimeter-level Positioning
No manual cleaning required, eliminating the risks of working at heights; dual RTK configuration provides real-time centimeter-level positioning data for precise cleaning of the task area.

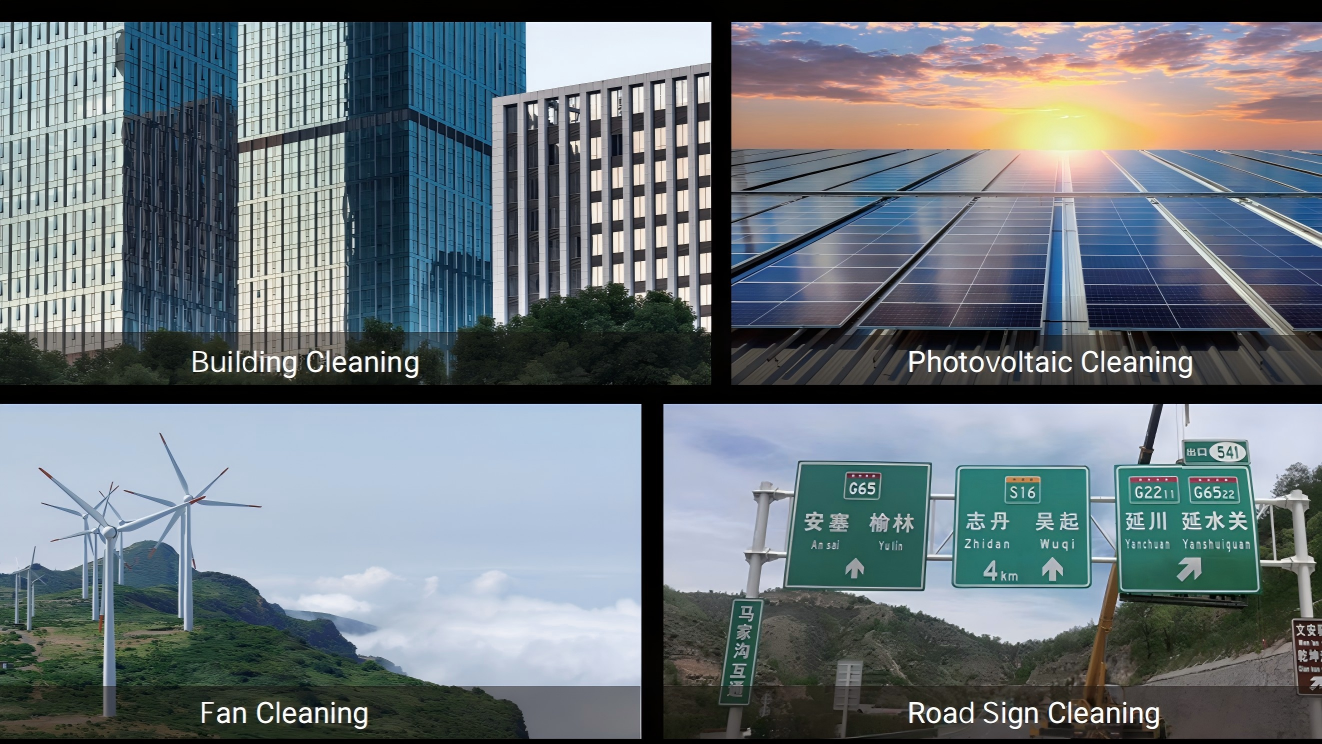

Multi-scenario Operation
Convenient, efficient, and applicable to multiple scenarios, the aerial high-pressure cleaning solution is widely used in high-altitude cleaning scenarios such as building exteriors, irregularly shaped buildings, photovoltaic panels, high towers, wind turbines, and road signs.

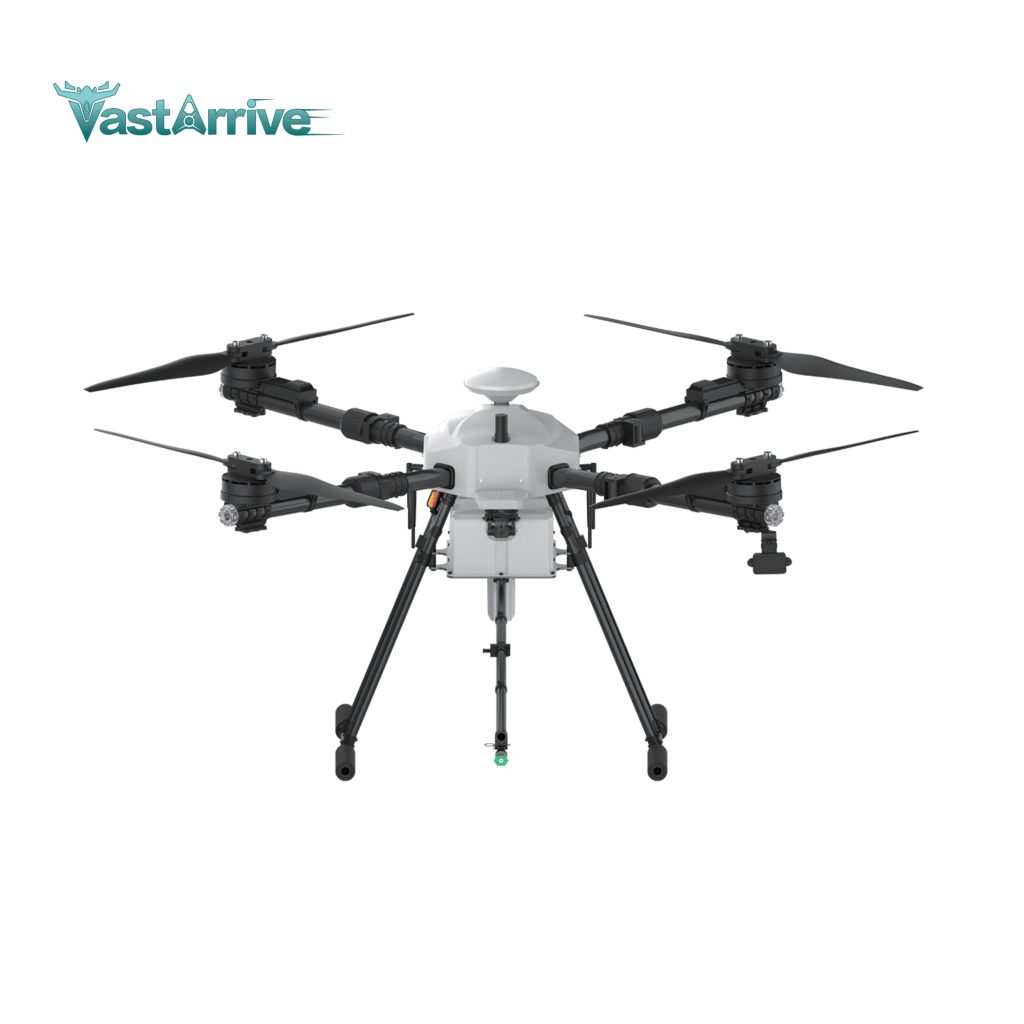

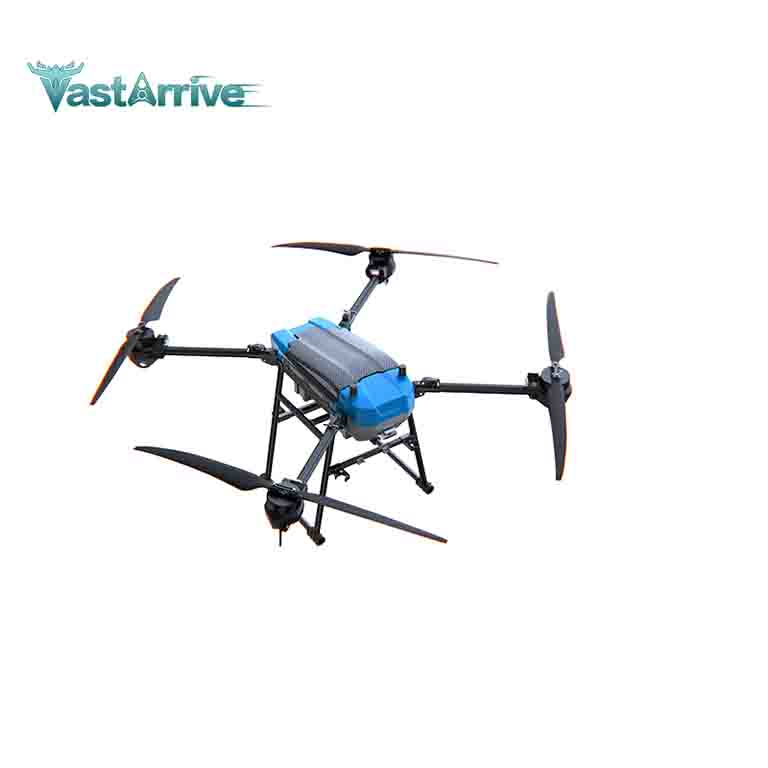

Brief Comparison of Our Cleaning Drones
| Parameters | VA-D15R | VA-D50R | Core Impact |
| Location Scenarios | Facade/High-altitude operations for curtain walls, small and medium-sized photovoltaic systems, insulators, wind turbines, etc. | Large-scale ground-mounted PV, mountain/fishery-solar hybrid PV, industrial and commercial rooftop PV | Mismatched application scenarios can lead to low efficiency or high costs. |
| Water Load/Flow Rate | 15L/min, continuous operation with tethered water supply | 50L water load capacity, supports three cleaning methods: multi-nozzle/oscillating/direct spray | VA-D50R offers larger coverage area per operation, suitable for large-scale continuous work. |
| Cleaning Efficiency | Shallow cleaning: 1000㎡/h Deep cleaning: 500㎡/h | Standard operating condition: 690㎡/h | For shallow cleaning, VA-D15R is higher. For standard operating conditions, VA-D50R is higher. |
| Body and Load Capacity | Lightweight carbon fiber, 13kg without battery, 22kg with battery, Max take-off weight 24.9kg | Larger body, adaptable to 50L water load capacity, stronger terrain adaptability | VA-D15R is portable and easy to deploy, while the D50R is suitable for complex terrain. |
| Location and Obstacle Avoidance | Dual RTK + wall-following radar, suitable for precise hovering on facades | Dual redundant RTK + ground-following radar, automatically identifies terrain undulations | VA-D50R is better suited for uneven terrain such as mountains and deserts. |
| Operating Height | Up to 120 meters, suitable for high-rise building exteriors | No explicit height limit, primarily for ground-mounted/rooftop PV | Choose VA-D15R for curtain wall cleaning and VA-D50R for ground-mounted photovoltaics. |
| Deployment and Portability | Modular quick-release, 1-minute deployment, single-person operation | Requires teamwork, suitable for long-term operation in fixed locations | Choose VA-D15R for small projects/frequent site relocations and VA-D50R for large projects. |
Boost cleaning efficiency and reduce high-rise risks — Discover our drone cleaning solution now
Drone Cleaning Process Demonstration

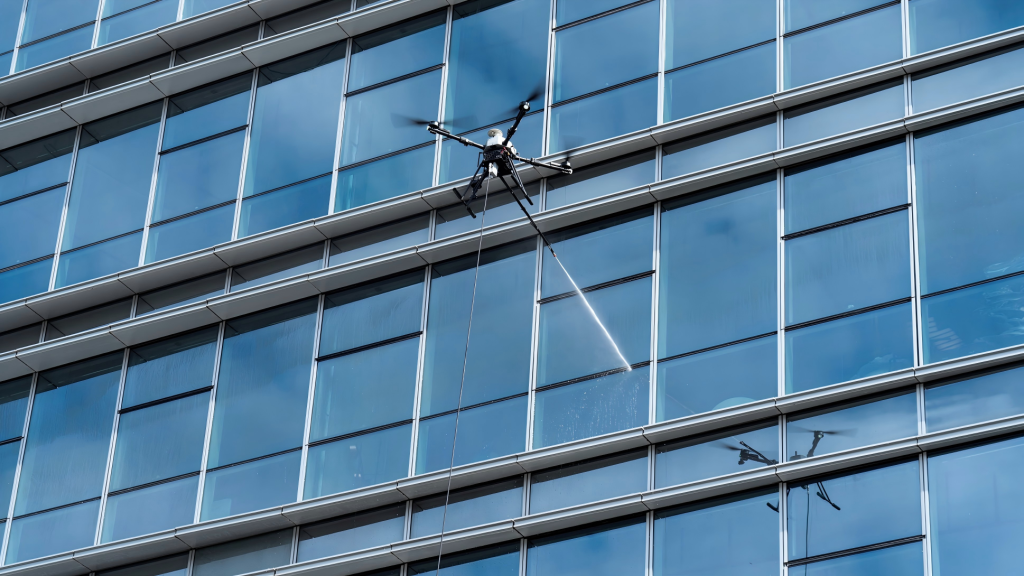

See Our Drone Cleaning in Action
Watch how our advanced drones handle high-rise window cleaning safely and efficiently. From setup to spotless finish, every step is automated for precision and speed.
Cleaning Drone VS Traditional Manual
The VastArrive drone-based high-altitude cleaning solution offers significant advantages in safety, efficiency, and cost compared to traditional manual methods.
| Indicators | VA-D15R Drone Aerial Cleaning System | Traditional Manual Cleaning Methods | |||
| Safety | Drone operation replaces manual high-altitude work, greatly reducing risks | Manual cleaning poses safety hazards such as falls from heights | |||
| Cleaning Efficiency | 17m²/min, high-pressure rapid cleaning, supports uninterrupted operation | Slow cleaning speed and long operation time | |||
| Cost | One-time equipment investment, low long-term operating costs | High labor costs, requiring a large investment of manpower and time each time | |||
| Cleaning Effectiveness | 20MPa high-pressure cleaning, combined with professional cleaning agents, thoroughly removes stubborn stains and mold | Difficult to thoroughly clean, affecting the aesthetics of buildings and the lifespan of materials | |||
| Deployment Time | Quick installation, deployment completed within 1 minute | Erecting scaffolding or suspended platforms is time-consuming and labor-intensive | |||
| Operational Flexibility | Two mounting options, four nozzles for multi-angle and multi-scene coverage | Poor flexibility, unable to cover all work areas |
Real Cases of VastArrive Drones in Cleaning

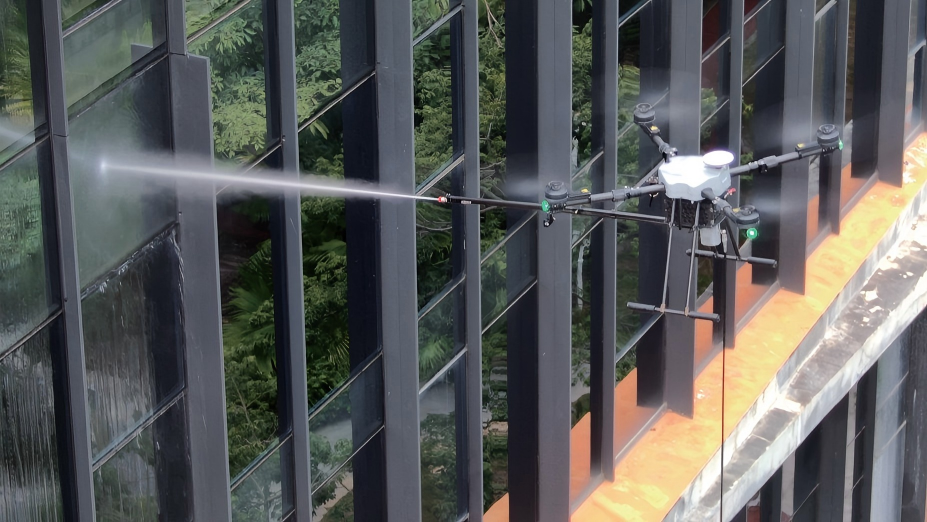

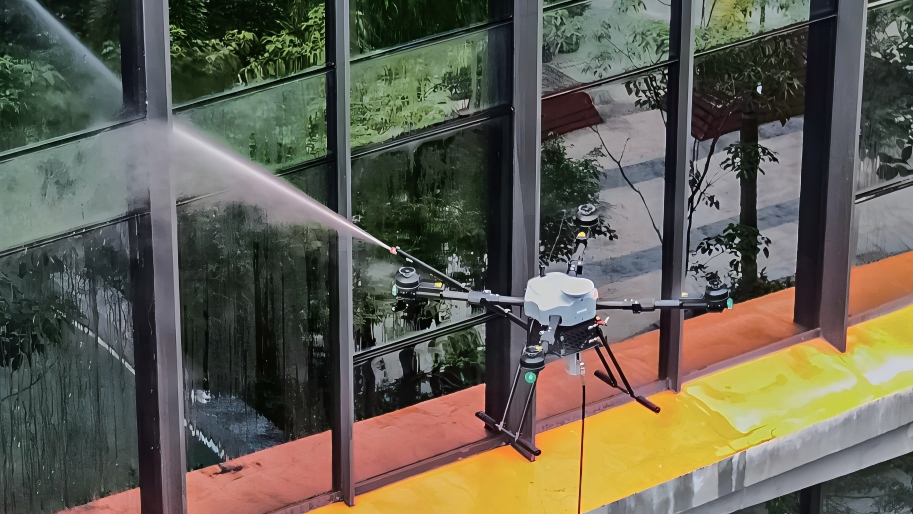

Case 1. Industrial Park Exterior Wall Maintenance
Due to frequent rainy weather in the area, mold and dirt appeared on the exterior walls of the industrial park, affecting its appearance. The complex structure of the high-rise buildings made traditional manual cleaning inefficient and posed significant safety hazards. To maintain a high-end image and tenant satisfaction, the management decided to seek an efficient and safe exterior wall cleaning solution.

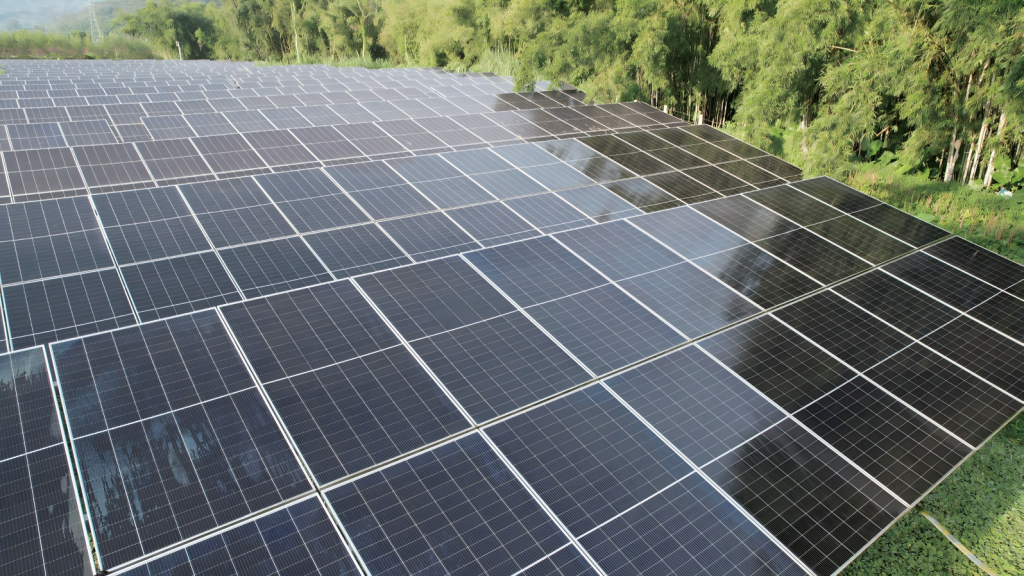

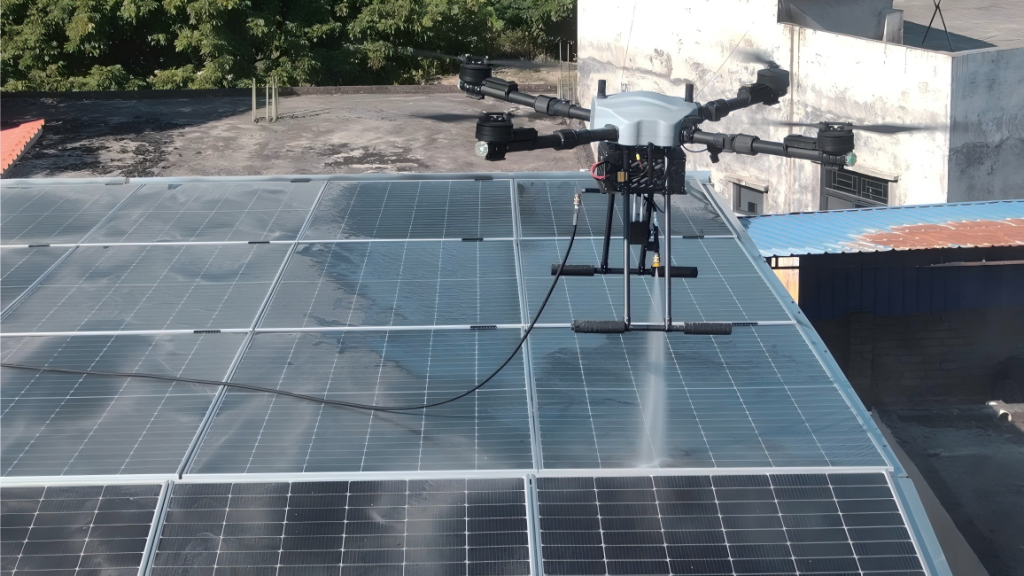

Case 2. Solar Panel Cleaning
Utilizing drones for efficient, flexible, and rapid coverage of large-area photovoltaic panels eliminates the need for manual labor, reducing safety risks. Precise cleaning ensures the photovoltaic panels’ power generation efficiency and saves labor costs.

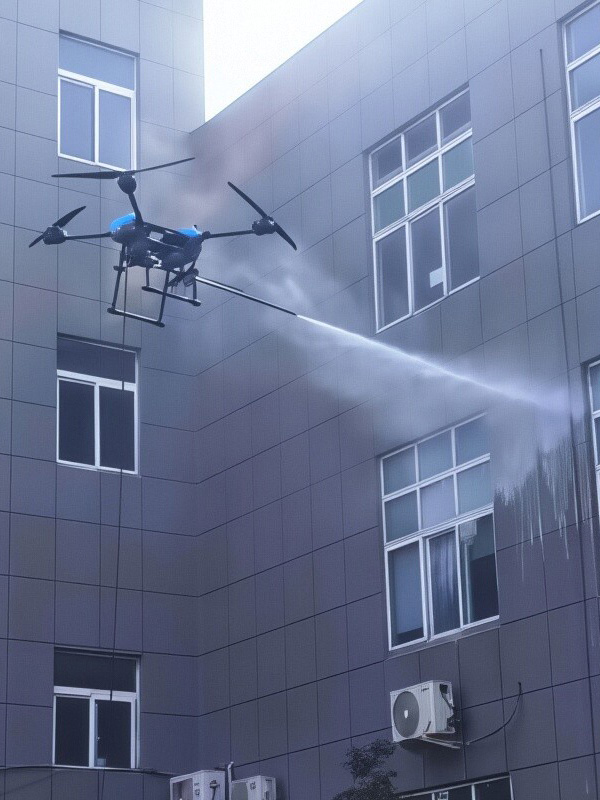

Case 3. Before and After Comparison of VA-B100P Operation for Building Exterior Wall Cleaning
Case 4. VA-D15R Intelligently Plans Flight Paths and Automatically Cleans Building Exteriors
Discover More Solutions of VastArrive Drones
VastArrive drones cover multiple industries, meeting diverse needs and unlocking new possibilities.
FAQs about Cleaning Drones
Contact for More Information
Focus on quickly responding to your needs and customizing exclusive services from a professional perspective
