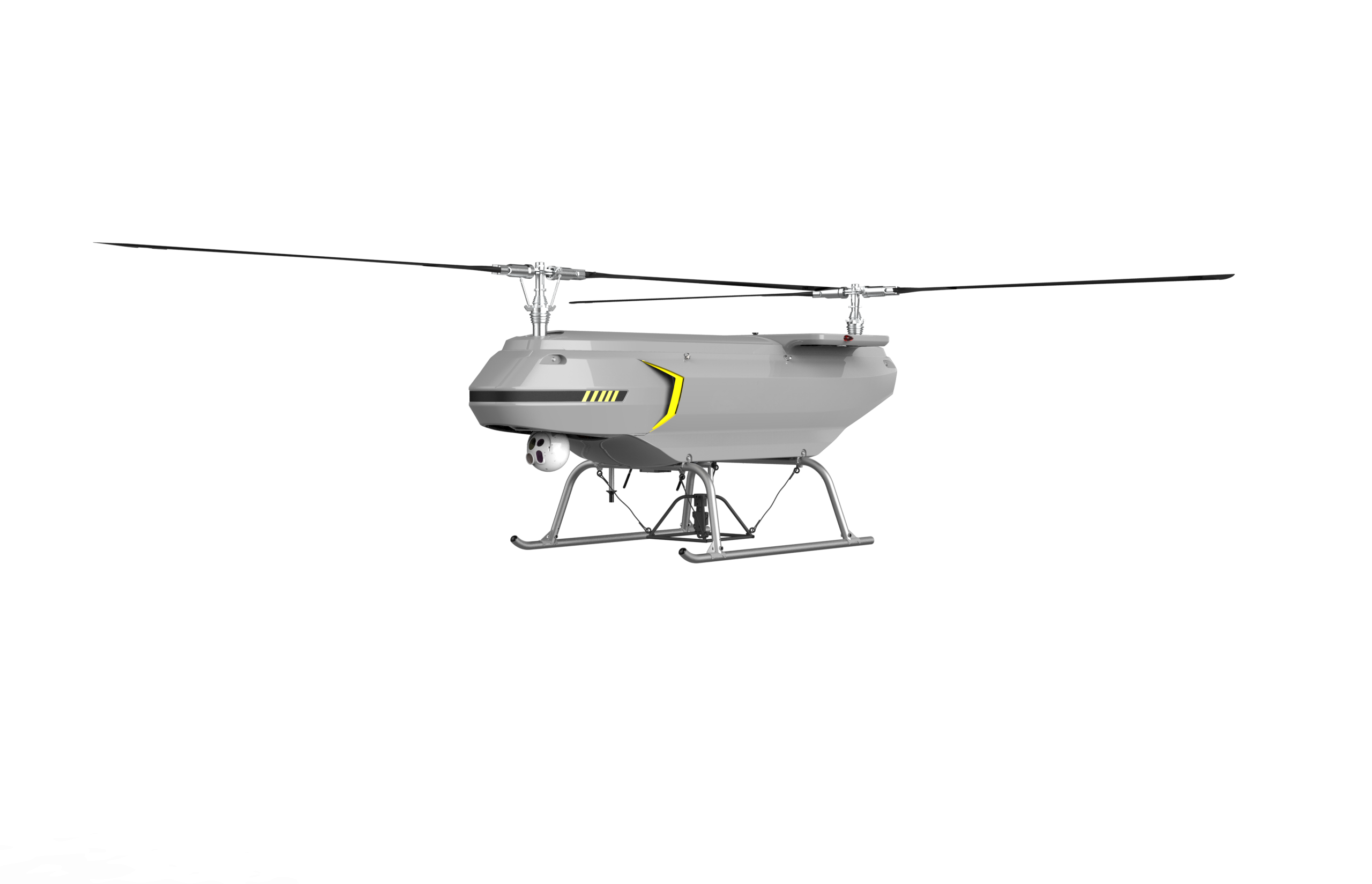

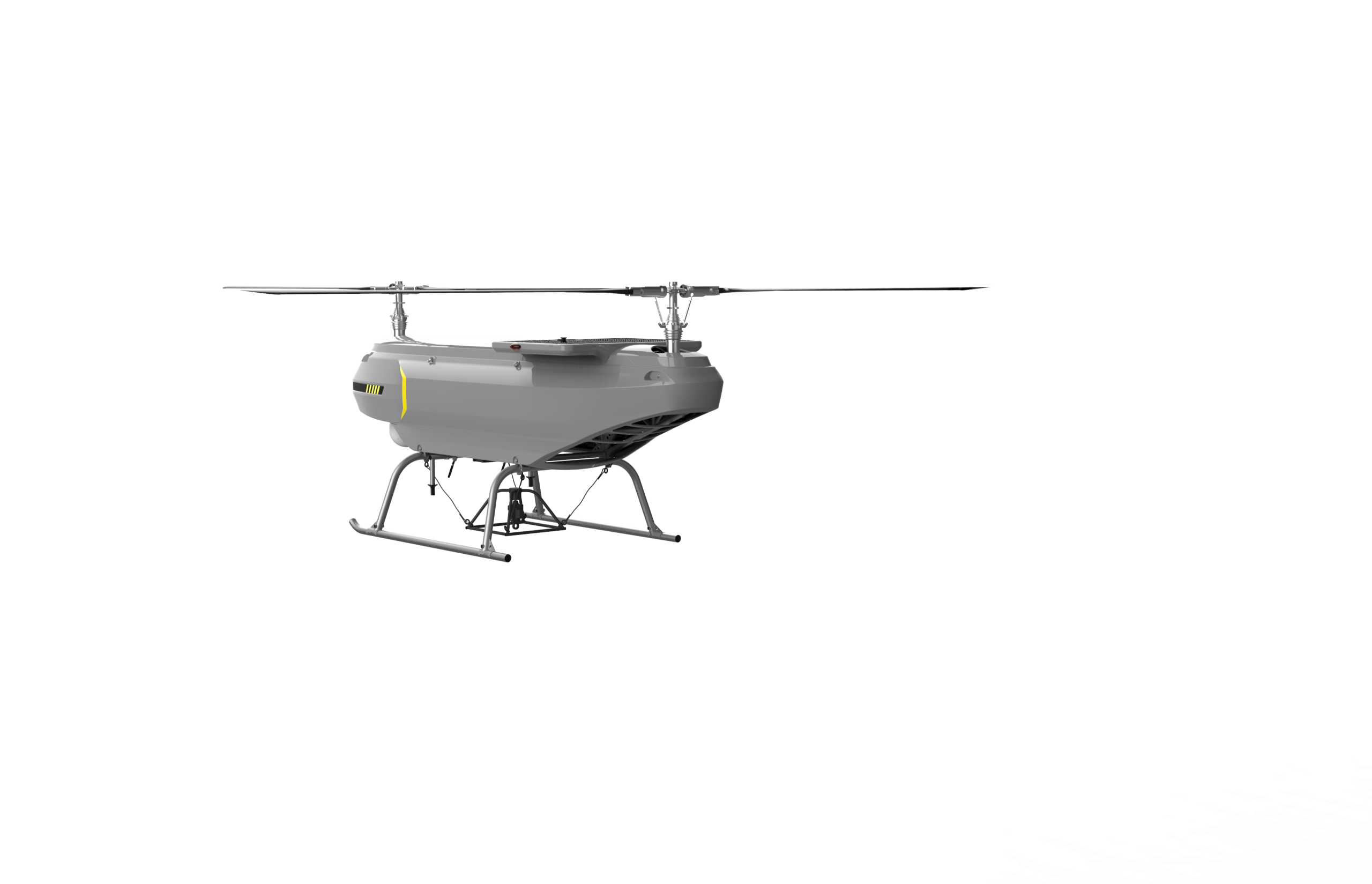

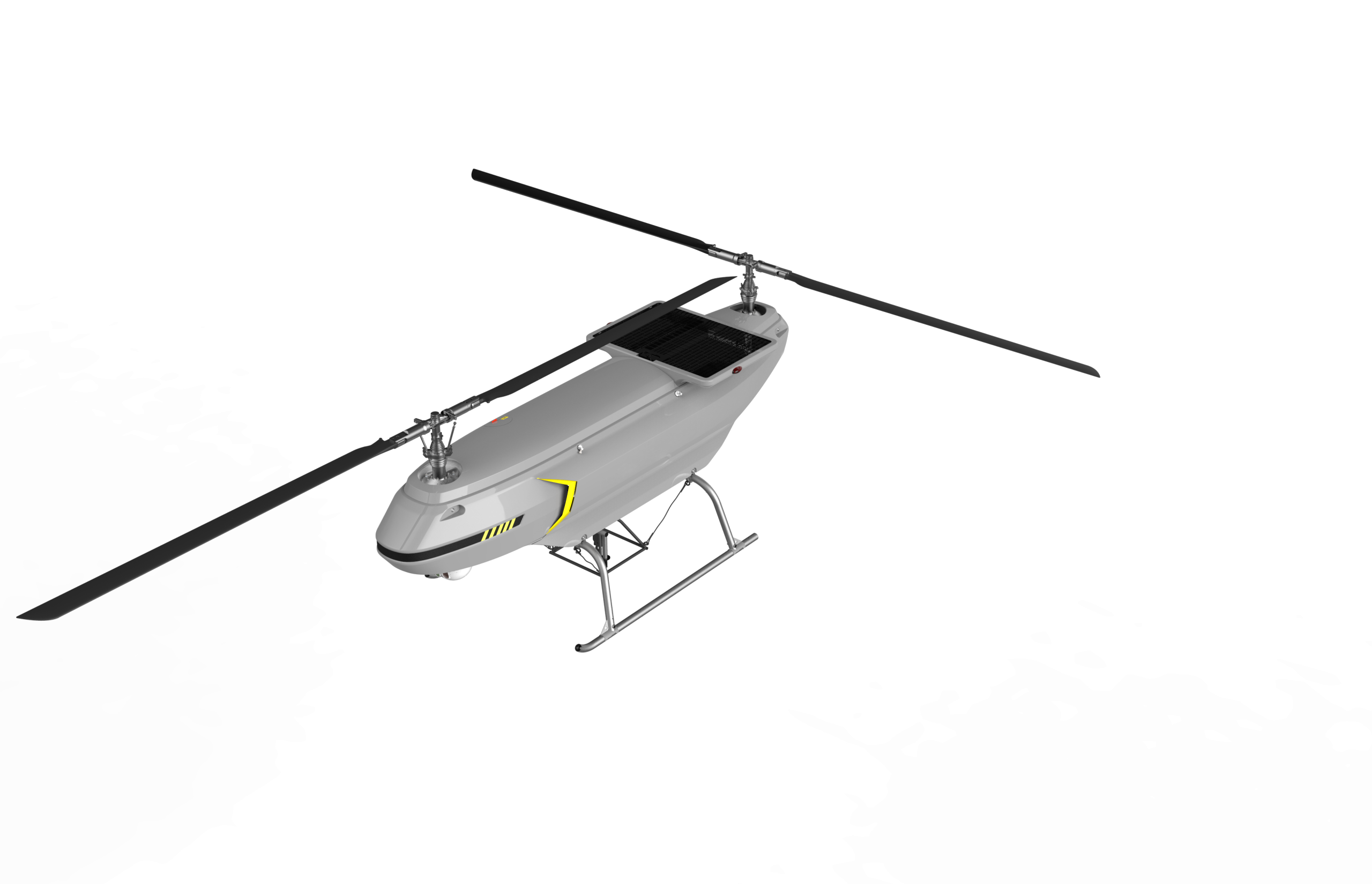

The VA-W500H UAV system is equipped with a heavy oil engine, enabling it to be ship-borne and carrying a maximum payload of 300 kg. It can fly safely over forested areas, reducing the risk of explosions and fires. The system also features a dedicated cargo loading device, allowing it to effectively perform tasks such as precise delivery of supplies, evacuation and transfer of the wounded, transport of engineering equipment, transport of equipment spare parts, and delivery of medical supplies. It can perform logistical support operations in complex environments.
Key Features of VA-W500H Drone
Fully Autonomous Takeoff & Landing
Hovering in Mid-Air
Precise Delivery
Emergency Return
Saves 30% on Manpower
Increases Efficiency 10 Times

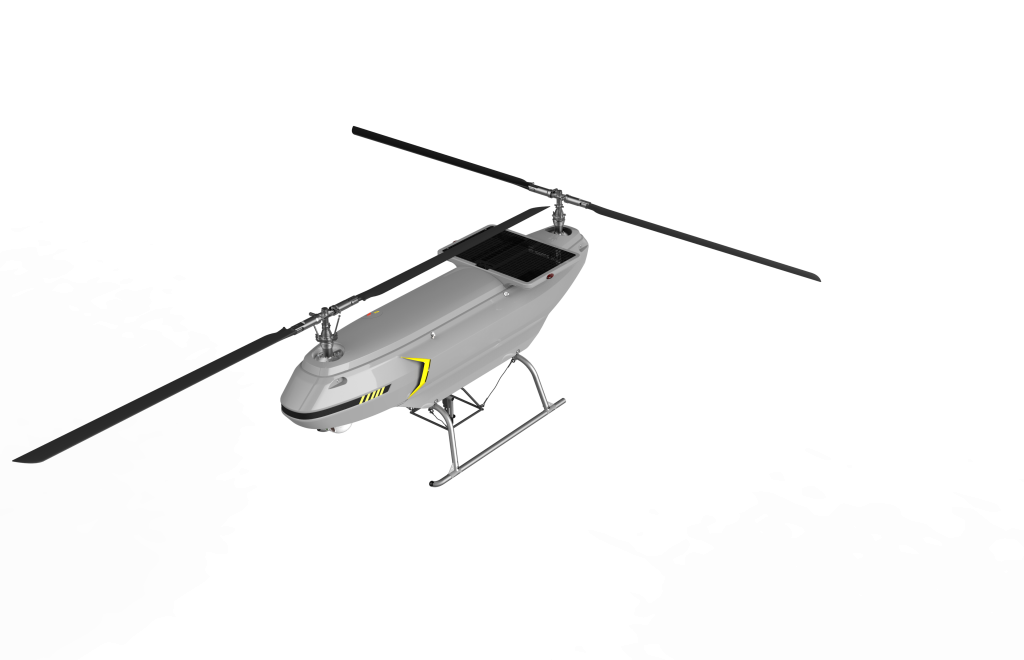

Product Overview
Why Choose VA-W500H Drone

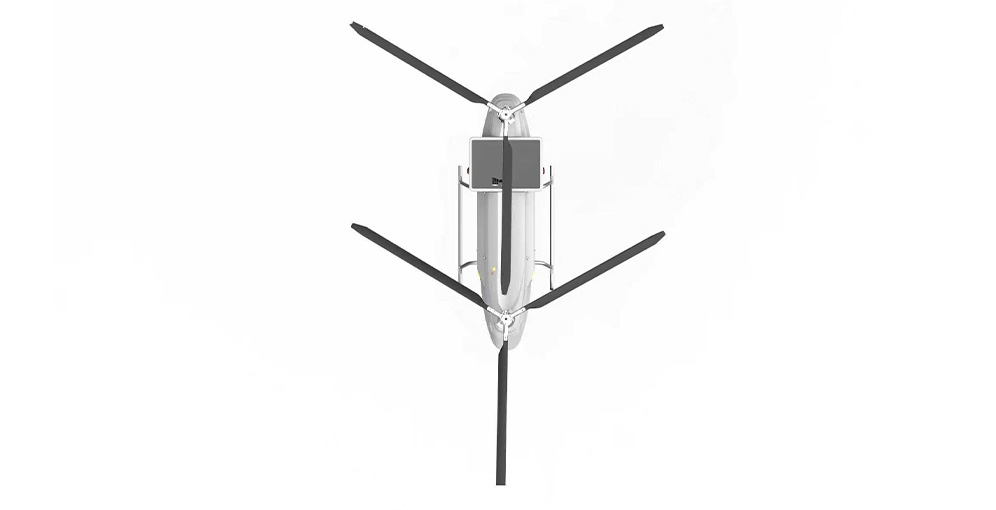

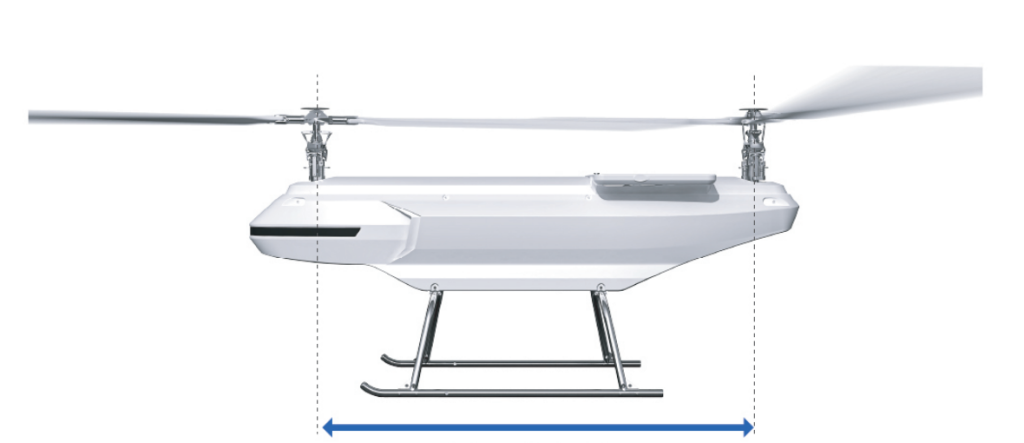

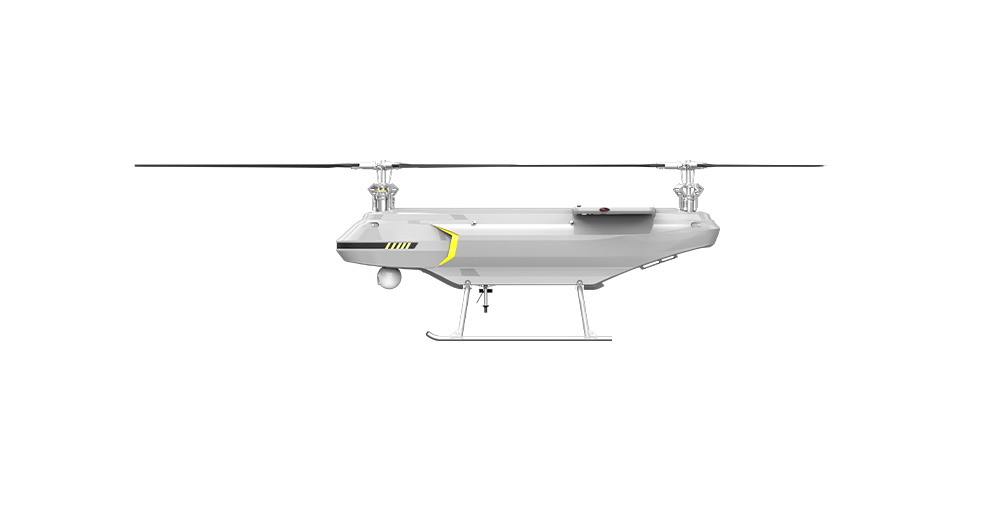

Tandem Configuration
Wide range of center of gravity adaptability, simple deployment, naturally suited for heavy loads.

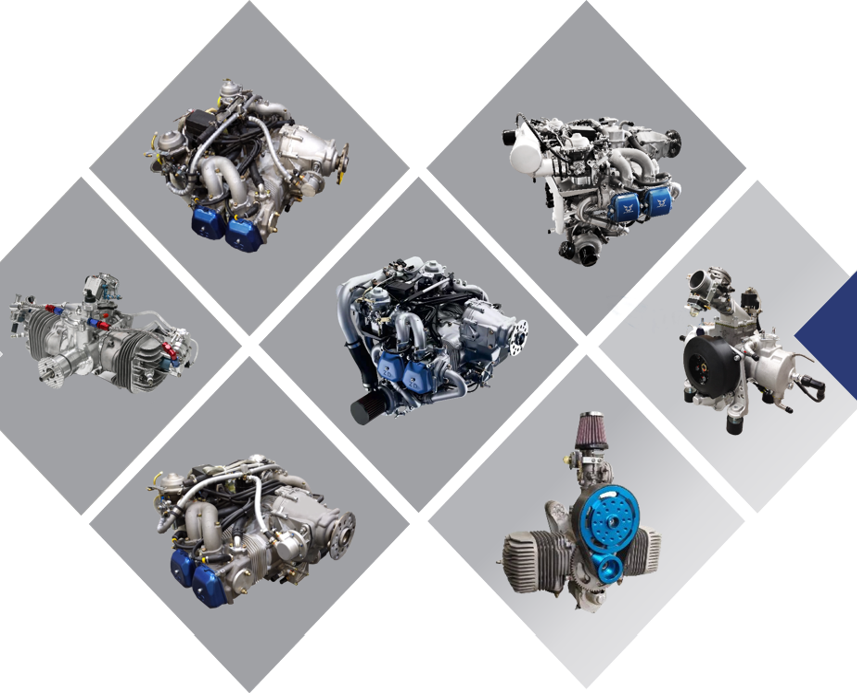

Aviation Piston Diesel Engines
Providing near-tonnage transport capacity and enhanced safety.

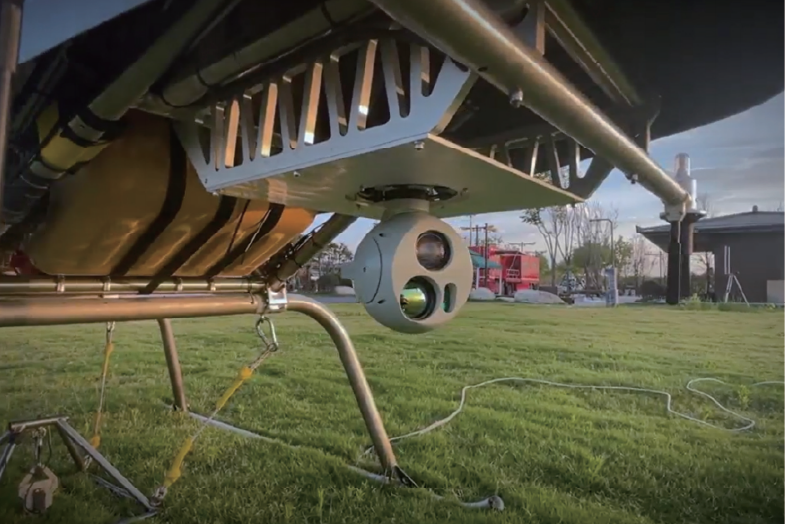

All-titanium Alloy Truss Fuselage
Tri-proof (waterproof, dustproof, and shockproof), strong environmental adaptability, convenient transportation.
With a Load Ratio of 0.5, the Top Performers in the Industry

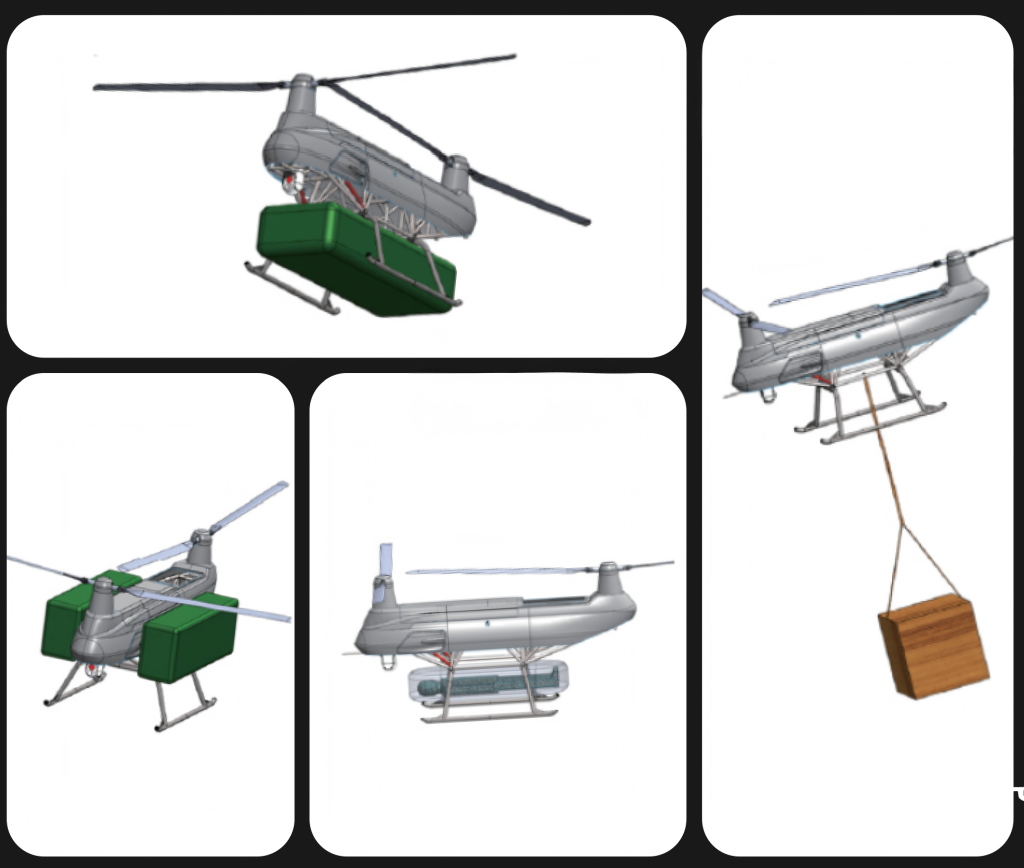

Multiple mounting options support round-trip transportation without landing.
Safety & Reliability
Redundant flight control and navigation systems, electronic fences, emergency response, crash and fire protection, reliability meeting airworthiness standards.
Important Parameters
| Take off Weight | 660kg | Maximum Speed | 144km/h | ||||||
| Payload | 300kg | Flight Function | Fully autonomous take-off and landing, autonomous cruising, hovering in the air, one-key return, etc. | ||||||
| Endurance | 300kg-1h, 250kg-3h | Navigation System | Support inertial cruise,GPS/BD | ||||||
| Standard Communication Link Distance | 30km | Wind Grade | Take-off and landing ≤6, air ≤8 | ||||||
| Fuel Tank Capacity | 100L | Operating Temperature | -25°C-55°C | ||||||
| Service Ceiling | 6500m | Body Dimension | 3.8m*1.6m*1.85m | ||||||
| Cruise Speed | 80-100km/h | ||||||||
Solution
Logistics Transportation
Perfect for equipment transportation & long distance logistics, fresh food & agricultural transportation, warehousing & distribution management, emergency supplies transportation
Emergency & Rescue
Well-suited for emergency supplies delivery, life search & transfer, emergency supply delivery, communication & lighting supply
Actual Case
Mountainous and forested terrain is complex, and traditional vehicle transportation is limited by road conditions, resulting in low efficiency and high costs.

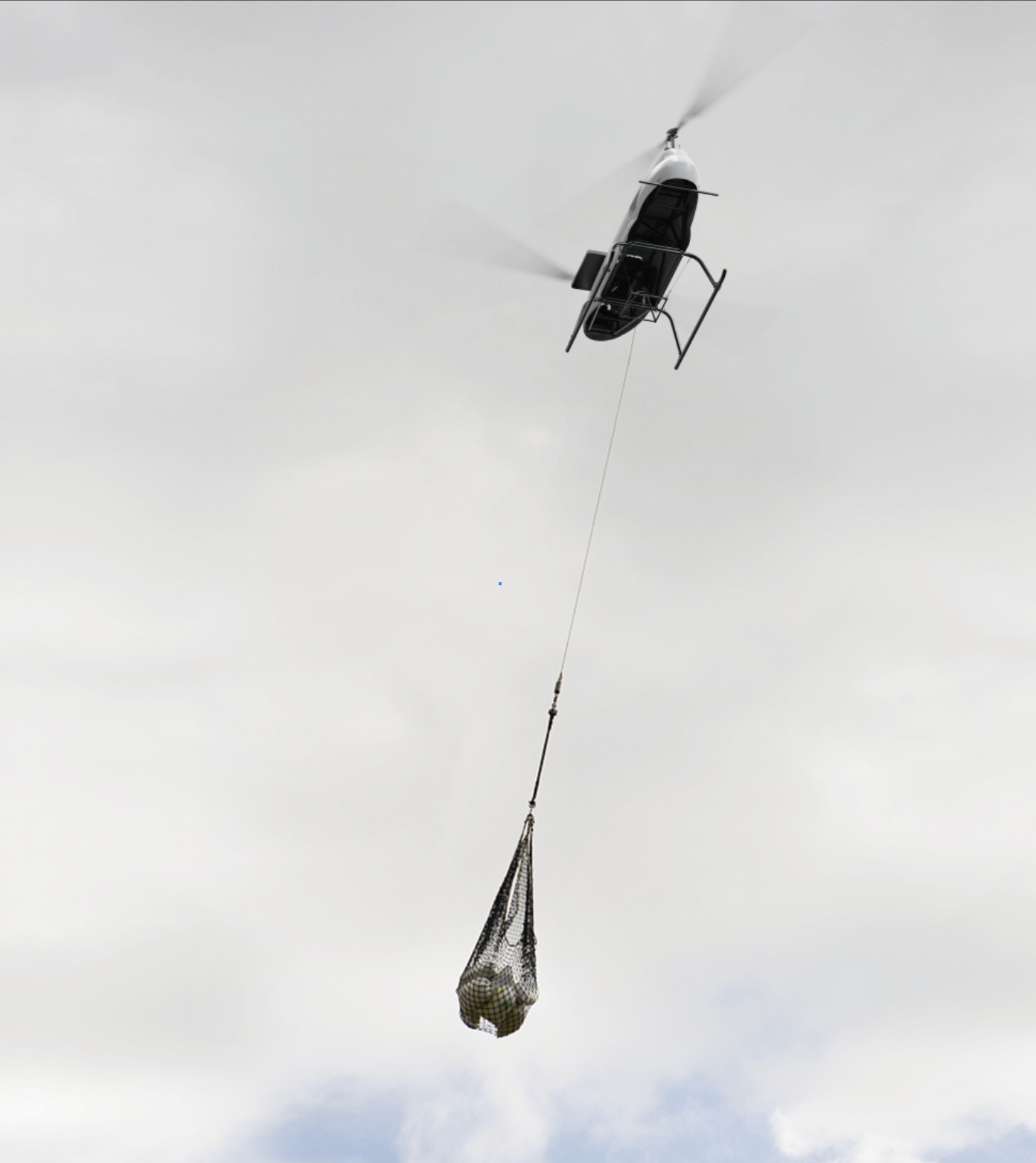

The VA-W500H achieves direct hoisting from the “distribution point at the foot of the mountain” to the “tower location at the summit” through precise “point-to-point” transportation.
Actual operational data shows that:
- Daily transportation efficiency is increased by 5-8 times compared to traditional methods.
- The transportation cycle for a single 5-ton tower material is shortened from approximately 10 days to 1-2 days.
- The overall project construction cycle can be reduced by 50%-60%.
Heavy-load drones participated in local fire and rescue drills, equipped with specialized casualty compartments and hoisting devices, enabling them to quickly complete medical and rescue work. They efficiently and intelligently bought more time for the injured, safeguarding lives and becoming an important aerial force in emergency rescue.
