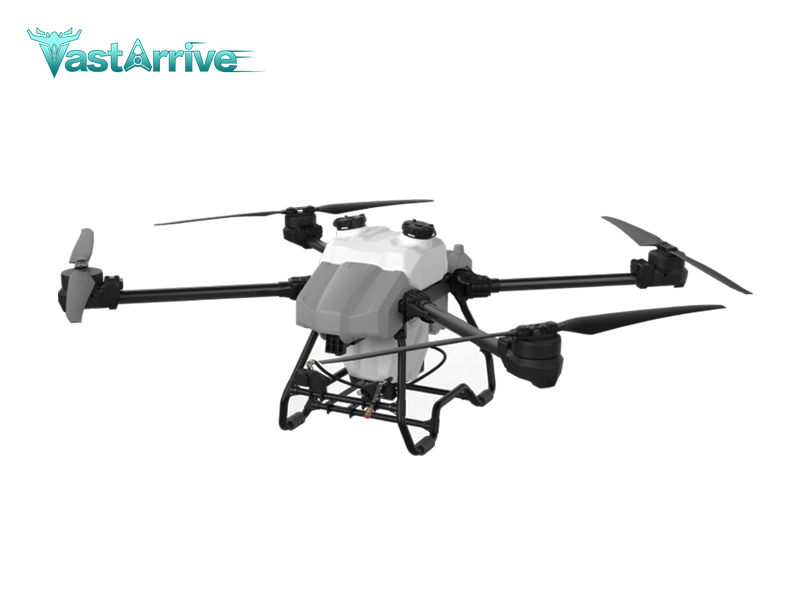

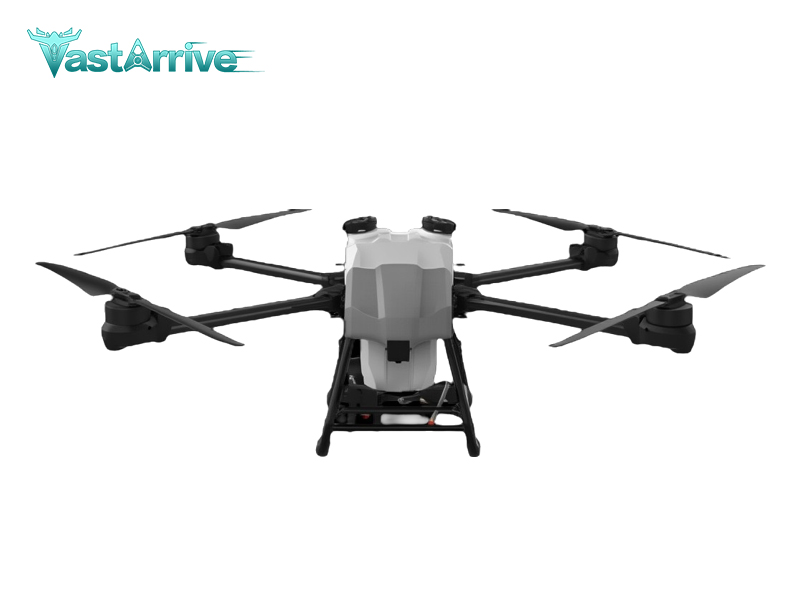

D50R is a modular aerial cleaning system designed for photovoltaic applications, equipped with two different cleaning mounts, with fixed and oscillating nozzles, and 4 different angles of nozzles designed. It is widely used on building facades, photovoltaic panels, insulator strings, towers, and other high-altitude cleaning scenarios.

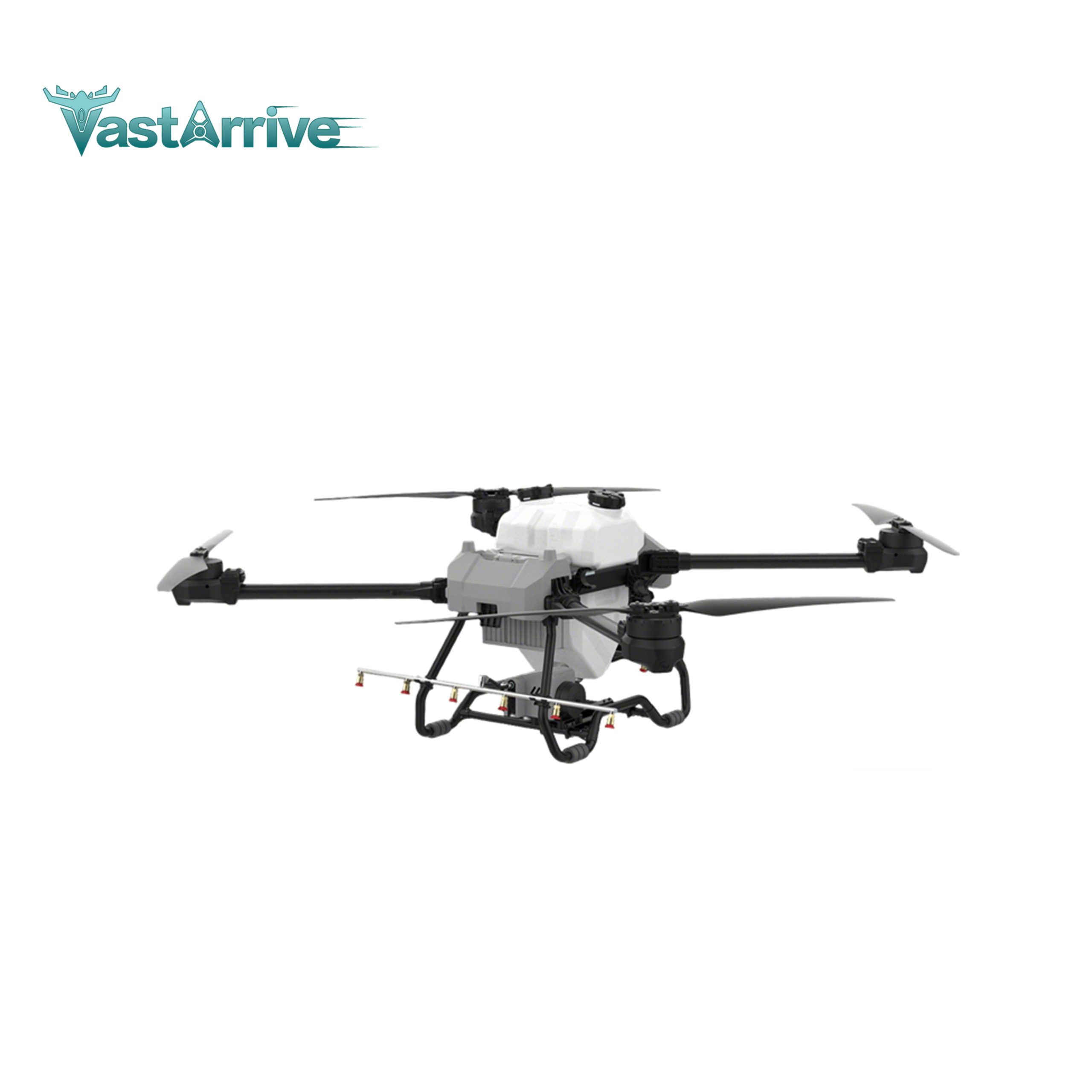

Product Overview
Key Benefits

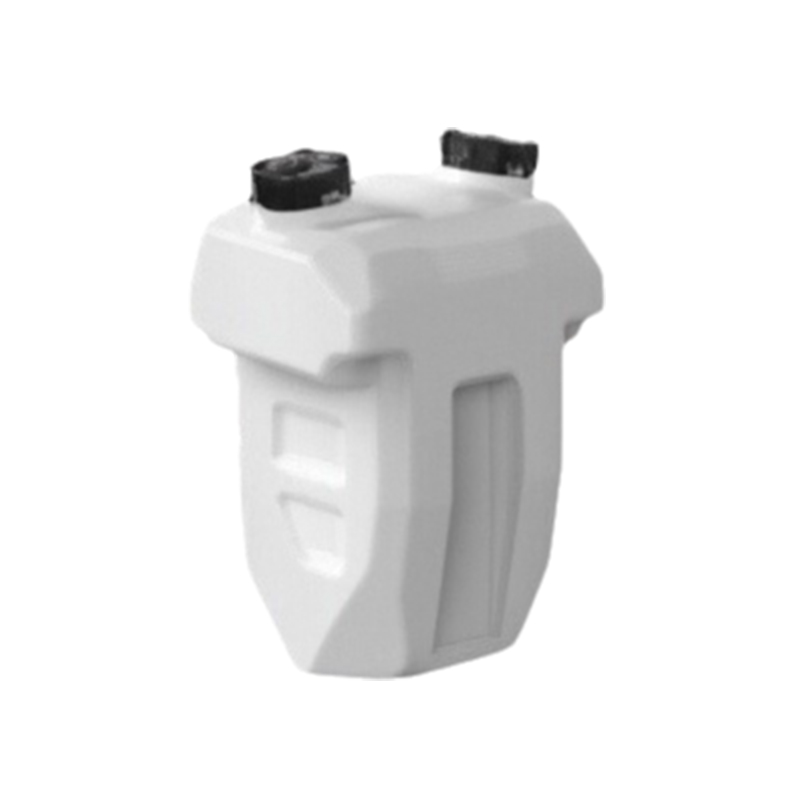

50L Large-Capacity Water Tank
Supports extended cleaning operations and reduces refill frequency.

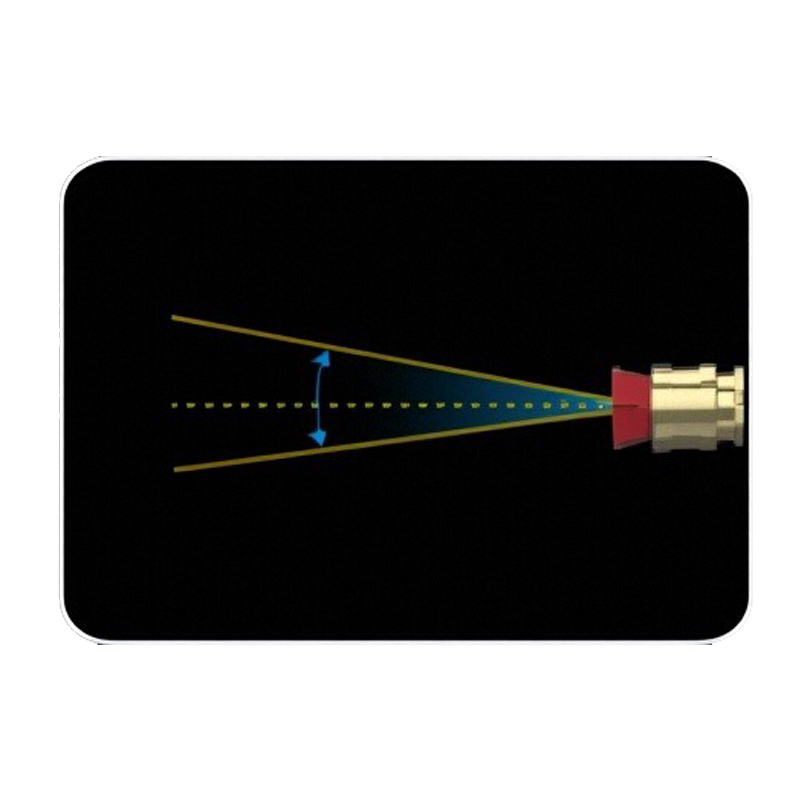

High-Pressure Cleaning Performance
Up to 20 MPa pressure for effective removal of stubborn contaminants.
Automated Cleaning Operation
Integrated flight path planning enables automated and consistent cleaning performance.

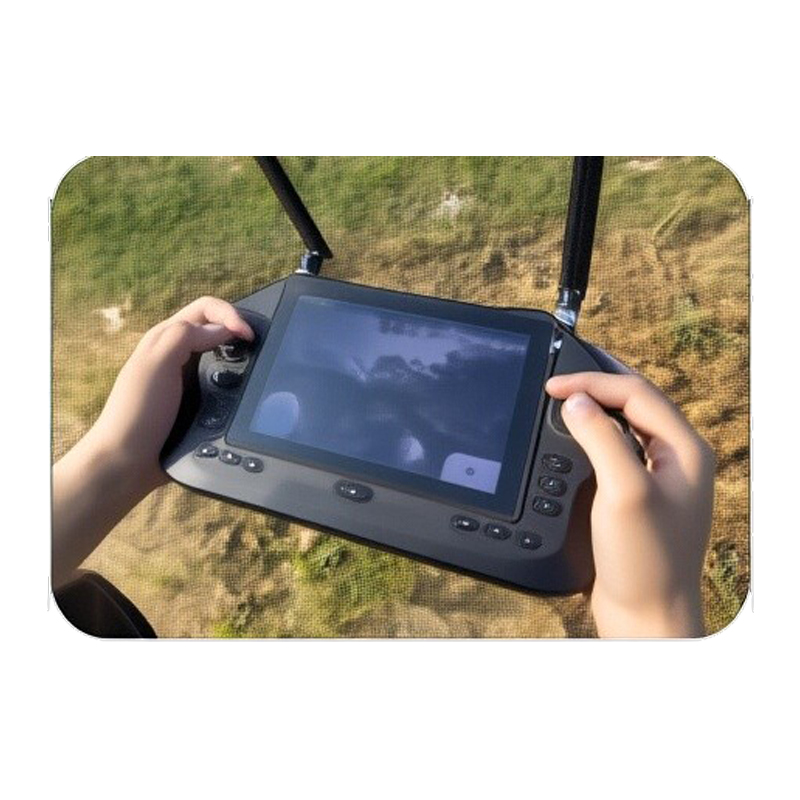

Rapid
Deployment
Foldable structure with quick-release design for fast setup and transport.
Photovoltaic Cleaning Applications

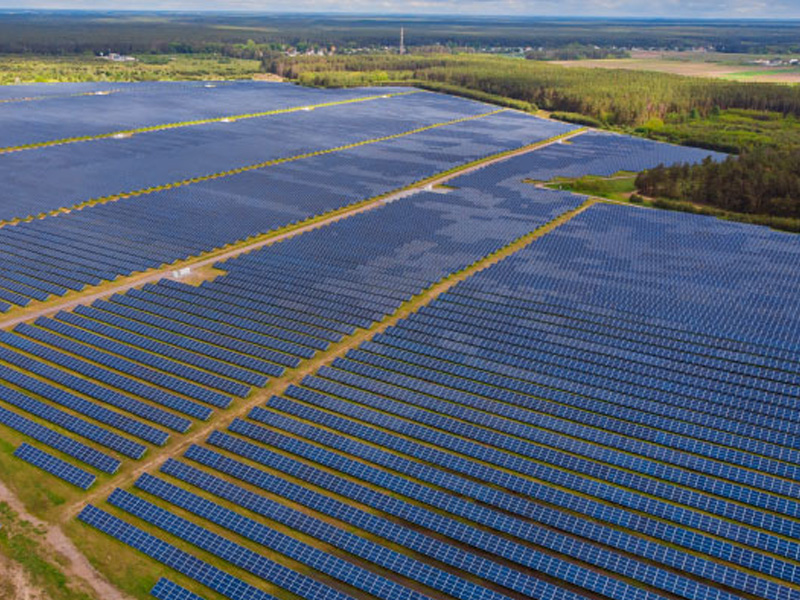

Utility-Scale Ground-Mounted PV Plants
Designed for large-scale solar farms, enabling efficient cleaning of extensive panel arrays and improving overall power generation efficiency.

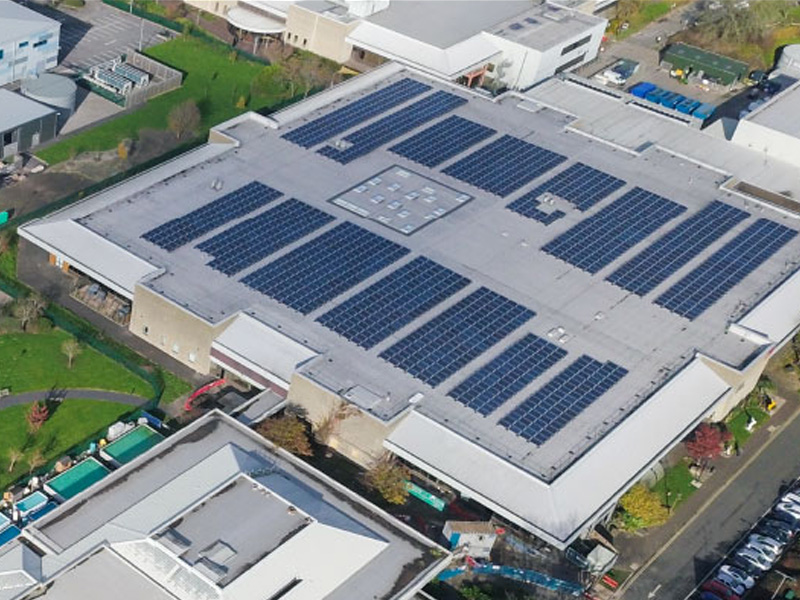

Residential Rooftop PV Systems
Suitable for household solar installations, ensuring regular maintenance and improved panel performance in compact environments.

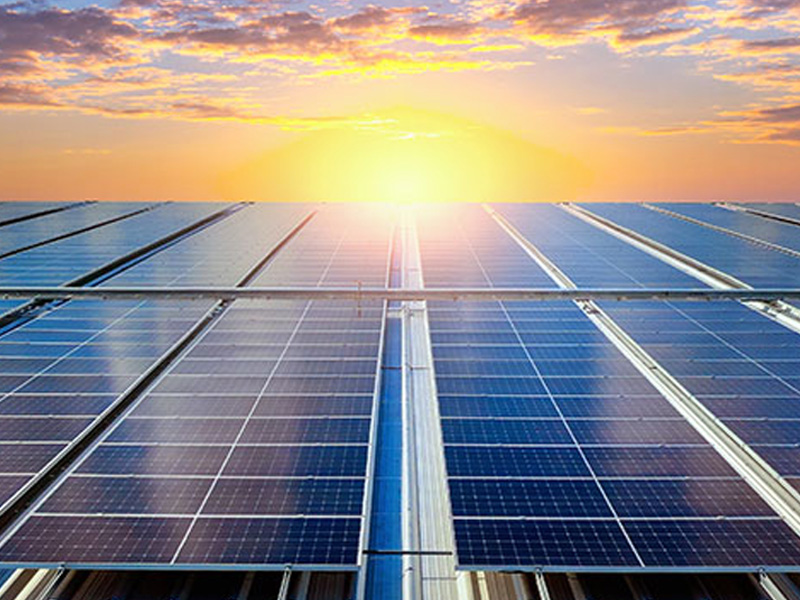

Commercial & Industrial Rooftop PV
Supports cleaning of large rooftop PV systems in factories, warehouses, and commercial buildings with stable and efficient operation.

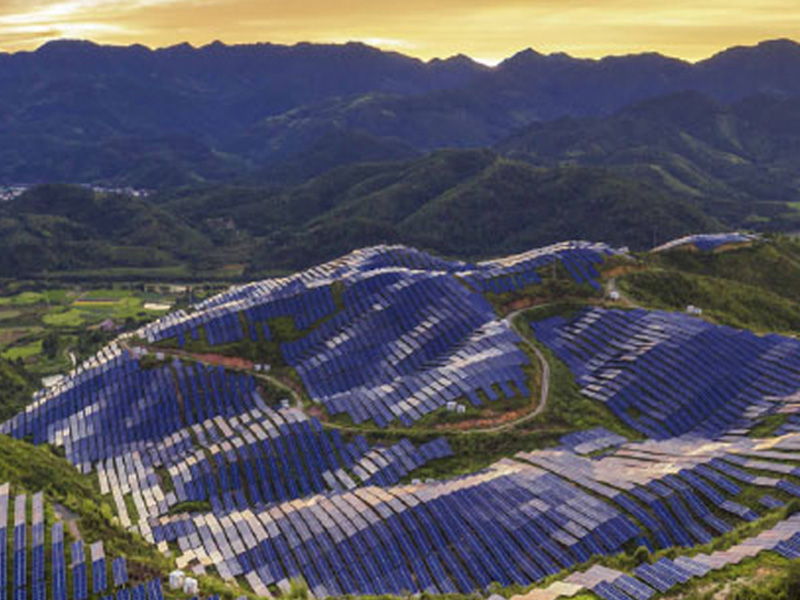

Distributed Photovoltaic Systems
Adaptable to decentralized PV installations across various locations, providing flexible and efficient cleaning solutions.

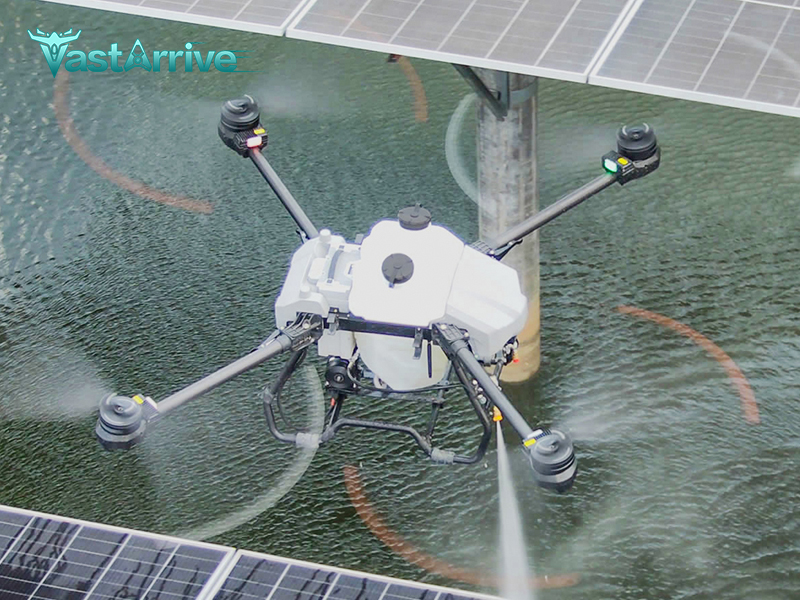

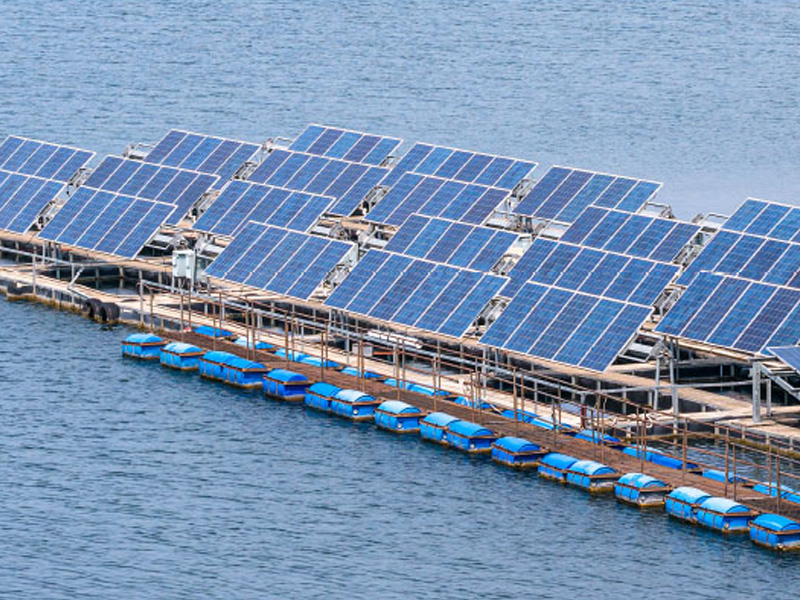

Fishery-Solar Hybrid PV Systems
Applicable to aquaculture-integrated solar installations, enabling safe and efficient cleaning in complex water-surface environments.
Technical Parameters
| Dimensions (Unfolded) | 1905*1720*815 mm (Arms unfolded) | Max Flight Speed (Horizontal) | 15 m/s |
| Dimensions (Folded) | 635*1340*815 mm (Arms folded) | Max Hover Time (Full Load) | 7 min |
| Wheelbase | 2300 mm | Max Hover Time (No Load) | 22 min |
| Water Tank Capacity | 50 L | Operating Temperature | -10°C to 40°C |
| Spray Flow Rate | 11 L/min | Operating Humidity | 0–90% |
| Cleaning Time per Cycle | 5 min | Max Wind Resistance | 12 m/s |
| Cleaning Area per Minute | 34.5 ㎡ | Charging Time | 30 min (standard) 12 min (fast charge) |
| Cleaning Area per Cycle | 138 ㎡ | Max Takeoff Weight | 105 kg |
| Cleaning Efficiency | 690 ㎡/h | Operational Cycles | 5 cycles/hour |
| Battery | 18S 30,000 mAh | ||
Why Choose D50R Cleaning Drone?

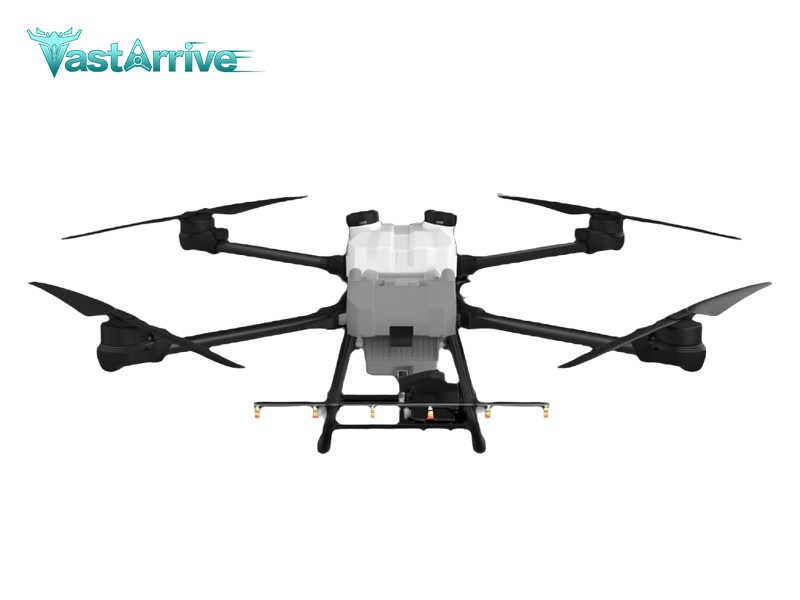

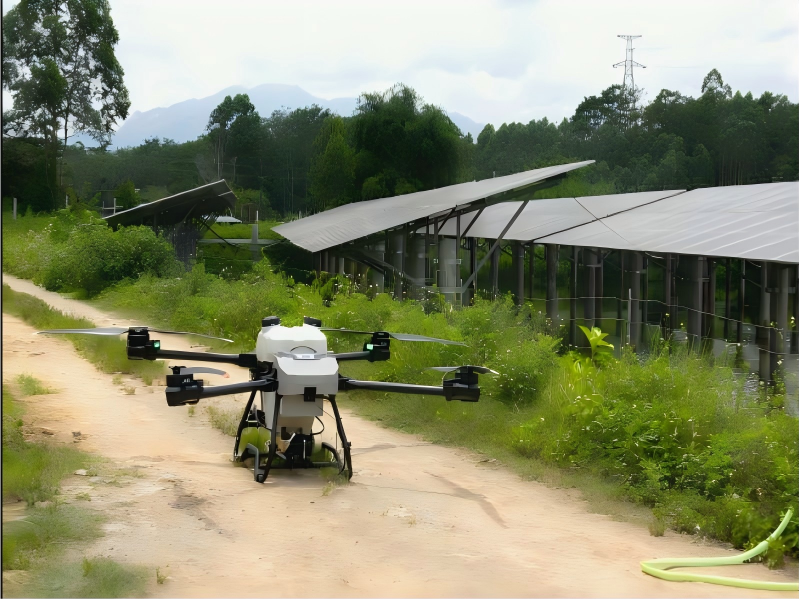

Modular Cleaning Configuration
Supports interchangeable mounts and nozzle systems for different cleaning scenarios.

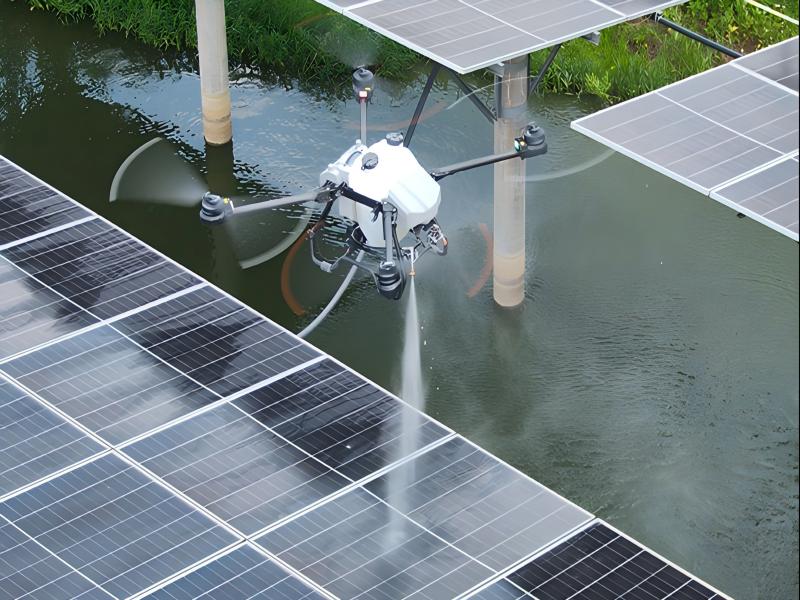

Stable High-Altitude Operation
Dual RTK positioning ensures precise and stable flight at various working heights.

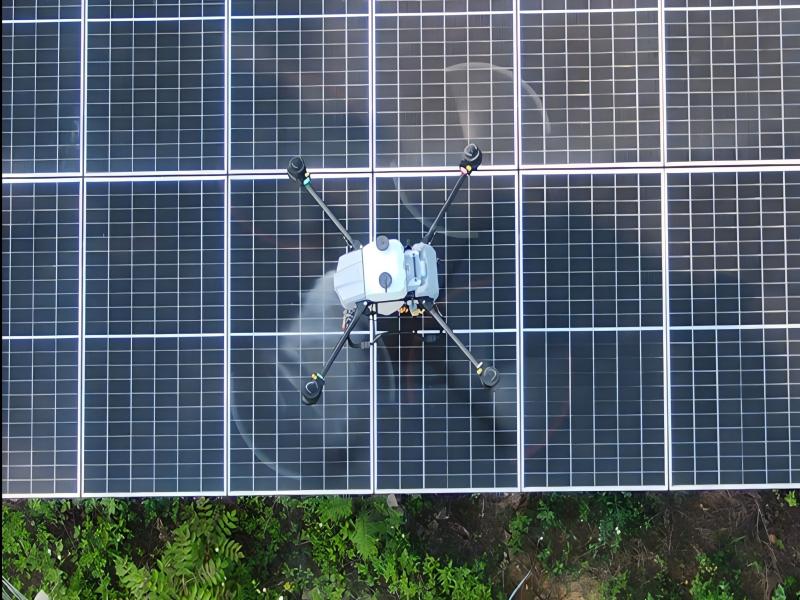

Multi-Angle Cleaning Coverage
Flexible spray configurations enable effective cleaning of complex surfaces, including undersides and inclined panels.
Intelligent Obstacle Sensing
Integrated radar sensing system provides real-time obstacle detection for safer operation.

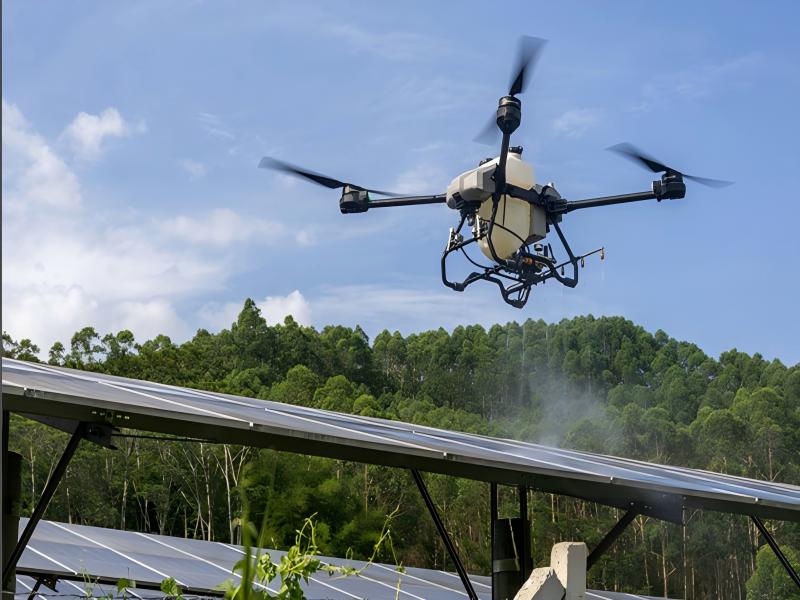

Safer Alternative to Manual Work
Enables remote high-altitude cleaning, reducing reliance on manual operations and associated risks.
Actual Case

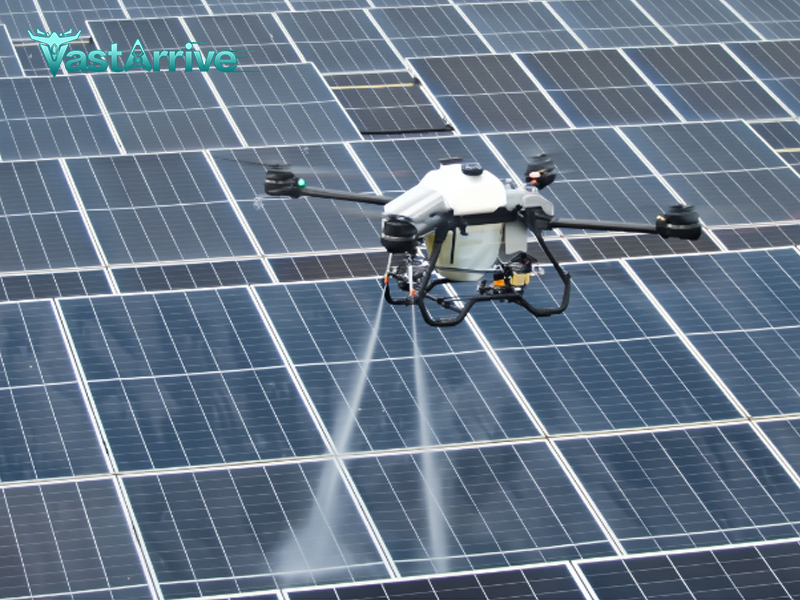

Photovoltaic Cleaning
Restored panel surface clarity and improved maintenance efficiency.
D50R Operational Overview
The D50R operates with stable flight control and controlled spray distribution, enabling efficient cleaning of photovoltaic panels.
