• Hybrid VTOL Fixed-Wing Drones for Long-Range & Multi-Mission Operations

    Super-Long Endurance

    Modular
    Multi-Payload Support

    Wide-Area Coverage

    VTOL
    No Runway Required

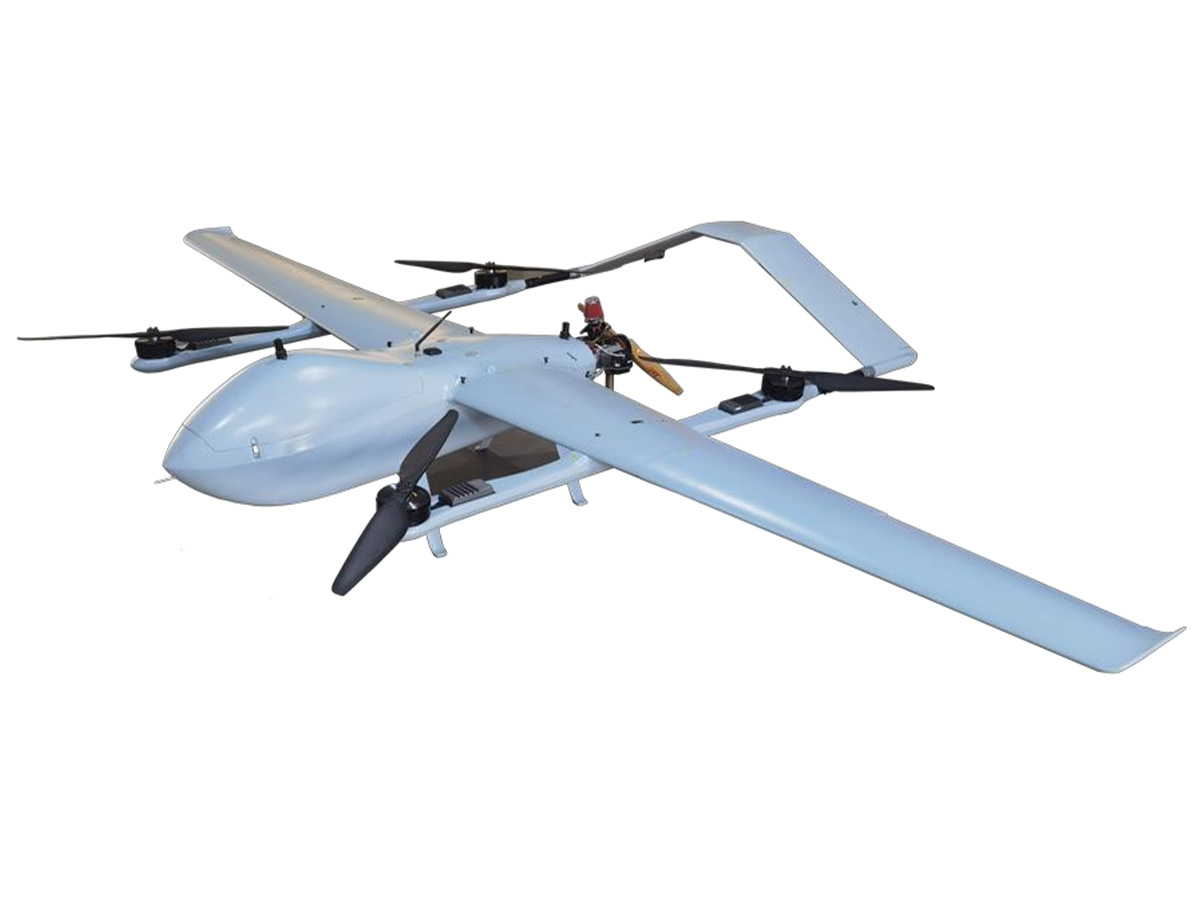

VastArrive hybrid-powered fixed-wing drones combine VTOL capability with the long endurance and wide coverage of fixed-wing flight. Powered by a hybrid propulsion system, these drones are designed for long-range, heavy-payload, and multi-mission operations without the need for runways. They are widely used in agriculture surveying, emergency response, power line inspection, environmental monitoring, and geospatial mapping.

Main Products

VA-H50Z

Hybrid VTOL Fixed-wing Drone

  • Endurance: 10h
  • Cruise Speed: 100km/h
  • Payload Weight: 10kg
  • Service Ceiling: 6000m

VA-H90Z

Hybrid VTOL Fixed-wing Drone

  • Endurance: 6h-20kg
  • Cruise Speed: 120km/h
  • Payload Weight: 20kg
  • Service Ceiling: 5000m

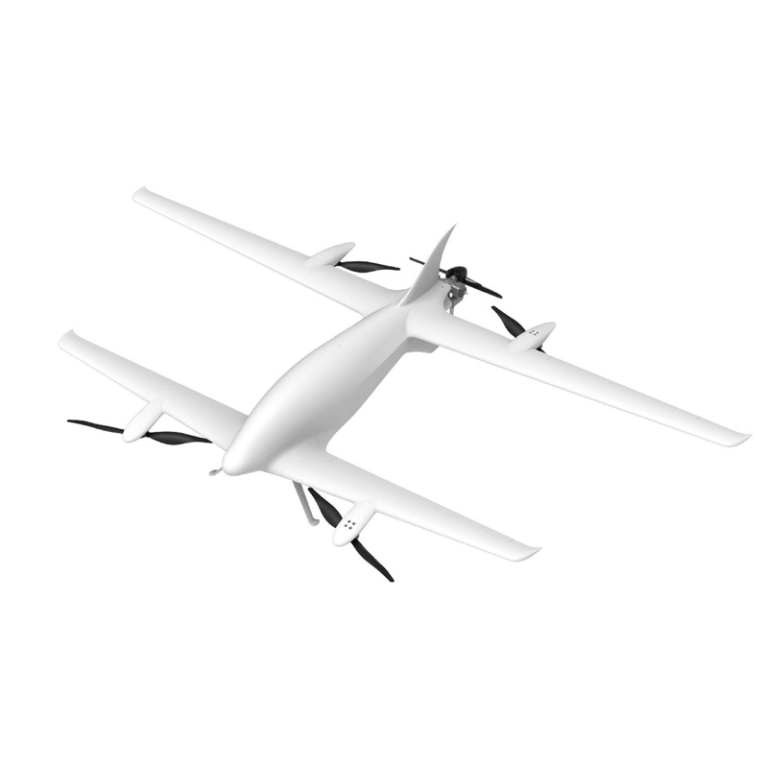

VA-Y18

Hybrid VTOL Fixed-wing Drone

  • Endurance:3kg-10h
  • Cruise Speed: 25m/s
  • Payload Weight: 8kg
  • Service Ceiling: 5000m

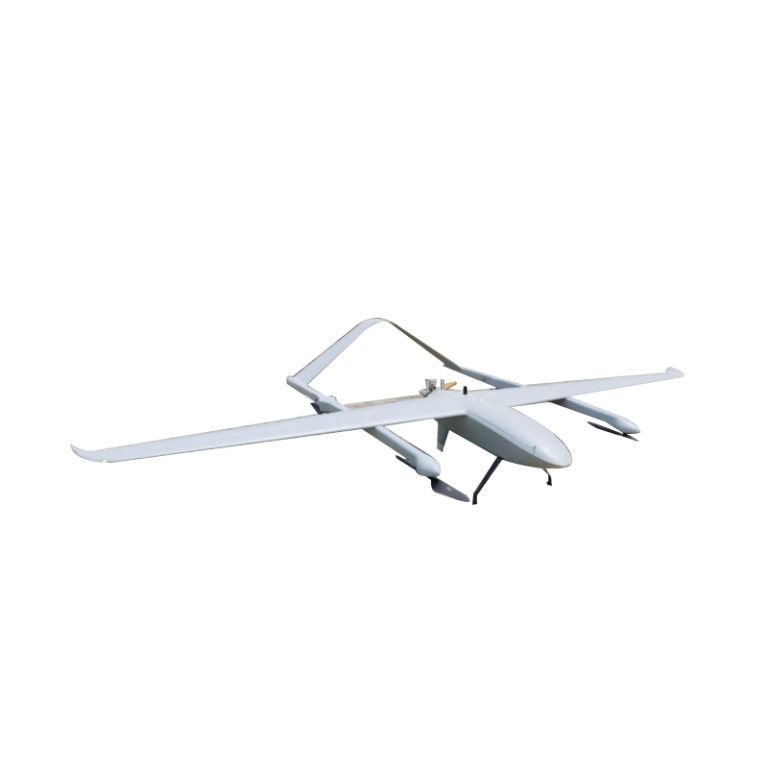

VA-Y40

Hybrid VTOL Fixed-wing Drone

  • Endurance: 3kg-10h
  • Cruise Speed: 110km/h
  • Payload Weight: 15kg
  • Service Ceiling: 5000m

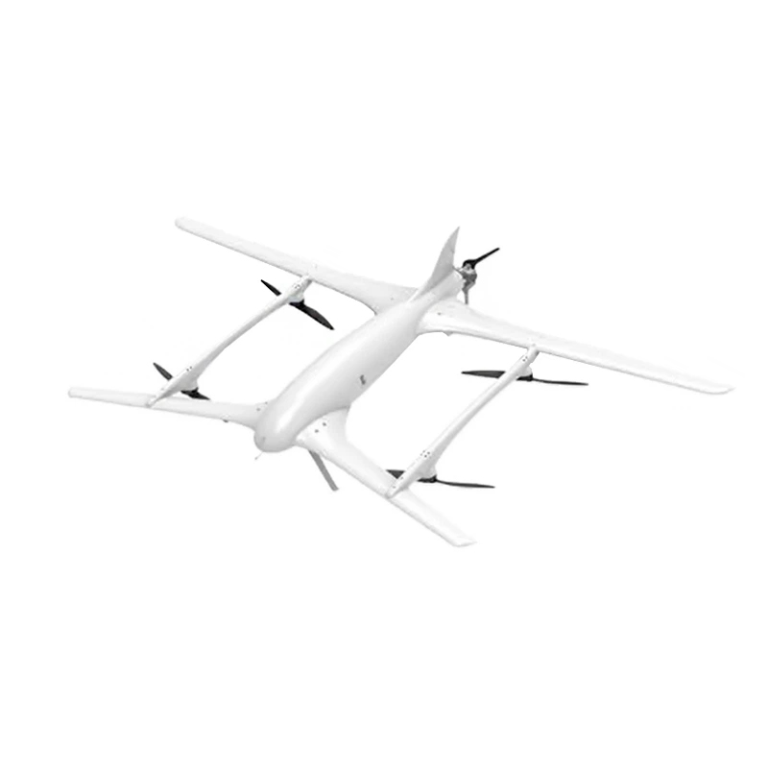

VA-Y45

Hybrid VTOL Fixed-wing Drone

  • Endurance: 20kg-7h
  • Cruise Speed: 30m/s
  • Payload Weight: 45kg
  • Service Ceiling: 5000m

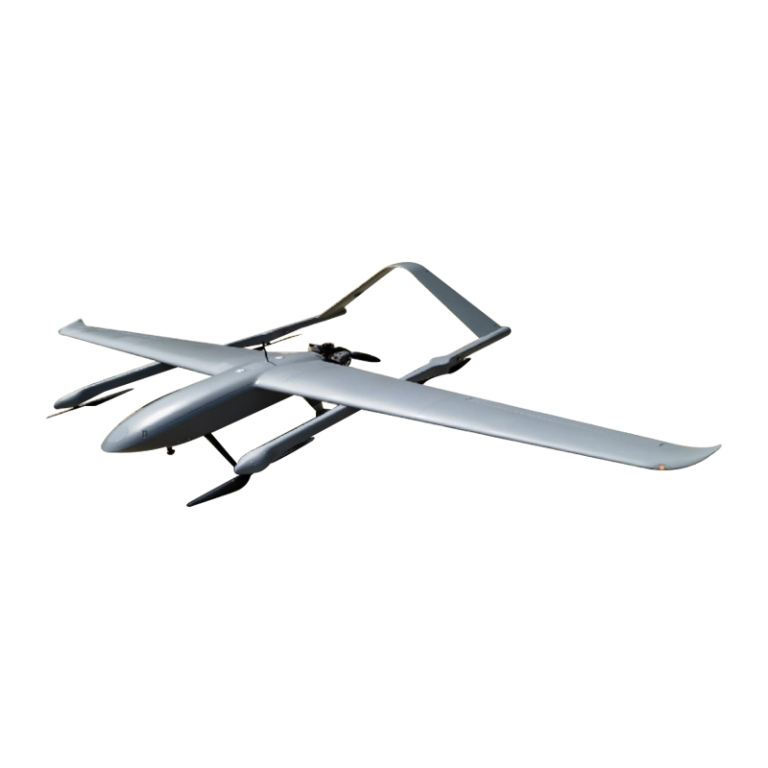

VA-Y60

Hybrid VTOL Fixed-wing Drone

  • Endurance: 30kg-6h
  • Cruise Speed: 150km/h
  • Payload Weight: 40kg
  • Service Ceiling: 5500m

Hybrid Fixed-Wing Drones Main Parameters Comparison

Below is a technical comparison of VastArrive’s hybrid fixed-wing drone models, designed to help you quickly identify the most suitable model for your mission requirements.

Item No.VA-H50ZVA-H90ZVA-Y18VA-Y40VA-Y45VA-Y60
EnduranceUnloaded-10h20kg-6h3kg-10h3kg-10h20kg-7h
30kg-4h		7kg-10h
30kg-6h
Max Flight Range/
Control Radius  		150km150km1220km850km810km100km
Max Payload10kg20kg8kg15kg45kg40kg
Cruise Speed100km/h120km/h90km/h110km/h110km/h95km/h
Max Speed130km/h150km/h150km/h130km/h160km/h150km/h
Operating Altitude6000m5000m5000m5000m5000m5500m
Max Take-Off Weight (MTOW)55kg95kg40kg60kg100kg160kg
Wind ResistanceTakeoff/Landing ≤ 5
Air ≤ 7		Takeoff/Landing ≤ 5
Air ≤ 7		Takeoff/Landing ≤ 5
Air ≤ 6		Takeoff/Landing ≤ 5
Air ≤ 7		Takeoff/Landing ≤ 5
Air ≤ 6		Takeoff/Landing ≤ 5
Air ≤ 7
Takeoff & LandingVTOLVTOLVTOLVTOLVTOLVTOL
Protection LevelIPX4IPX4IPX4IPX4IPX4IPX4
Operating Temperature-20°C ~ 55°C-20°C ~ 55°C-20°C ~ 45°C-10°C ~ 60°C-20°C ~ 45°C-10°C ~ 60°C
Box Size186*84*82cmN/A212*90*64cm190*105*78cm305*80*95cm255*145*144cm

Why Choose VastArrive Hybrid Fixed-Wing Drones

Extended Flight Endurance

Equipped with a self-starting integrated engine–generator and an electronic fuel injection (EFI) system, VastArrive hybrid VTOL fixed-wing drones deliver stable power output and improved fuel efficiency.

Key Value:

Stable hybrid power · Efficient fuel management · Long-duration operations

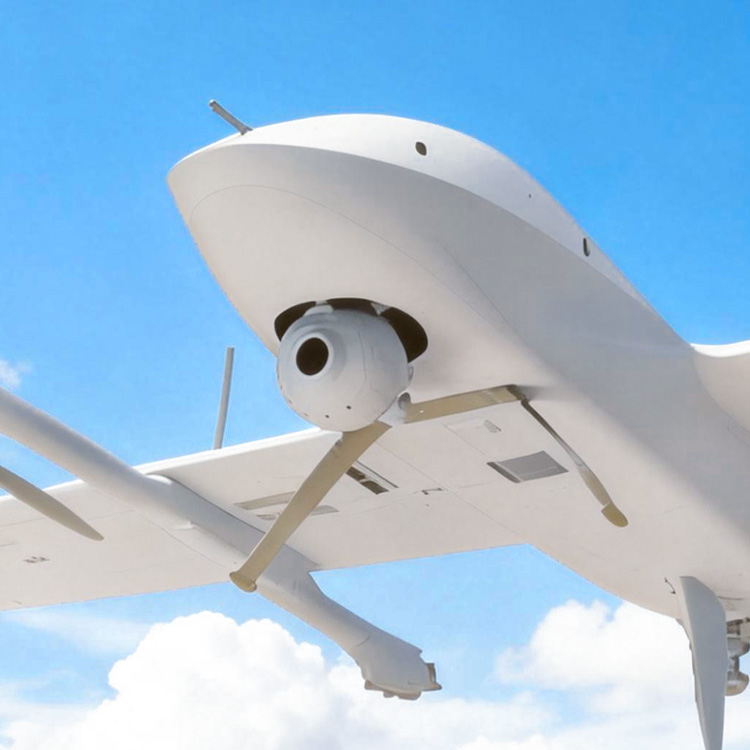

Heavy Payload & Multi-Sensor Capability

VastArrive drones support a variety of sensors, cameras, and instruments. This allows a single flight to complete complex multi-sensor missions, including LiDAR mapping, aerial imaging, and environmental data collection.

Key Value:

Multi-sensor integration · Complex mission capability · Stable performance under load

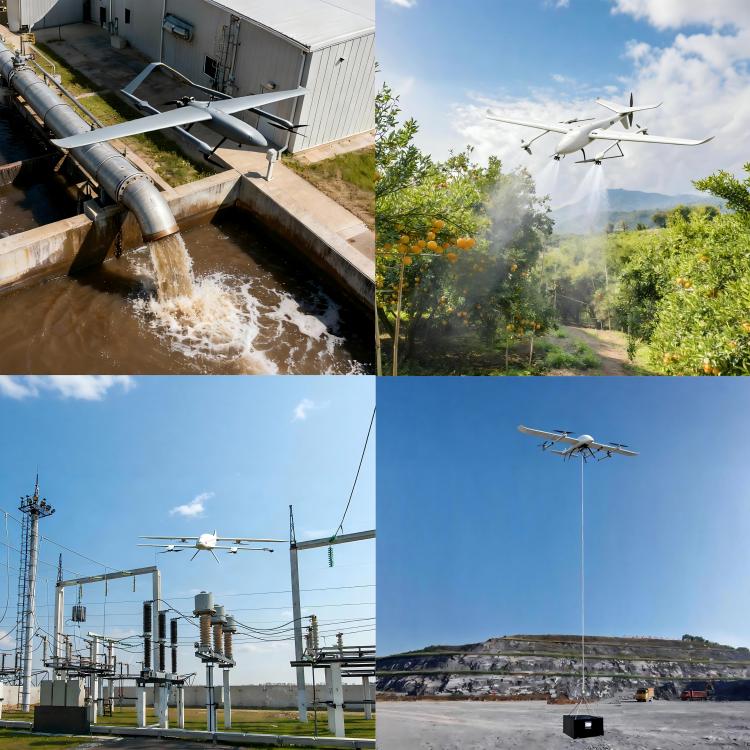

Operational Flexibility in Complex Environments

VastArrive hybrid VTOL drones operate in mountains, forests, remote areas, and disaster zones, making it ideal for industrial and emergency applications. This makes them an ideal solution for agriculture, emergency response, power line inspection, environmental monitoring, and geospatial surveying.

Key Value:

Adaptable to challenging environments · Reliable performance · Multi-mission readiness

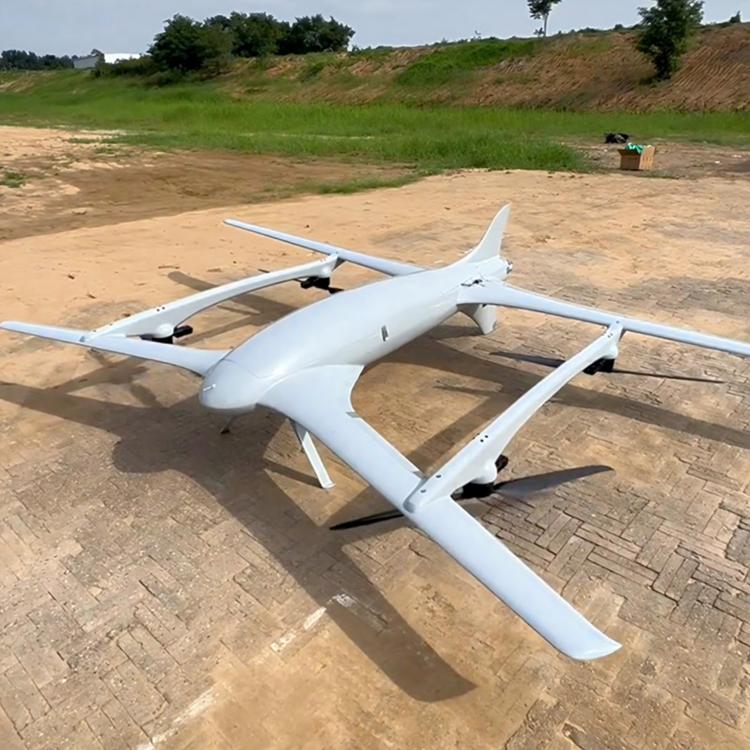

VTOL Takeoff & Landing Method

With vertical takeoff and landing (VTOL) capability, VastArrive drones can operate without runways or launch systems. This flexibility enables rapid deployment in confined, remote, or challenging locations, where traditional fixed-wing drones cannot be used.

Key Value:

Rapid deployment · Flexible operations · Suitable for confined or remote areas

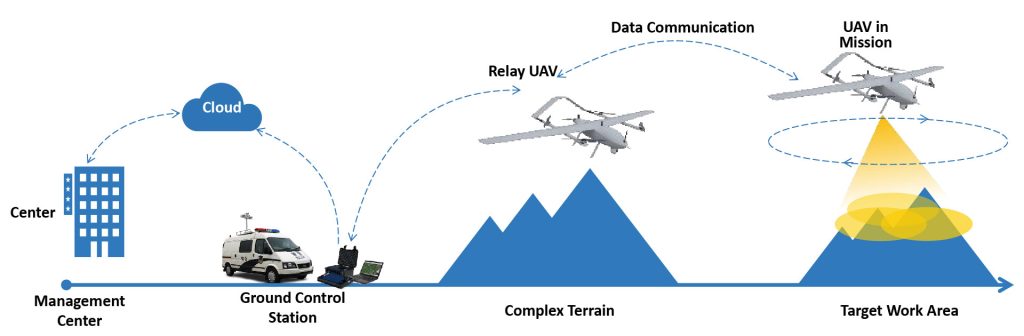

Improved Mission Efficiency per Flight

With relay-supported communication and remote mission coordination, VastArrive hybrid VTOL drones maintain stable control and data transmission during long-range operations, even in complex terrain.

Key Value:

Cost-efficient · Reduced operational cost · Higher productivity per mission

Solutions for Hybrid Fixed-Wing Drones

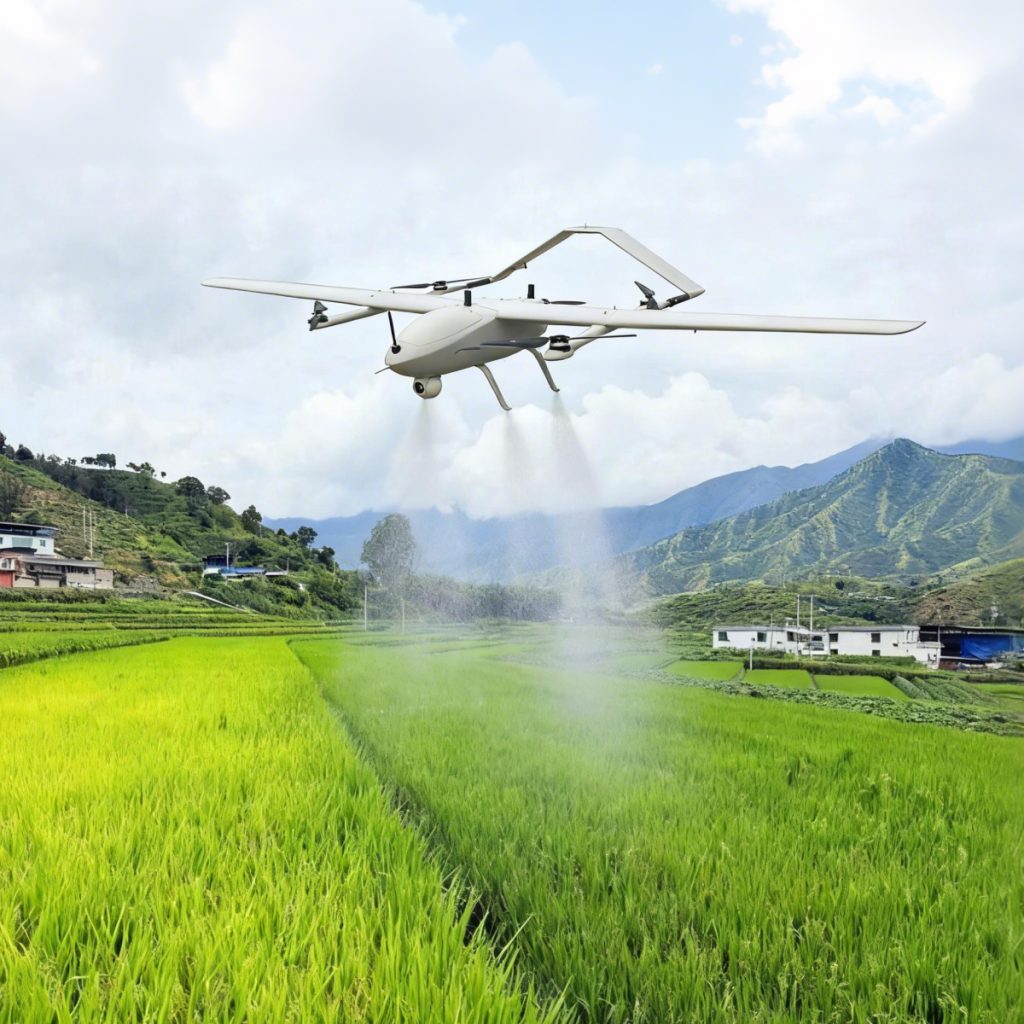

Precision Agriculture

Efficient large-scale crop monitoring, precision spraying, and field mapping. Long flight endurance allows coverage of vast farmland in a single mission, improving productivity and reducing operational costs.

Environmental Monitoring

Collect aerial imagery, environmental data, and assist research even in remote or inaccessible locations.

Power Line & Infrastructure Inspection

Replace manual inspections, solve problems in complex terrain and dangerous areas, guarantees for the safety and stability.

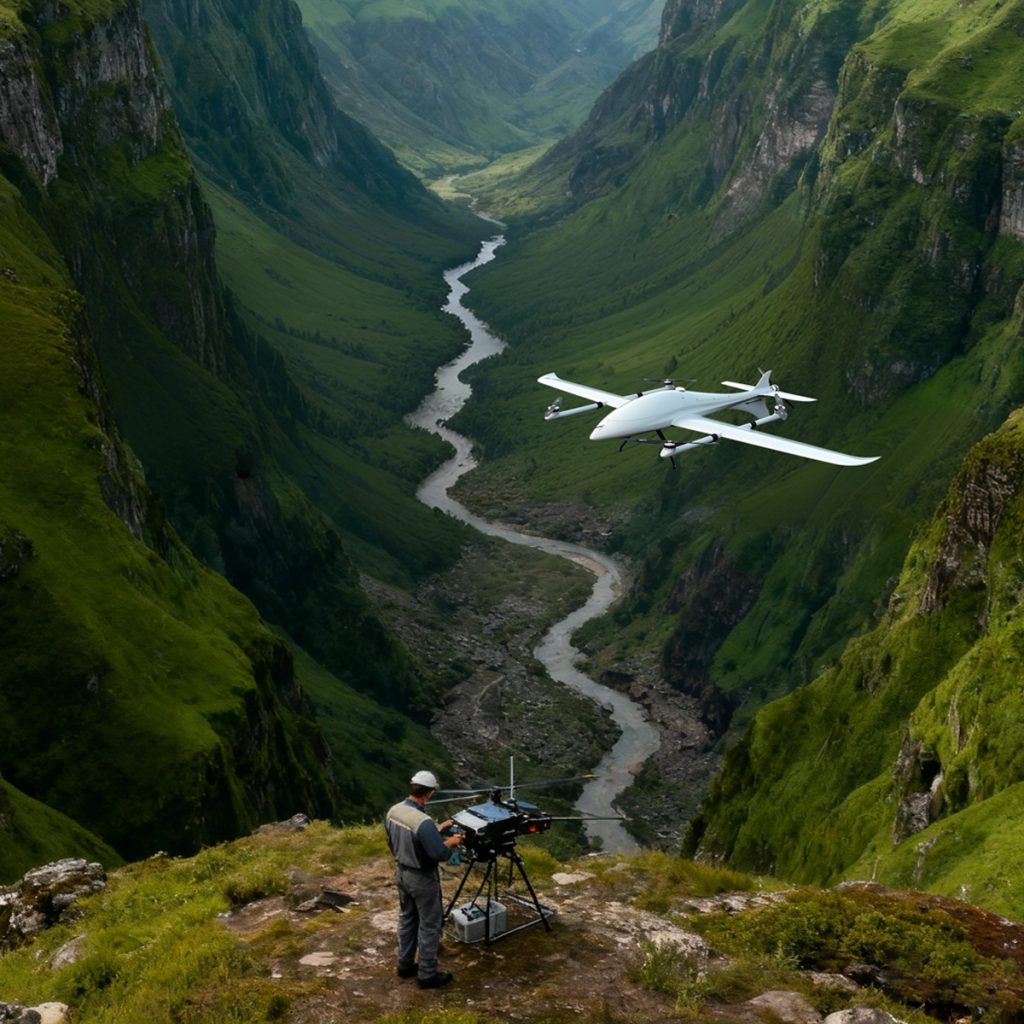

Geospatial & Land Surveying

Map topography, monitor erosion, and support land management or disaster assessment. Extended endurance and VTOL capabilities allow detailed surveys over mountains, valleys, or large construction sites.

Modular Mission Configuration Options for Hybrid Fixed-Wing Drones

All accessories and modules are configurable based on mission requirements and operating conditions.

Payload Options

Flexible Multi-Payload Pods for Different Flight Altitudes

VA-OP10

Single Light Pod

Key features:
  • Lightweight design
  • Stable imaging performance
  • Suitable for long-endurance missions

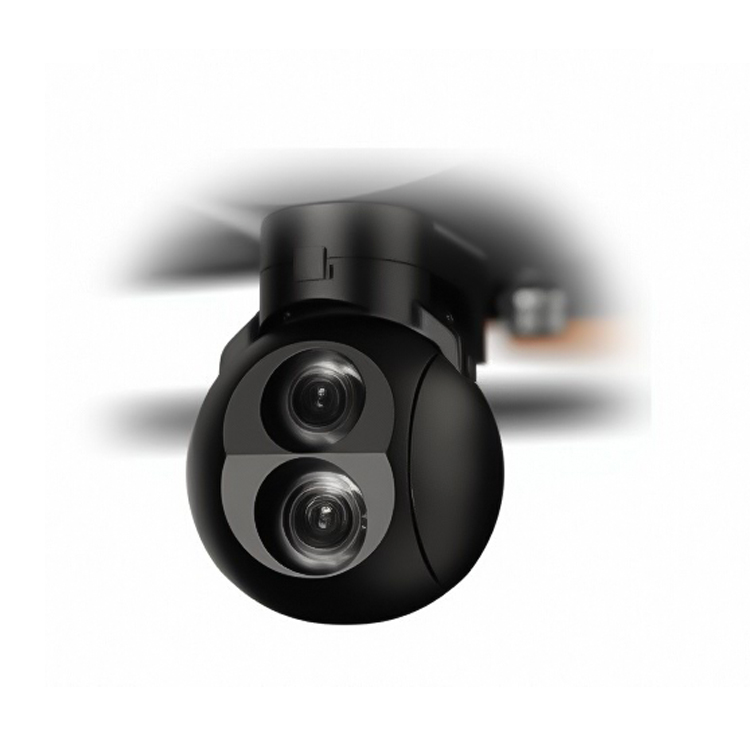

VA-OP20

Dual Light Pod

Key features:
  • Enhanced image clarity
  • Improved stabilization
  • Balanced payload-to-performance ratio

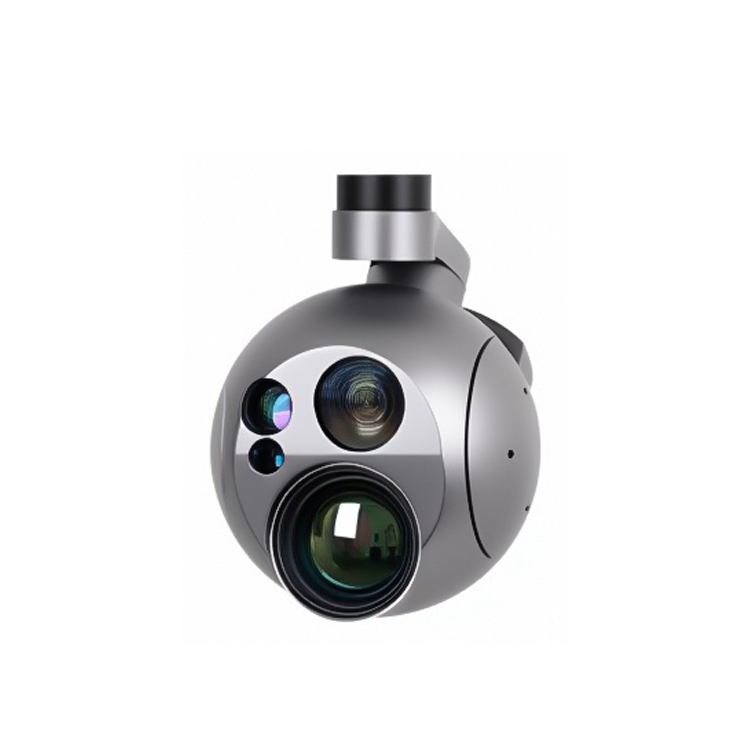

VA-OP30

Triple Light Pod – Below 1000 / 3000m AGL

Key features:
  • Professional-level imaging capability
  • Designed for complex missions
  • Reliable performance under extended operation

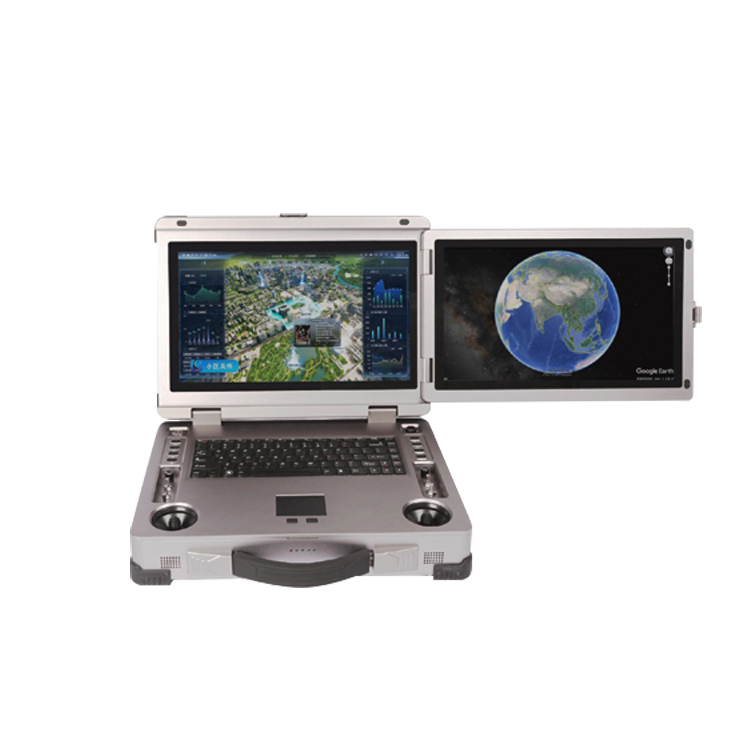

Dual-Screen Ground Control Station

By separating flight control and payload data display across two screens, operators can maintain better situational awareness and improve mission safety and efficiency.

Key advantages:
  • Dual-display layout for flight control and payload monitoring
  • Enhanced operational efficiency
  • Suitable for long-duration and complex missions
  • Supports professional and team-based operations

Certification

    • Cooperation Process

    Inquiry & Quotation

    Check Buyer Information

    Sign Contract
    Arrange Deposit

    Apply for Export License

    Produce & Testing

    Balance Payment
    Safe Shipping

    Receiving & Training

    After-sales
    Technical Support

    FAQs about Hybrid Fixed-Wing Drones

    A Fixed-Wing Hybrid VTOL (Vertical Take-Off and Landing) drone combines the benefits of both fixed-wing aircraft and rotary-wing aircraft, offering the ability to take off and land vertically like a helicopter while flying efficiently like a traditional airplane.

    Our Fixed-Wing Hybrid VTOL drones can carry payloads ranging from 8 kg to 45 kg, depending on the specific model, making them suitable for a variety of applications.

    Hybrid fixed-wing drones support modular payload configurations, including multi-payload pods, cameras, sensors, and AI onboard computers. Payload options can be customized based on mission requirements and operating altitude.

    Production Lead Time: Approximately 1-2 months. For bulk orders, the lead time will vary depending on the situation.

    Payment Method: T/T payment, 50% deposit to confirm the order + balance 50% upon completion of production.

    We provide professional fight team training and system operation procedure instructions, real-time online technical support, and spare parts assistance for repair and replacement.

    • Aerial Surveying and Mapping: Used for creating detailed maps and conducting land surveys with high-resolution aerial imagery and topographical data.
    • Agricultural Monitoring: Deployed to monitor crop health, optimize irrigation, and assess field conditions using multispectral sensors.
    • Environmental Monitoring: Utilized for collecting data on air quality, water resources, and wildlife habitats, aiding in environmental conservation.
    • Infrastructure Inspection: Employed to inspect critical infrastructure such as bridges, power lines, and pipelines, identifying potential issues early.
    • Search and Rescue Operations: Used in disaster scenarios to quickly cover large areas and locate missing persons, providing crucial real-time data.
    • Oil and Gas Exploration: Applied for monitoring pipelines, surveying exploration sites, and ensuring safety compliance in remote locations.
    • Disaster Response and Management: Essential for assessing damage, coordinating relief efforts, and delivering supplies to hard-to-reach areas during disasters.
    • Precision Agriculture: Implemented for optimizing planting, fertilization, and harvesting by analyzing field variability and improving yields.
