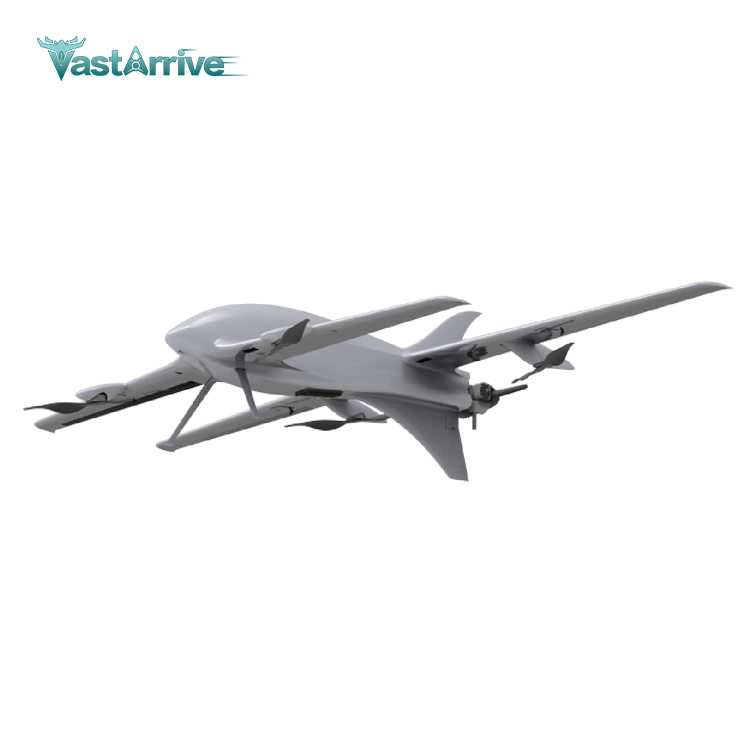

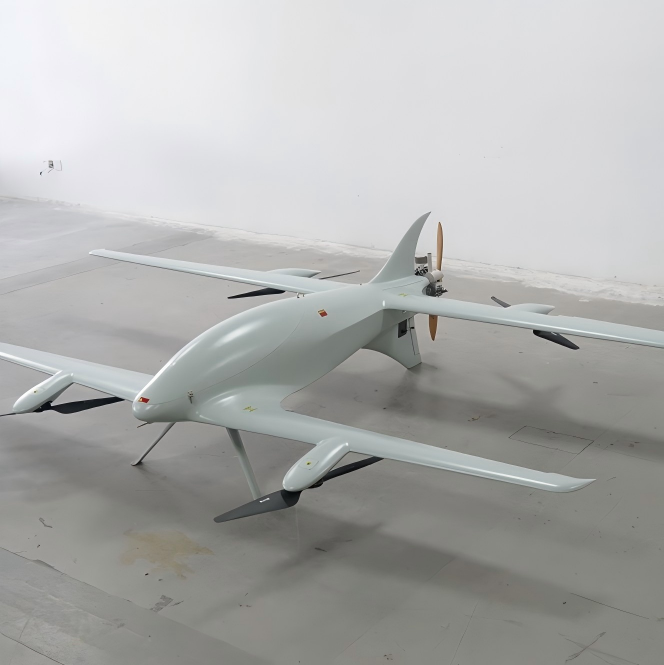

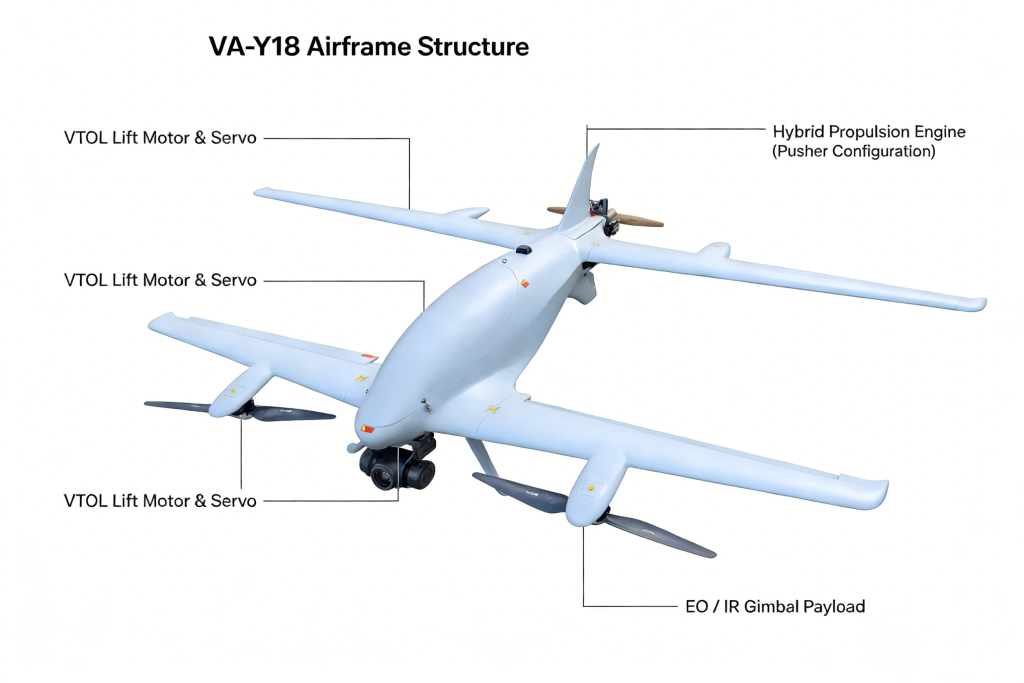

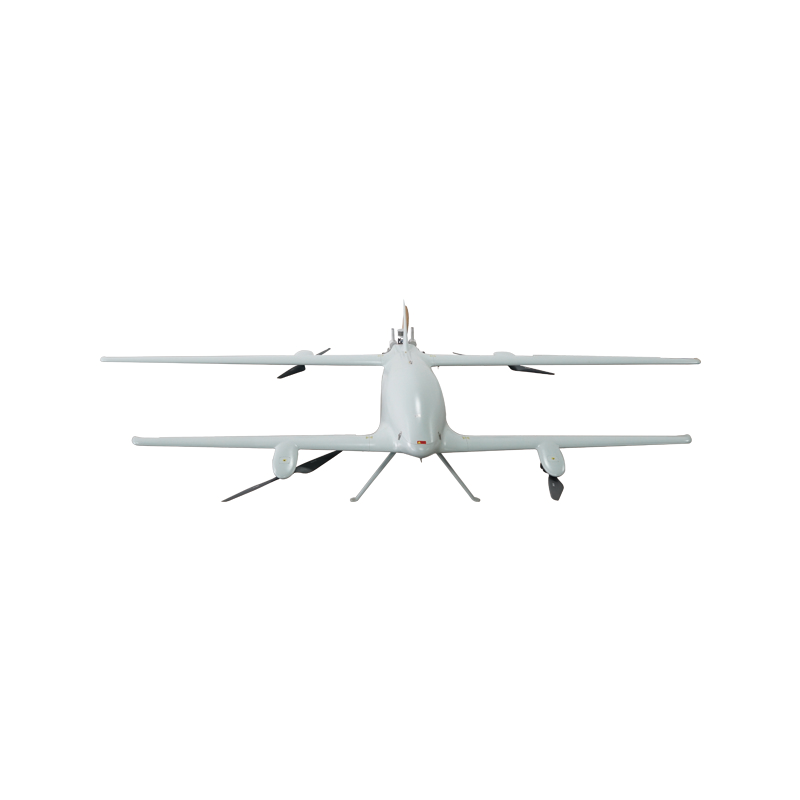

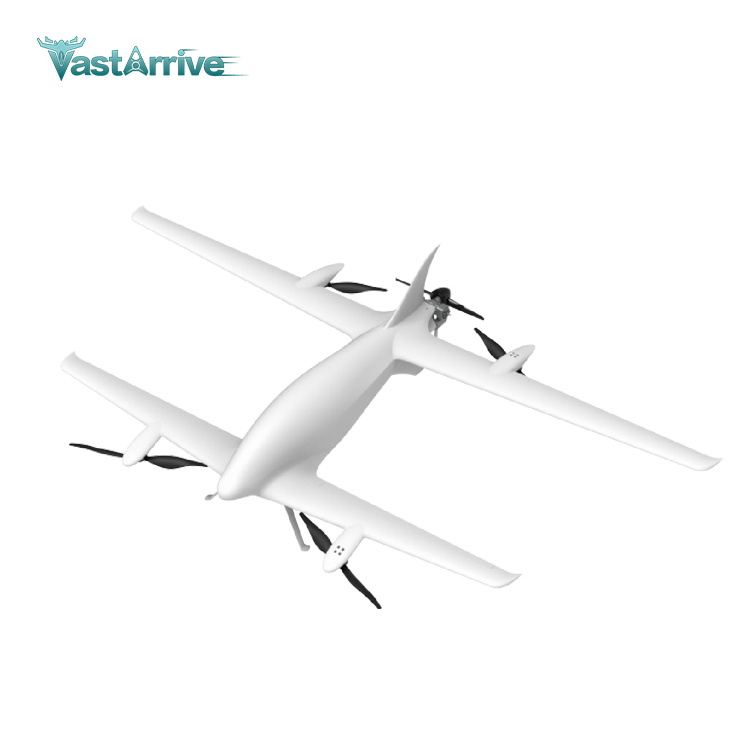

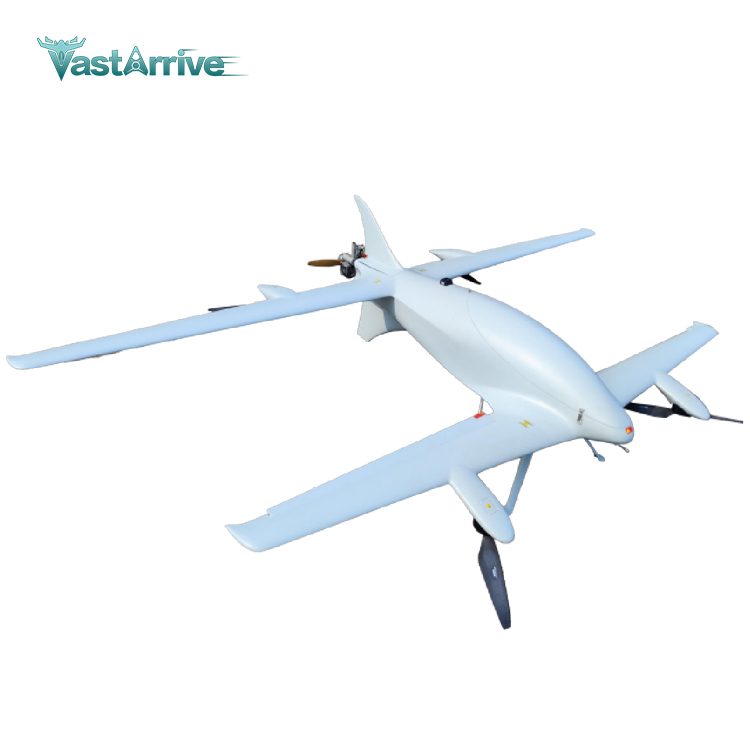

VA-Y18 is a hybrid VTOL fixed-wing UAV featuring a modular and open system architecture. It supports multi-payload integration and flexible mission configurations, ensuring compatibility with a wide range of sensors and operational requirements.
Engineered for complex and harsh environments, the Y18 offers stable autonomous operation, reliable communication, and robust environmental protection, making it well-suited for long-endurance missions in challenging terrain and weather conditions.
Product Overview

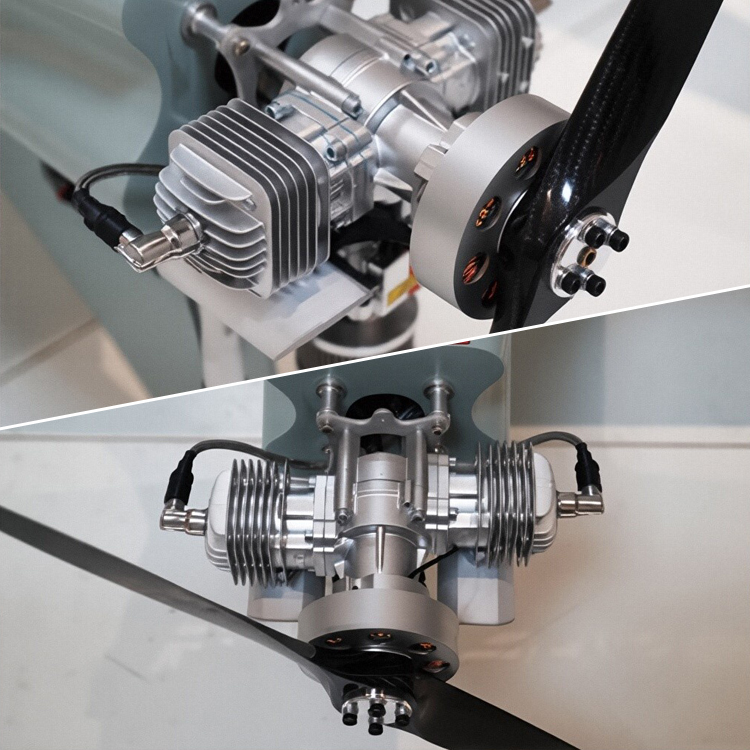

10H Ultra-Long Endurance

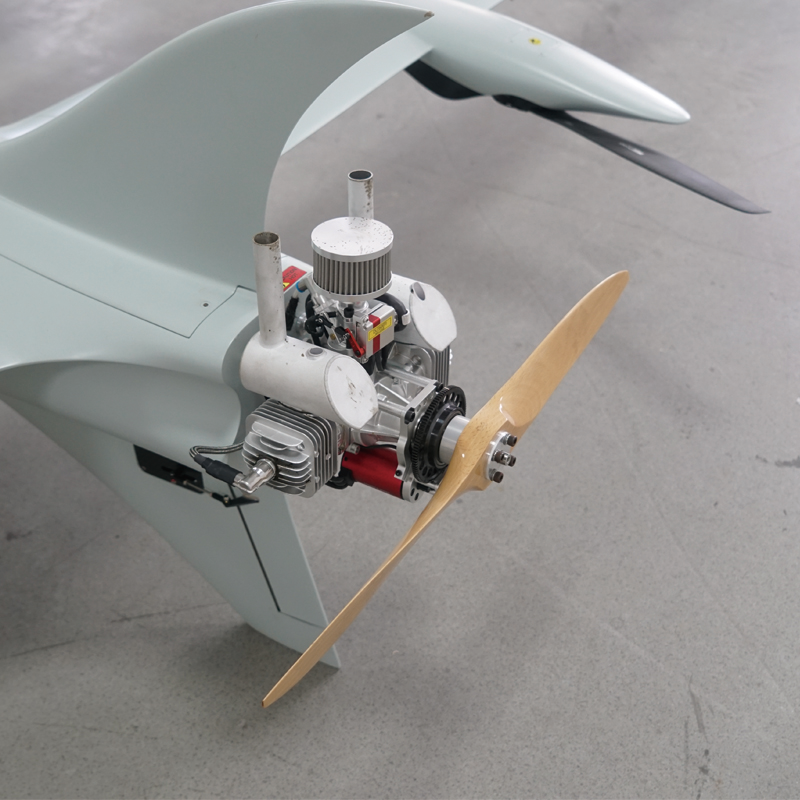

Delivers up to 10 hours of flight time with a 3 kg payload, powered by a self-starting integrated engine-generator with electronic fuel injection for stable performance at high altitudes.

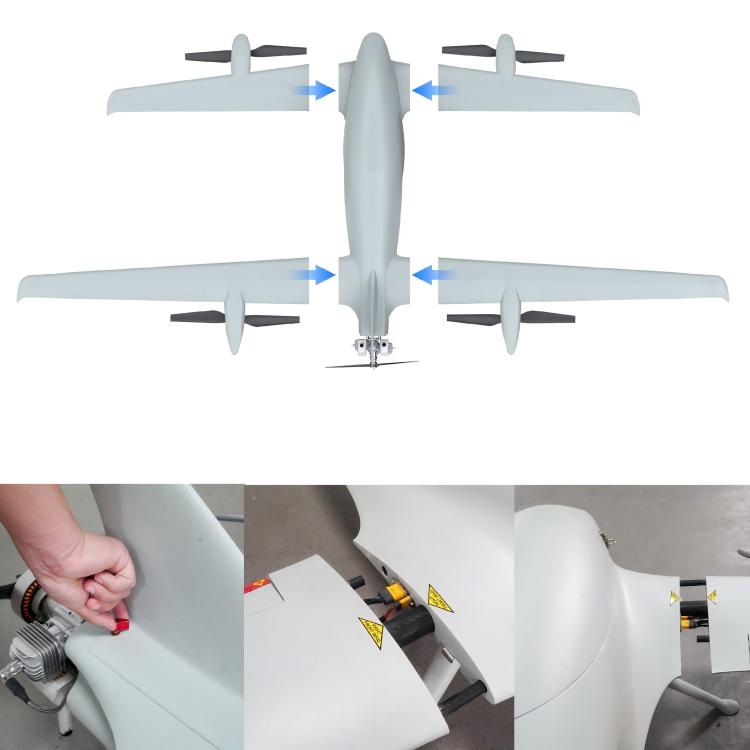

Rapid Deployment
VA-Y18 drone adopts a quick-release design, allowing for fast assembly and pre-flight preparation within 10 minutes. The modular fuselage and wing structure greatly simplify transportation.
Real-Time Fuel Level Measurement
VA-Y18 UAV is capable of real-time fuel level measurement,enabling continuous monitoring of the flight status.

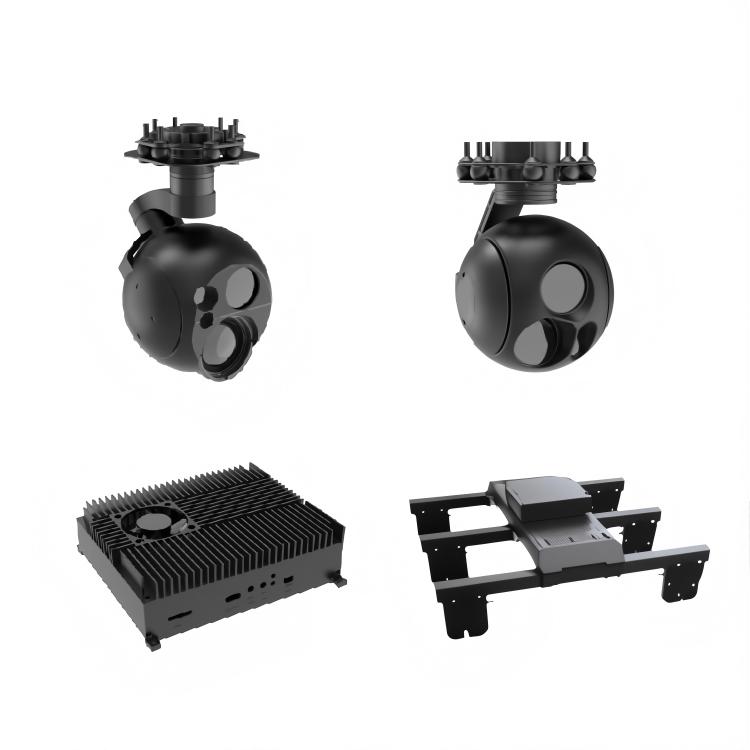

Modular Multi-Payload Capability
Supports flexible payload integration to meet diverse mission requirements across multiple application scenarios.

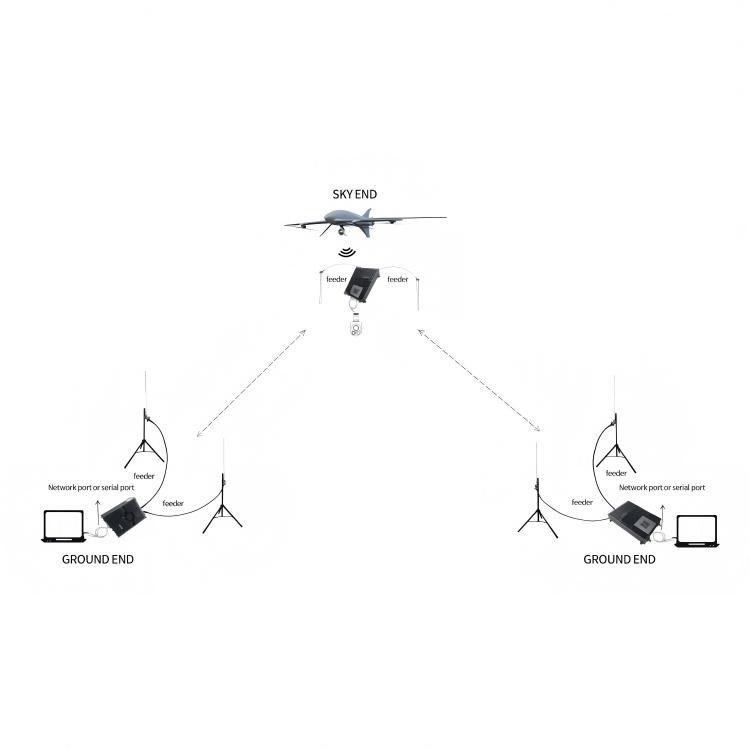

BLOS-Ready Long-Range Operations
Supports beyond-line-of-sight missions through stable communication links, autonomous flight control, and relay-enabled operations for large-area and remote deployments.
Technical Specifications
| Body Length | 2001 mm (Gasoline Version) |
| Body Height | 696 mm |
| Wingspan | Rear Wing: 3744mm; Front Wing: 2820 mm |
| Maximum Load Capacity | MGTOW* Fuel & Payload (40kg) |
| Safe Level Flight Speed | 22-40 m/s |
| Cruising Speed | 25 m/s |
| Fuel Consumption at Full Load | 1.22 L/h |
| Endurance Time | 10 hours @ 3kg Payload |
| Maximum Range | 1220km |
| Operating Altitude | 5000m |
| Operating Temperature | -20°C to 45°C |
| Wind Resistance | Level 5 for Takeoff/Landing Level 6 for Flight |
| Launch Method | No launch system or runway required Vertical takeoff & landing |
| Recovery Method | VTOL Landing |
| Packaging Dimensions | 2120 x 900 x 640mm |
| Protection Level | IPX4 |
Payload & Configuration Options
The VA-Y18 supports flexible payload integration and mission-specific configurations to meet diverse operational requirements.

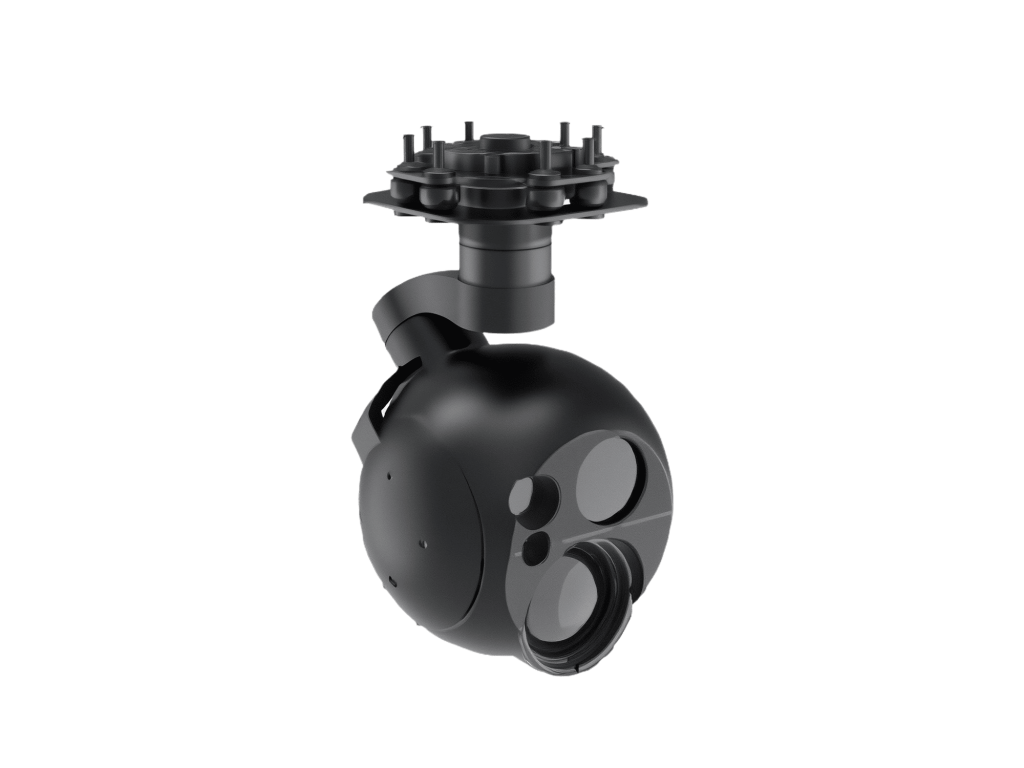

EO / IR Gimbal Payload
Modular gimbal payload supporting high-performance electro-optical (EO) and infrared (IR) sensors. Ideal for day-and-night observation, mapping, target tracking, and environmental monitoring.

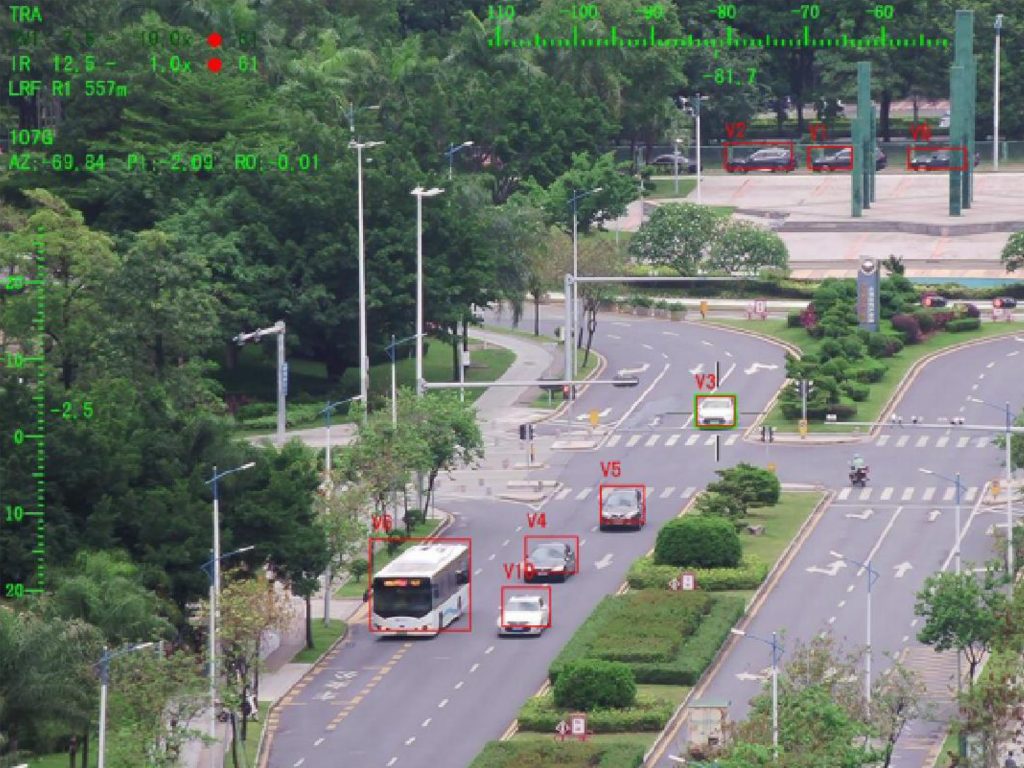

AI-Enabled Payload Processing
Optional AI onboard computing enables real-time target recognition, classification, and intelligent data processing.

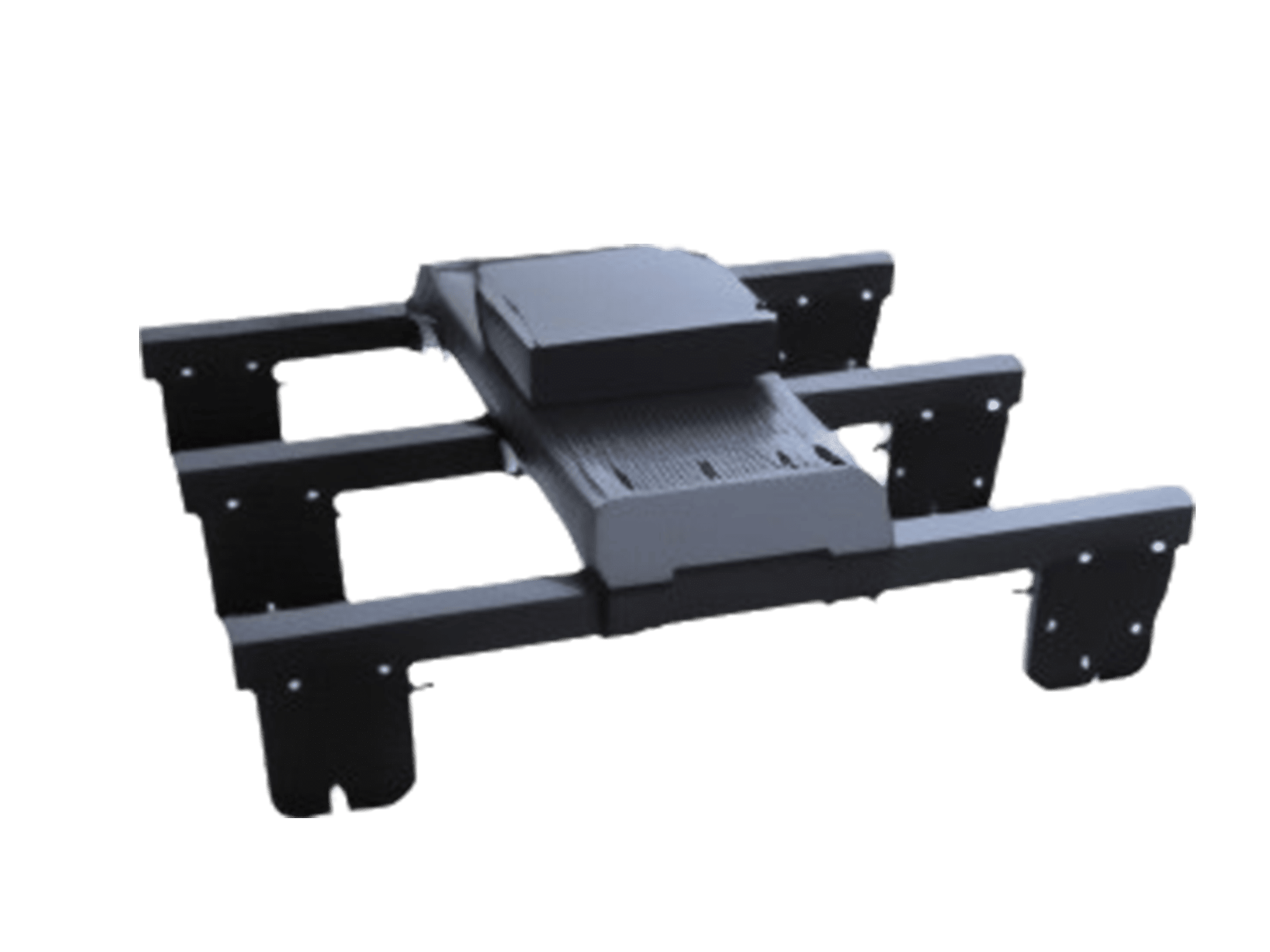

Electromagnetic Launch System
Ground-based electromagnetic launch systems are ideal for operations in confined, remote, or unprepared environments where conventional launch methods are limited.
Application Scenarios
Mapping & Surveying
Designed for large-area mapping and geospatial data collection, the VA-Y18 supports stable long-endurance flights for photogrammetry, terrain surveying, and 3D modeling.

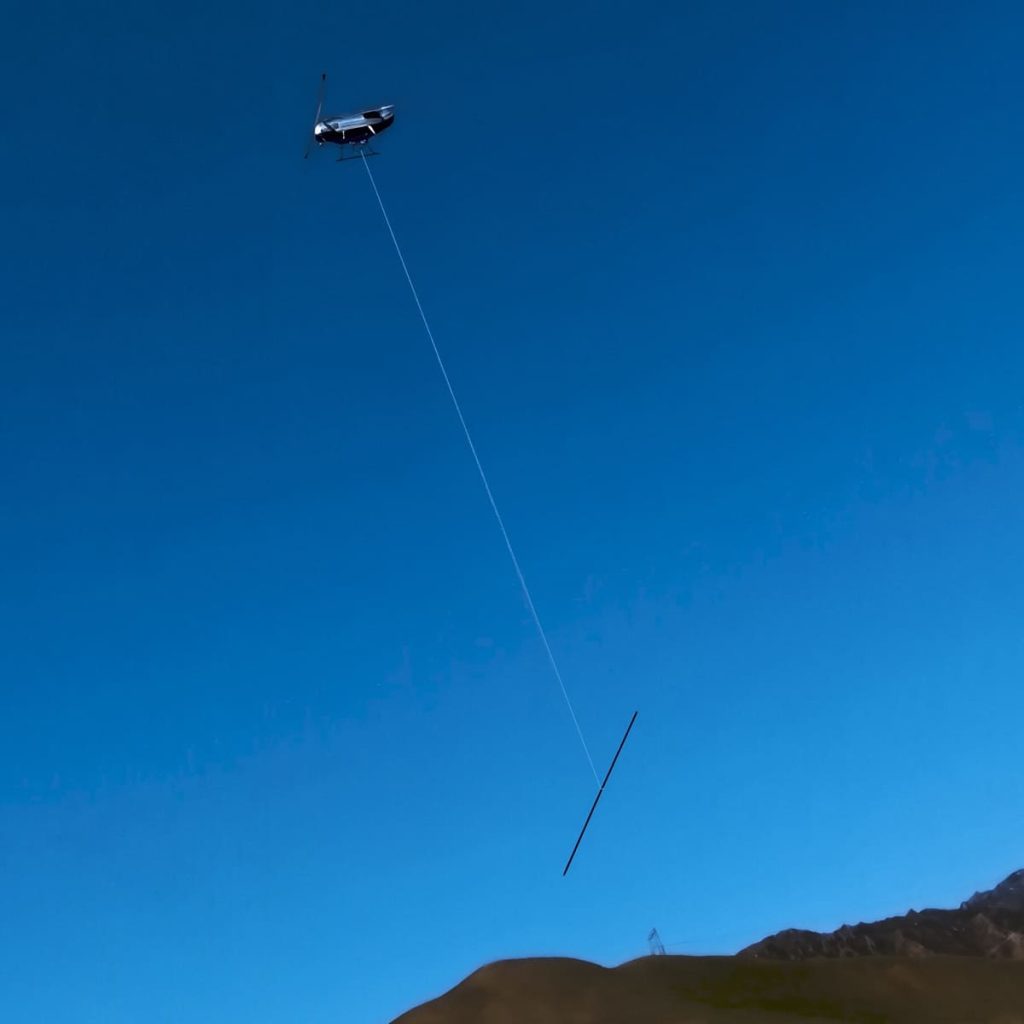

Power Line Inspection
Ideal for long-distance power line inspection, the VA-Y18 enables beyond-line-of-sight operations with stable communication and reliable flight performance.
Case Reference
POI Follow & Orbit Function
Automatically tracks and circles designated targets, maintaining stable altitude and camera focus throughout the mission.
Typical Use:
- Infrastructure inspection
- Environmental observation
- Site monitoring
Flight Simulation Training System
Supports mission rehearsal and operator training through realistic flight simulation, reducing operational risk before live deployment.
Typical Use:
- Safety preparation
- Pilot training
- Mission planning
ADS-B Civil Aviation Collision Avoidance (Optional)
Enhances flight safety by detecting nearby manned aircraft during long-range or shared airspace operations.
Typical Use:
- Mapping missions
- Environmental monitoring
- Operations near civil air routes
