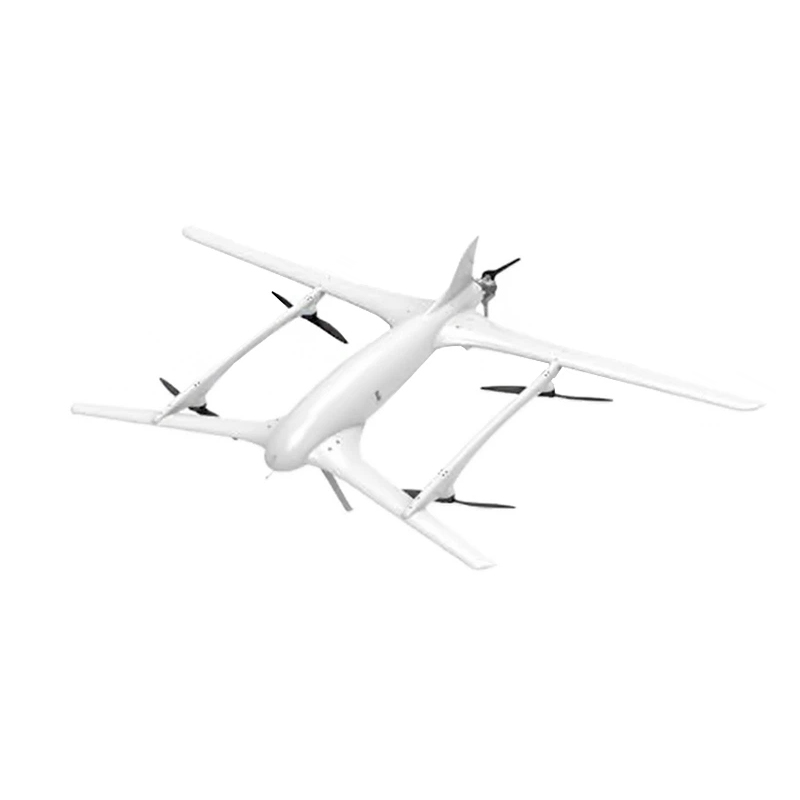

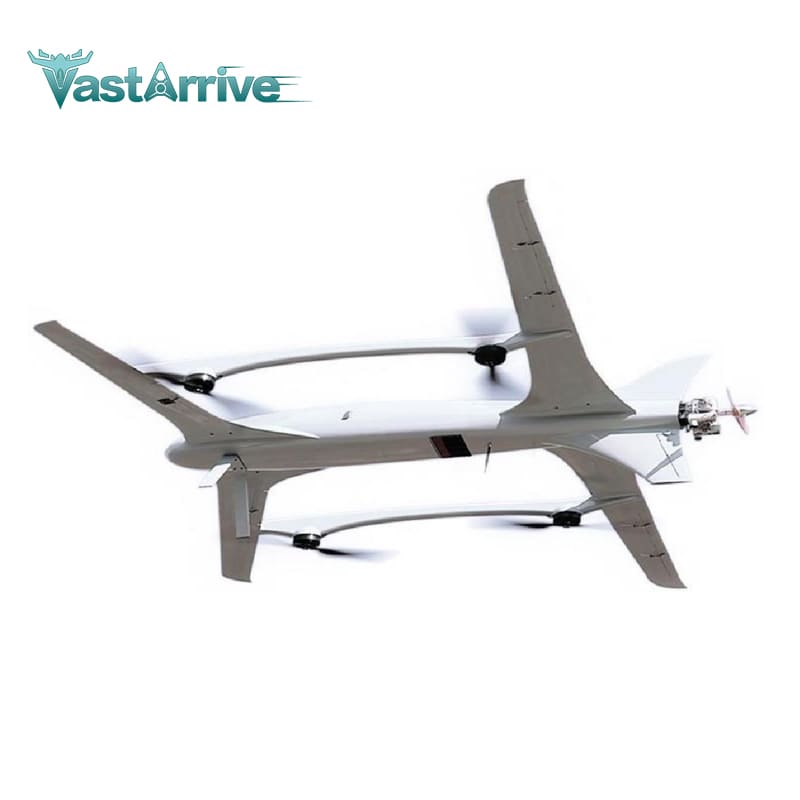

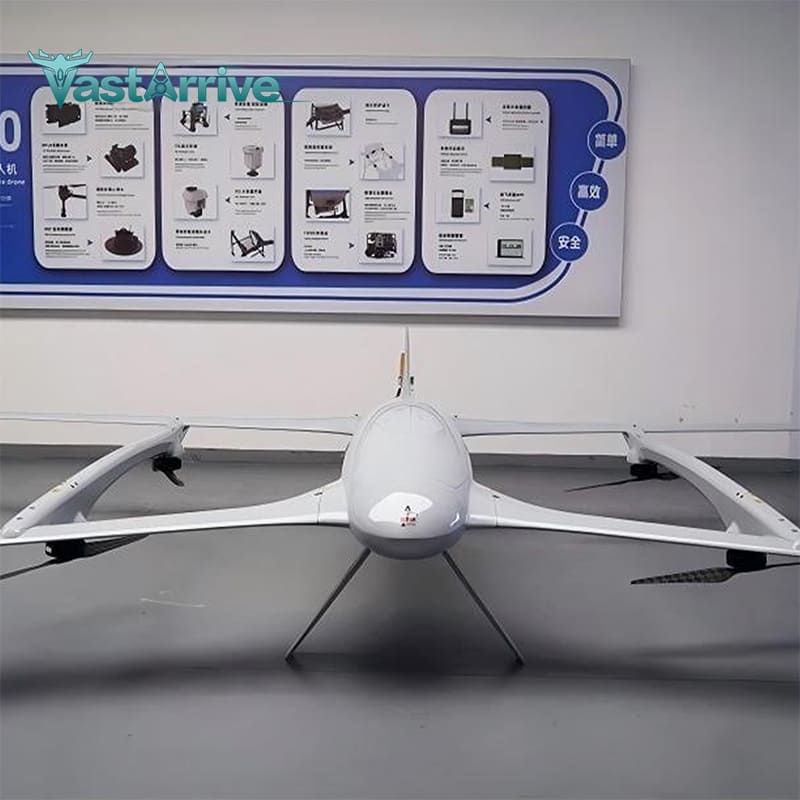

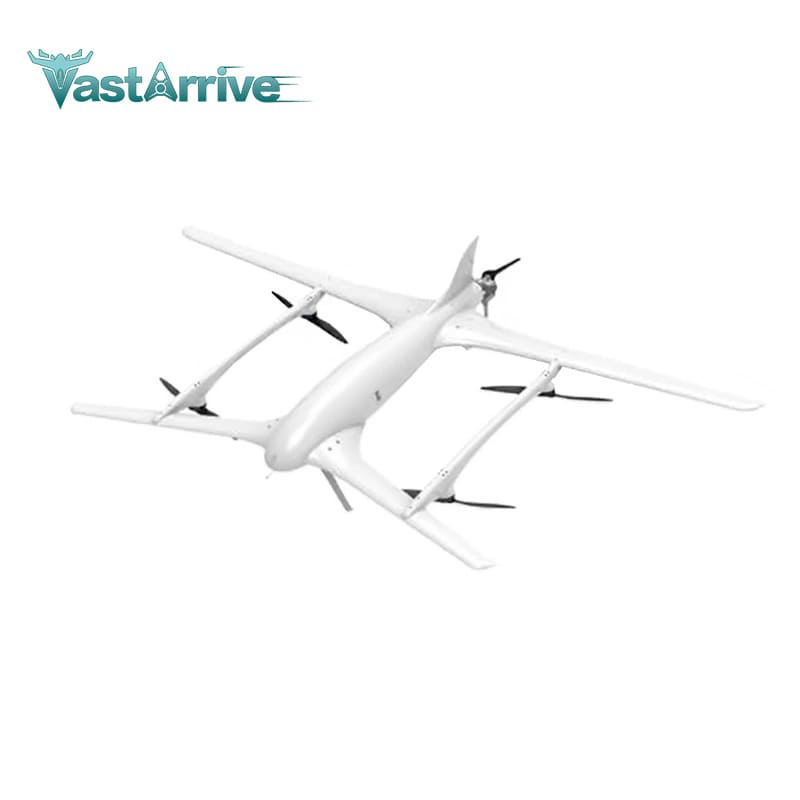

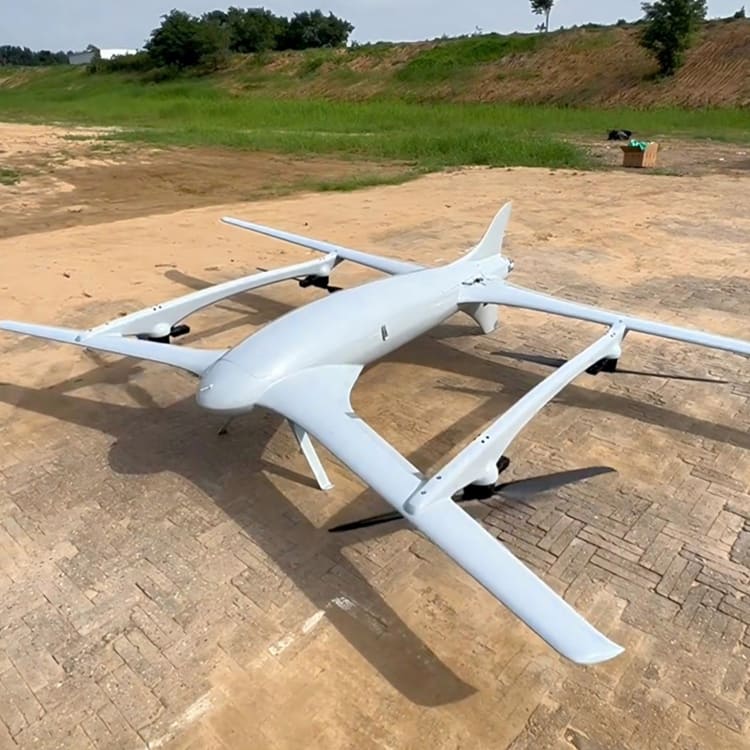

The VA-Y45 UAV features a tandem layout and tail-pusher configuration. It adopts an all-fuselage construction using aviation-grade carbon fiber composite materials, which endows the platform with prominent structural advantages of high strength and light weight. This design enables the VA-Y45 to achieve excellent environmental adaptability and operational flexibility, making it well-suited for a wide range of application scenarios.
Details
Product Features
Aerodynamic Layout and Takeoff and Landing
Rapid Deployment.
Safety and Reliability
Efficiency and Practicality
Important Parameters
| Overall Length | 2915 mm |
| Height | 930 mm |
| Wingspan | Rear wing 5100mm & Canard wing 3530mm |

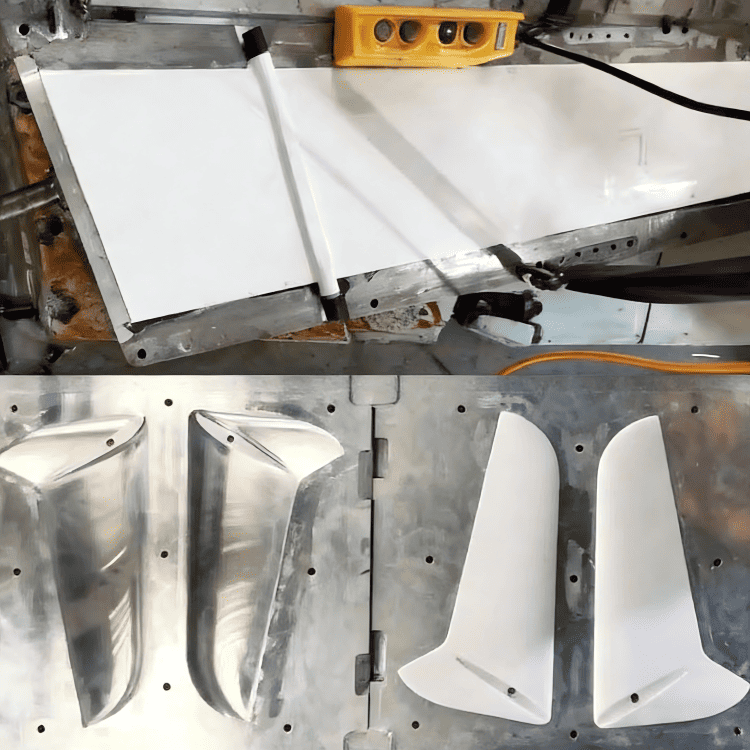

| Airframe Material | Aerospace carbon fiber composite material |
| Engine | Gasoline engine/Heavy oil engine |

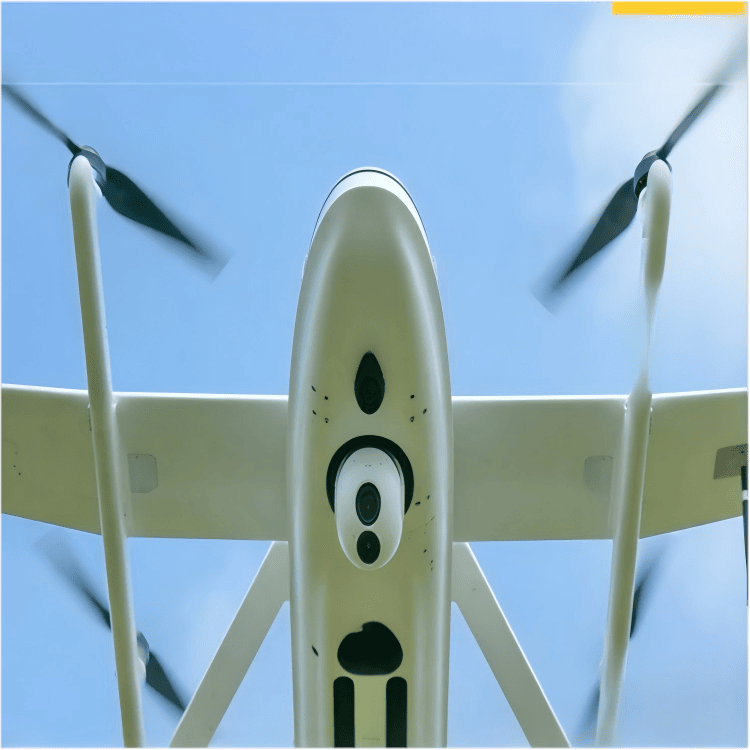

| Payment Capacity (including fuel) | 45kg |
| Maximum Safe Takeoff Weight | 100 kg |
| Safe Level Flight Speed | 28~45 m/s |
| Cruise Speed | 30 m/s |
| Fuel Tank Capacity | 18L |
| Full Load Fuel Consumption | Gasoline 4L/h; Heavy fuel oil 3.5L/h |
| Maximum Range | 810 km |
| Service Ceiling (Gasoline) | 3500m |
| Service Life (heavy fuel) | 5000m |
| Operating Temperature | ‘-20C-45℃ |
| Wind Resistance Rating | Takeoff and landing level 5 / Flight level 6 |
| Packaging Dimensions | 3050800950 mm |
Professional Technical Support
We are committed to ensuring every customer receives timely and professional technical support. Our engineers can provide remote product installation guidance, software updates, and drone flight technical support. Customers can also arrange for in-person training at our factory.
Customizable for diverse application scenarios
Complete drone flight training
Online support from a team of professional after-sales engineers
Comprehensive IT documentation support
Regional distributor and partner support
