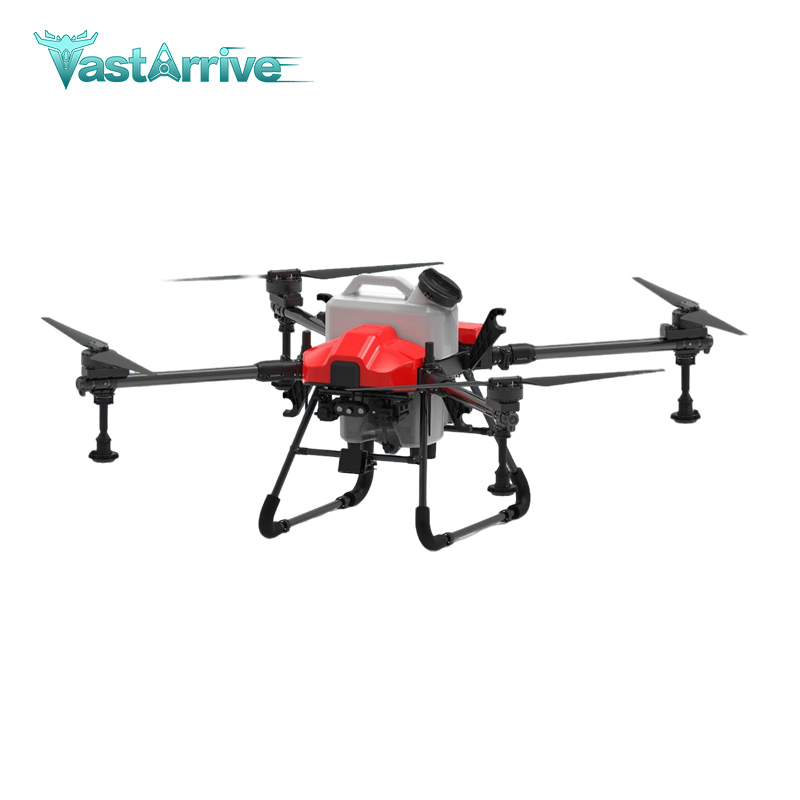

The VA-X430 is a professional agricultural drone equipped with a 30-liter water tank and a solid tank, suitable for various agricultural spraying and irrigation needs in multiple scenarios.
Product Overview
Key Features
Foldable Downward Arm Structure
Adaptive folding design reduces structural play and enhances in-flight stability.
High-Performance Power System
41-inch carbon fiber nylon propellers deliver strong thrust and up to 13 m/s flight speed.
Modular Split-Frame Design
Detachable high-strength frame structure for easier maintenance and lower servicing cost.
JIYI K++V2 Integrated Flight Control
Supports route planning, can detect the amount and power of the medicine, and has voice announcements for fixed-point return.
Application Solution
Orchard Spraying
Tea Plantation Spraying
Paddy Field Spraying
Cornfield Spraying
Technical Parameters
| Project | Specific Parameters |
| Operating Voltage(V) | 51.8~54.6V (14S) |
| Drone Net Weight(KG) | 35.5kg |
| Battery Weight | 9100±200g |
| Battery | 14S 28000mAh ×1 |
| Charging Time | 15–25 minutes |
| Recharge Cycles | 300–500 cycles |
| Payload(KG) | 30KG |
| Max. Takeoff Weight(KG) | 65.5kg |
| Flight Speed | 1~13m/s |
| Spray Width | 8~10m |
| Flight Controller | JIYI K++V2 |
| Power System | XRotor X11, 41-inch propeller |
| Spraying System | ①Pressure Spray ②Centrifugal Spray |
| Spraying Flow | Max. 16L/Min |
| Flight Time | Empty Tank: 15~25Min Full Tank: 8~12Min |
| Working Efficiency | 1~3mu/Min |
| Outer Packing Size | 96×95×90CM |
VA-X420 Technical Parameters
| Project | Specific Parameters |
| Operating Voltage(V) | 52.5~54.6V (14S) |
| Drone Net Weight(KG) | 30.5kg |
| Battery Weight | 9100±200g |
| Battery | 14S 19000mAh / 28000mAh ×1 |
| Charging Time | 15–25 minutes |
| Recharge Cycles | 300–500 cycles |
| Payload(KG) | 00KG |
| Max. Takeoff Weight(KG) | 50.5kg |
| Flight Speed | 1~13m/s |
| Spray Width | 5~8m |
| Flight Controller | JIYI K++V2 |
| Power System | XRotor X9 plush 36-inch propeller |
| Spraying System | ①Pressure Spray ②Centrifugal Spray |
| Spraying Flow | Max. 8L/Min |
| Flight Time | Empty Tank: 15~25Min Full Tank: 8~12Min |
| Working Efficiency | 1~3mu/Min |
| Outer Packing Size | 88×90×85CM |
Case Reference
Spraying Pesticides in the Rice Field
Using a spraying system to apply pesticides to the rice fields has significantly improved the efficiency of pesticide application.
- Continuous tethered operation
- Stable spray distribution
- Large-area coverage efficiency
Irrigation of the corn field with water sprinkling
Using spraying drones for field irrigation and drug spraying has enhanced work efficiency and reduced the burden on human labor.
- Controlled flight positioning
- Uniform spray application
- Suitable for intensive agricultural plant cultivation
Standard Delivery Configuration
This standard package includes:
（Supports parameter customization）
FAQ
Certification
Professional Technical Support
We are committed to ensuring every customer receives timely and professional technical support. Our engineers can provide remote product installation guidance, software updates, and drone flight technical support. Customers can also arrange for in-person training at our factory.
Customizable for diverse application scenarios
Complete drone flight training
Online support from a team of professional after-sales engineers
Comprehensive IT documentation support
Regional distributor and partner support
