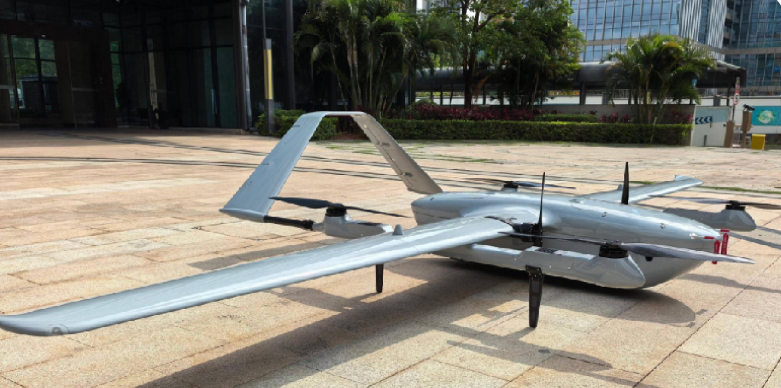

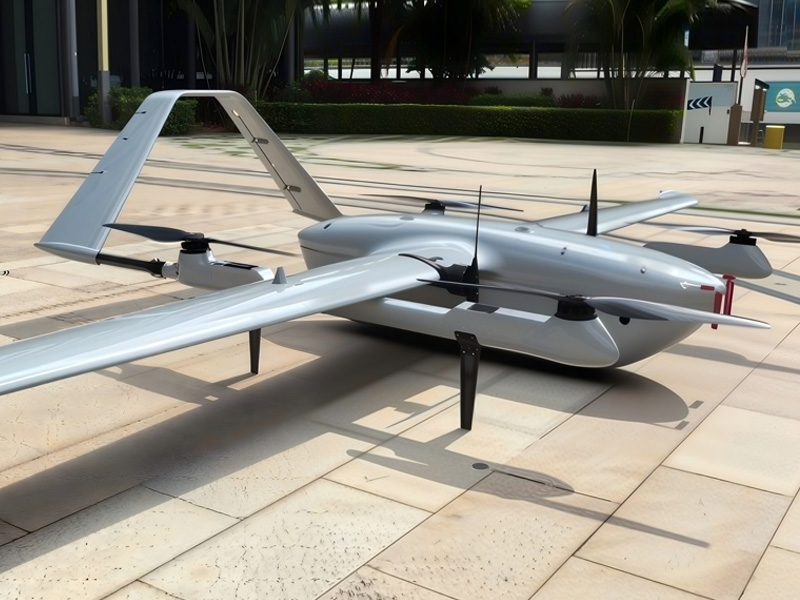

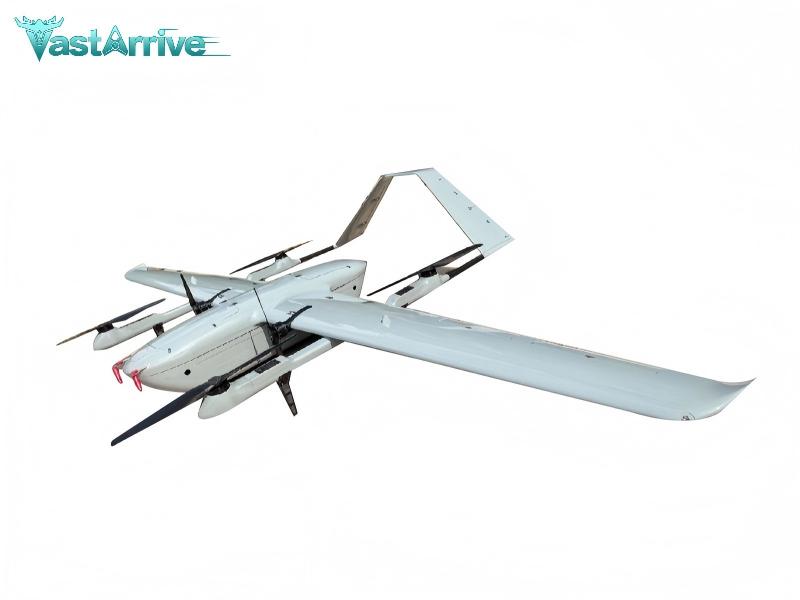

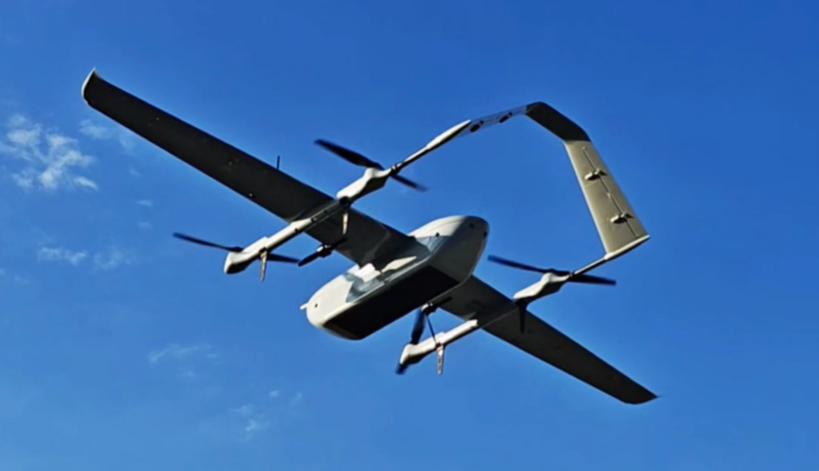

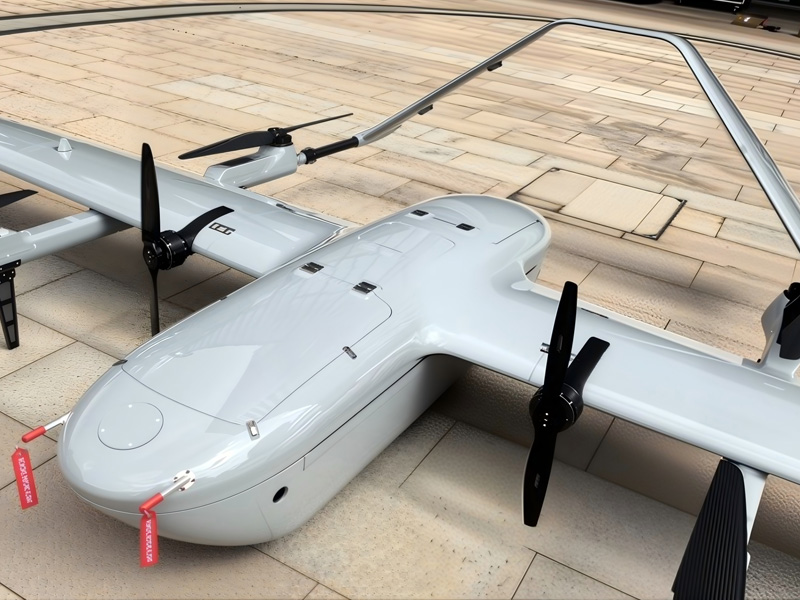

The VA-D60 is an all-electric, twin-rotor, vertical takeoff and landing (VTOL) fixed-wing unmanned aerial vehicle (UAV) equipped with an extra-large cargo bay specifically designed for logistics transportation. The UAV utilizes an aerospace-grade carbon fiber composite material structure, offering an excellent strength-to-weight ratio, making it particularly suitable for long-duration missions and diverse applications requiring rapid payload switching. It has a maximum payload capacity of 50 kg and can carry 50 kg of cargo. The platform also features self-organizing network capabilities, enabling tasks such as formation flying, takeoff and landing from mobile platforms, and target tracking.
Key Features of VA-D60 Drone
50kg Payload(Max)
100min Endurance(Max)
Dual Cruise Engine
Pure Electric
Separate Cargo Container
Supports ADS-B
Product Overview
Why Choose VA-D60 Electric Fixed-Wing VTOL Drone?

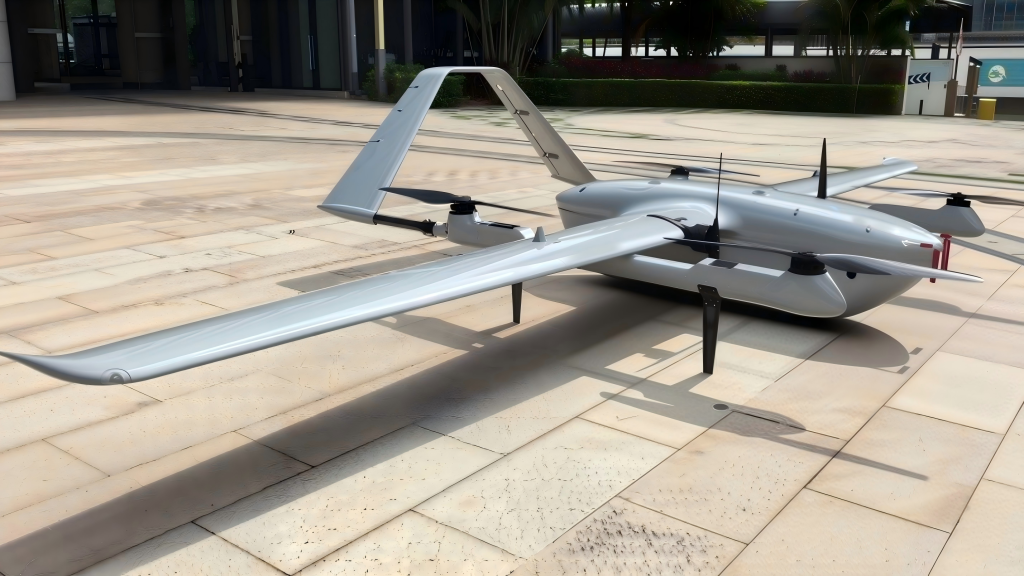

With an extended flight time of 100 minutes
With a payload of 30 kg, it can achieve a flight time of 100 minutes and a flight distance of over 100 km; when the payload is increased to 50 kg, its flight time can be extended to 60 minutes and the flight distance to over 70 km.

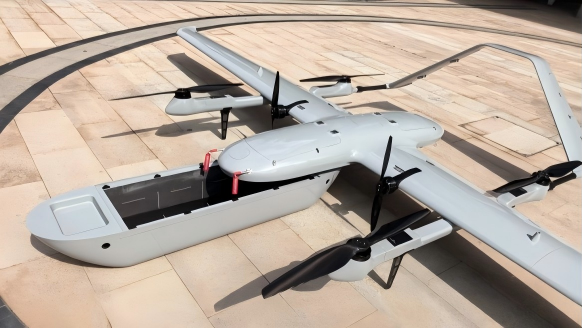

With a payload capacity of 50 kg

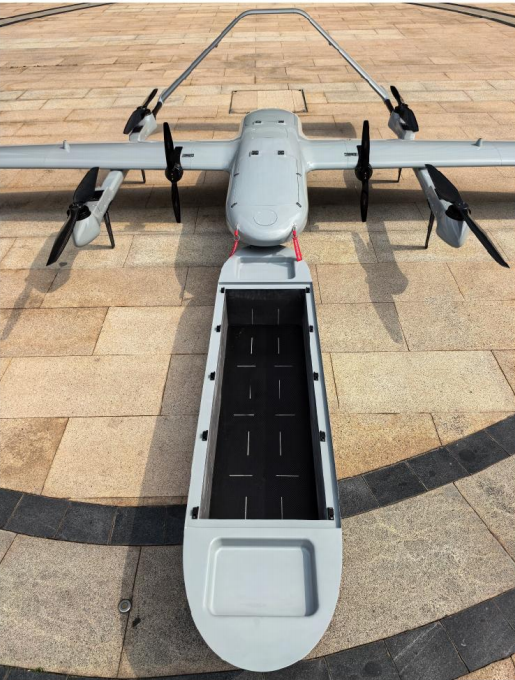

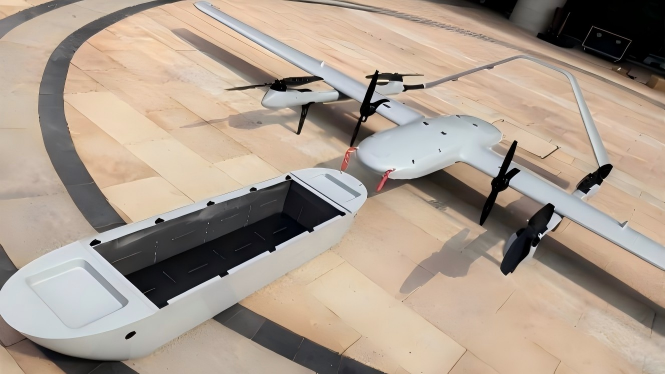

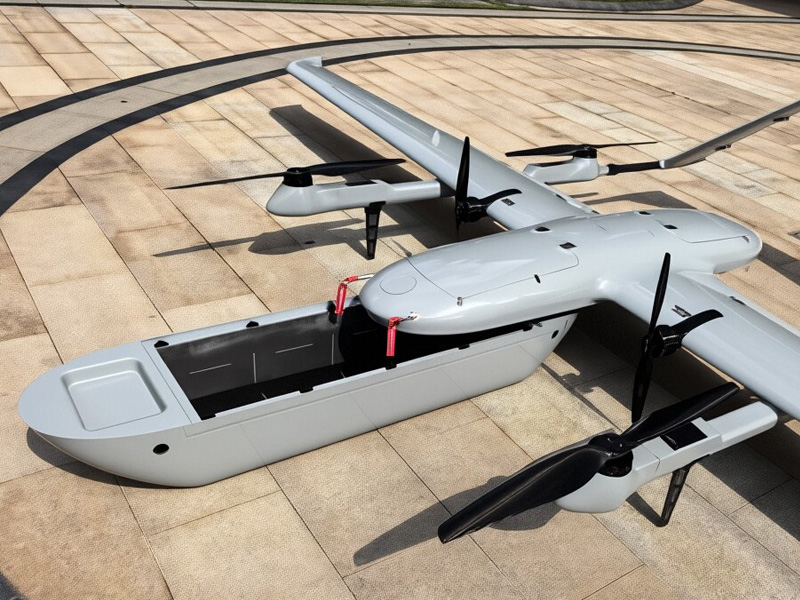

Featuring a highly efficient aerodynamic design, it has a maximum payload of 50 kg and is specifically designed for cargo transportation. Its cargo compartment can be separated from the fuselage, making loading and unloading more convenient.

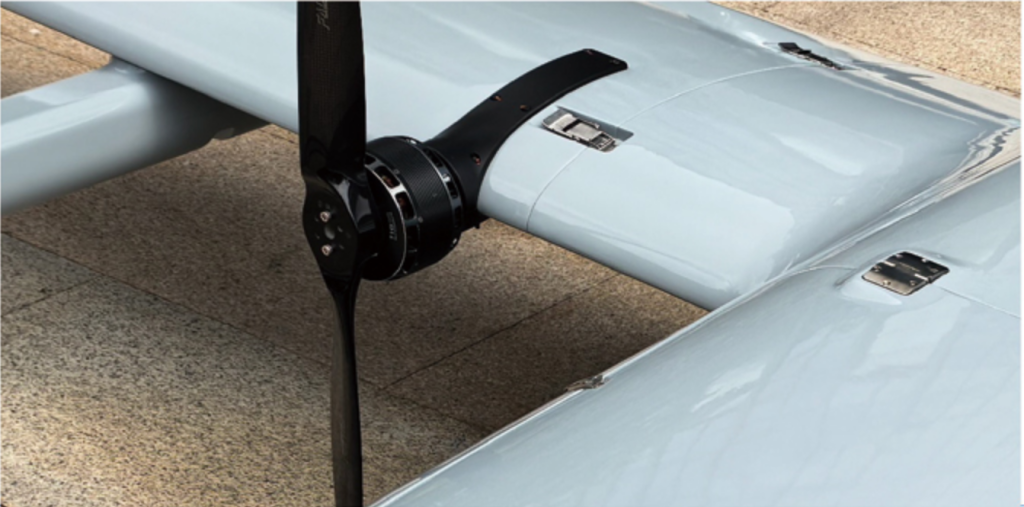

Redundant Safety
Equipped with redundant ailerons, tail control surfaces, and advanced flight control algorithms, it can maintain controllable flight even if a single control surface fails, and can enter protection mode to carry out emergency landing.
High Efficiency & Practicality
Industrial motor IP45, high power, long endurance, low cost, and low noise. Depending on different mission requirements, it can be paired with different pods to complete missions efficiently and with high precision.
Important Parameters
| Body Size | 6540 x2974 x 1000 mm | Maximum Cruising Altitude | 3000 m |
| Maximum Takeoff Weight | 170kg | Operation Temperature | -20-60°C |
| Maximum Load Capacity | 50 kg | Maximum Flight Time (30kg) | 100min |
| cruising Speed | 95 km/h | Maximum Flight Time (50kg) | 60min |
| Maximum Flight Speed | 130 km/h | Flight Distance (30kg) | >100km |
| Control Radius (Customizable) | 100 km | Body Protection Level | IPX4 |
| Maximum Climbing Speed | 3 m/s | Navigation Anti-jamming Module (8 Elements) | The multi-element, full-band GNSS anti-jamming antenna has 100 dBc interference suppression capability and supports anti-jamming reception of GPS (L1/L2/L5), BeiDou (B1/B2/B3), GLONASS (G1/G2) and Galileo (E1/E5a/E5b) bands. |
| Maximum Descent Speed | 4 m/s | ||
| Maximum Takeoff Altitude | 3000 m | ||
| Maximum Wind Resistance Level | Level 6 |
Accessories Details
Electro-optical Pod
Thermal Imaging Camera
Resolution 640×512
Pixel count 12µm
Focal length 35mm
Long-zoom Camera
40x optical zoom
Focal length 4.25~170mm
5.13W pixels
Rangefinding Camera
Range: 20m~3000m
Range accuracy: ±1m
Range frequency: 1~10 Hz
40x Tri-Light AI Tracking Pod, Multi-Target Tracking, Recognition, Positioning System
Pod Parameters
| Visible light | Thermal imaging | Multi-target tracking | |||
| Band | 0.4μm- 0.9μm | Band | 8μm – 14μm | Target Type | People, vehicles, ships, airplanes |
| Resolution | 1920×1080 | Resolution | 640×512 | Recall | ≥90% |
| Focal Length | f=4.25mm-170mm | Focal Length | 35mm/F1.0 | Precision | ≥80% |
| Horizontal Field of View | 62.13°- 1.73° | Field of View | 12.4°× 9.9° | Minimum Target Size | 32×32@1080P |
| Optical Zoom | 40 times | Focal Length | Support | Number of Tracked Targets | ≥20 |

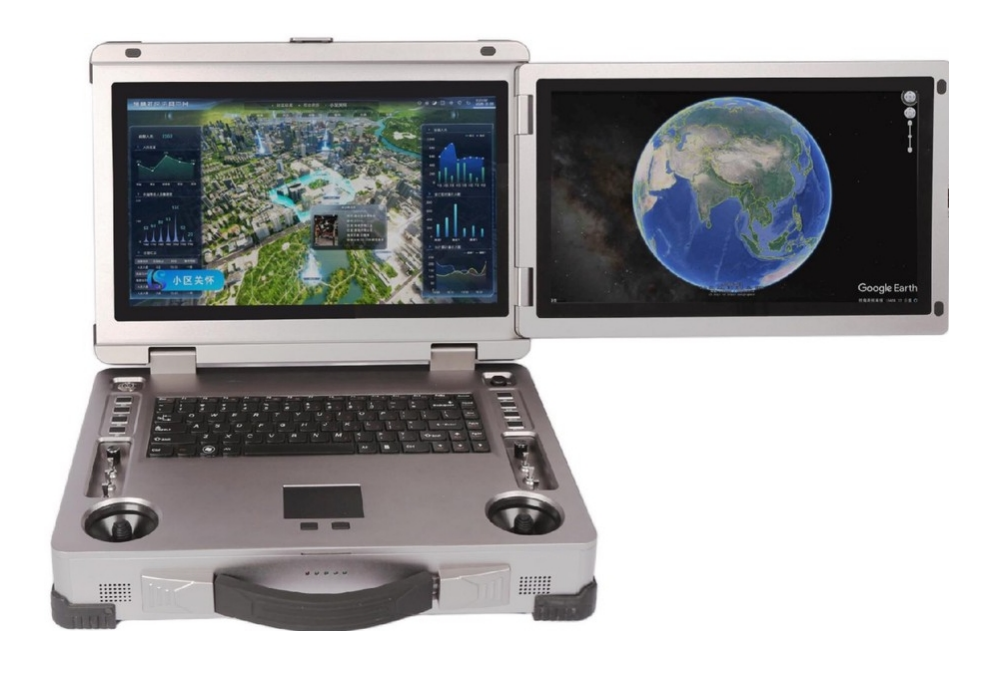

Dual-screen Ground Station
The entire unit is made of aluminum alloy and features silicone anti-slip texture and eight anti-collision corners for more comprehensive protection. All external interfaces are dustproof and waterproof, ensuring safe and reliable operation.
Ground Station Parameters
| Dimensions | 416*330*100 mm | System | Windows 10/Linux |
| Weight | 10 kg | CPU | Intel i7-11 Processor |
| Working Time | 4-6 h | Graphics Card | Intel Iris Xe |
| Operating Temperature | -10 – 60℃ | Screen | 2 *15.6-inch Screens, 1920*1080 Resolution |
| Battery | 266 WH | Touchscreen | 10-point Touchscreen |
Solution
Smart City
Leveraging the advantages of drones, such as flexibility and mobility, efficient coverage, and intelligent recognition, cities can achieve full-area, all-weather urban management, including city appearance monitoring, traffic coordination, and public safety assurance.

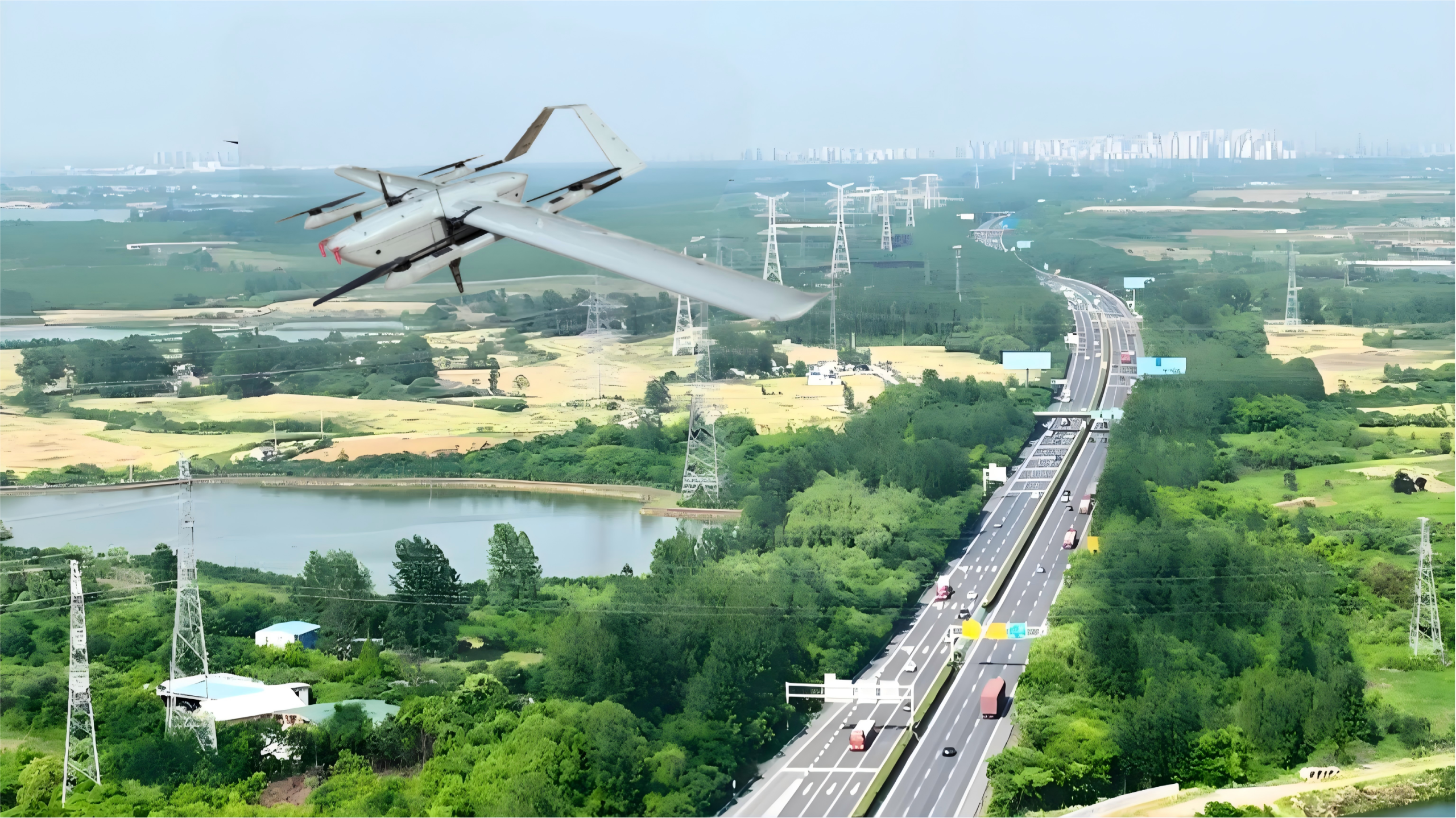

Surveillance & Reconnaissance
Quickly take off to gain a global view, identify congestion points, accident sites and illegal parking, and automatically patrol pollution sources and water environment to conduct ecological assessments
Function Description

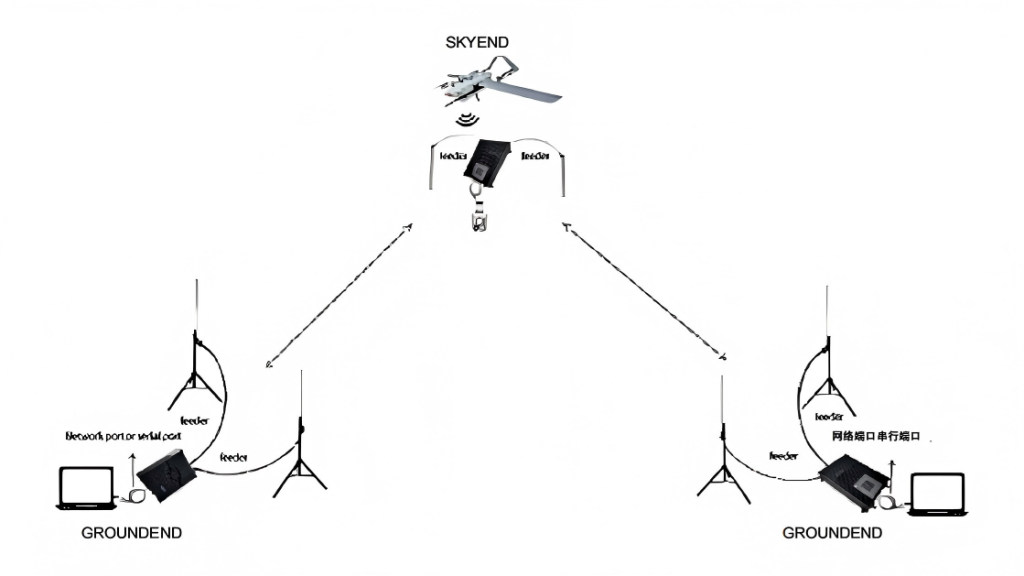

Multi-operator control options
Support remote takeoff and landing, meeting the needs of long-range operations, and have relay flight capabilities.

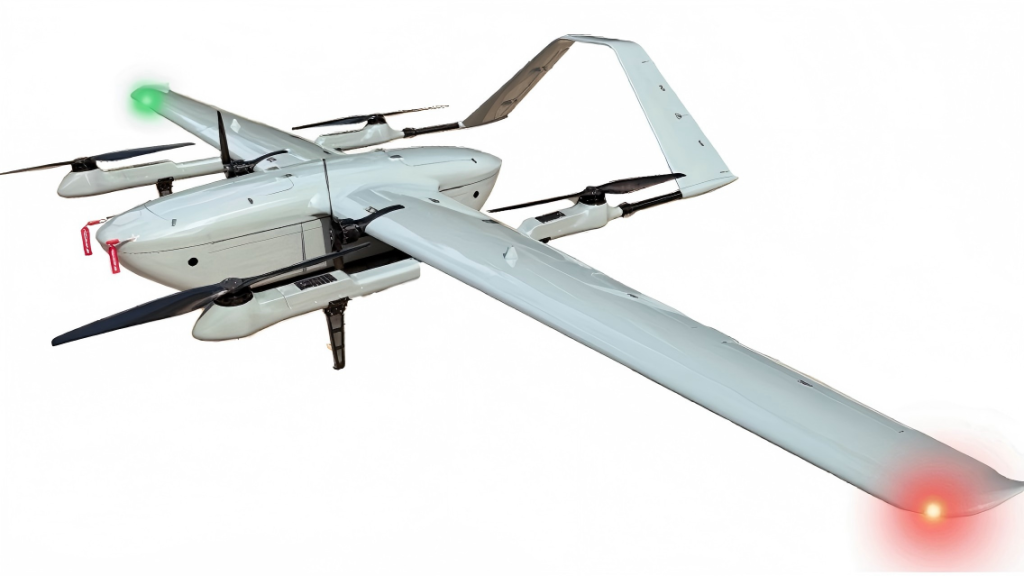

Night flight capability
Equipped with navigation lights and an infrared thermal imaging system, it can perform search and rescue and reconnaissance missions at night. A night vision system is optional for this model.
Mobile Platform Takeoff and Landing (Optional)
Supports takeoff and landing on mobile platforms such as ships and vehicles. After the UAV completes its mission, the flight platform (such as a ship or vehicle) may need to move. In this case, the UAV must have the ability to follow the mobile flight platform and land after completing the mission. This function is particularly useful when vertical takeoff and landing (VTOL) UAVs are performing maritime surveillance or monitoring missions.
Point of Interest (POI) Tracking and Orbiting Capabilities
The UAV selects a target point to track via an AI pod and, guided by the image processing system, autonomously performs target tracking and orbiting operations. Equipped with a laser rangefinder, the system can accurately measure target coordinates within a 3000-meter range.
